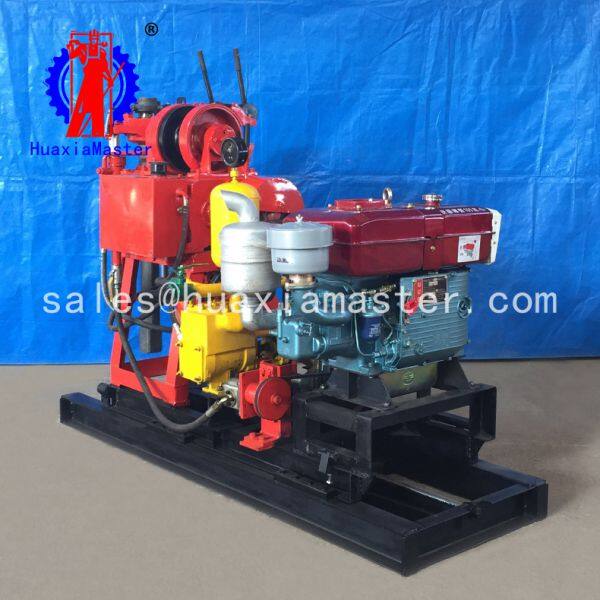

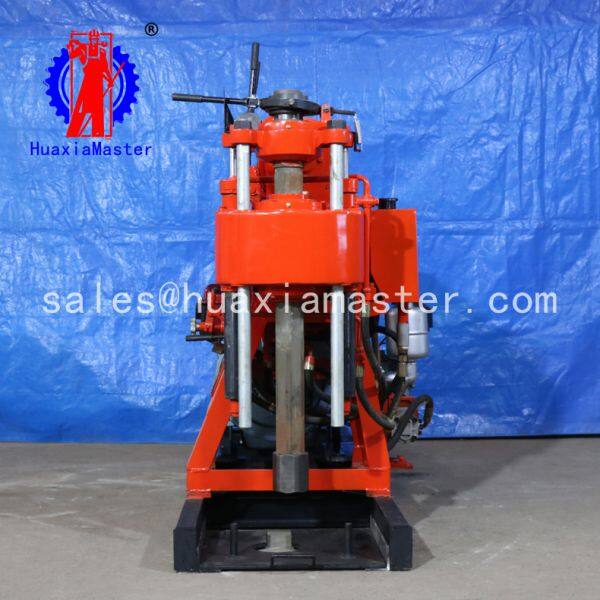

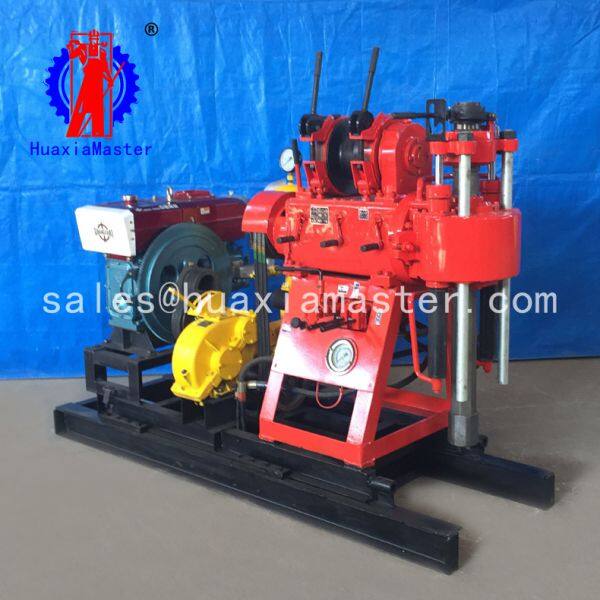

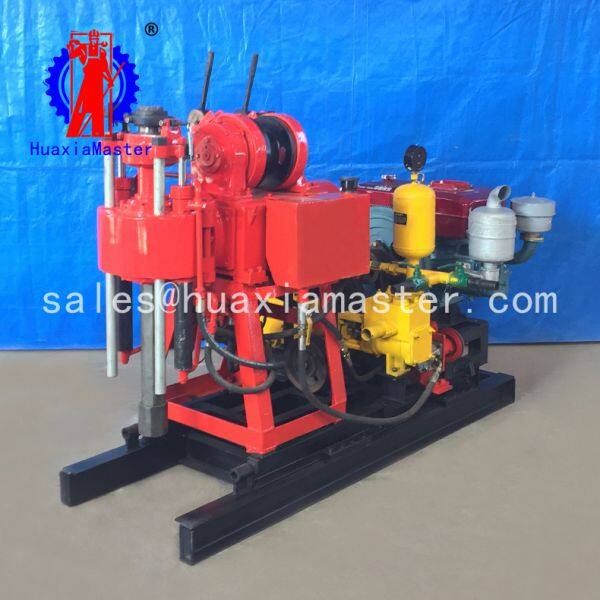

200 Meter Hydraulic Drilling Machine Geological Exploration Core Drilling Rig
- Qingdao
- T/T L/C D/P D/A
- 3 days
You May Like
-
Small Portable Core Exploration Rig QZ-2D Electric Shallow Core Drilling Rig is Simple to Operate and Efficient
-
Hot Sale ! Gasoline Engine QTZ-2 Portable Drilling Rig for Soil Testing and Sampling Soil Exploration Drilling Rig
-
SH30-2A Soil Exploration Drilling Rig 30 Meters of Spt Drilling Rig for Sand and Gold Mine in Mexico for Sale
-
China XY-3 Mining Water Well Core Drilling Rig ,geological Exploration Drilling Rig
-
Hot Selling Borehole Water Well Drilling Machine/trailer Mounted Core Drilling Rig Made Made in China
-
Economical Mining and Quarry Used Borehole Portable Rock Drilling Machine/core Drilling Rig Manufacturers for Sale in Japan
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XY-200 | Type | Core Drilling Rig | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Weight | 760kg | |
| Dimension(L*W*H) | 2.75*0.95*1.60 | Power Type | Diesel | |
| Voltage | 220 | Usage | Water Well | |
| Condition | New | Power(W) | 15kw |
Product Description
1. Application range of XY-200 core drilling rig
Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
2. Parameters of XY-200 core drilling machine
Maximum opening diameter | 400mm |
Maximum borehole depth | 200m |
Diameter of the end hole | 75mm |
Borehole dip angle | 90~75° |
Machine overall size | 2.75*0.95*1.60m |
Drill pipe diameter | 50mm |
Weight of drill rig diameter of drill pipe (without power) | 760kg |
A vertical scroll of painting | |
Shaft rotation speed | 71/142/310/20r/min |
Vertical axis stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 2008Kb |
Drum lifting speed | 17/35/75/160 rm/s |
Wire rope diameter: | 13mm |
Wire rope capacity | 35mm |
Width of sluice | 70mm |
Mud pump | |
Type: horizontal single cylinder double action | flow:180L/min |
Maximum pressure | 1.5Mpa |
Working pressure | 0.7Mpa |
Inlet Size | 50mm |
Outlet pipe diameter | 45mm |
Power | |
Diesel oil | 22HP |
Rated speed | 2200r/min |
Electric machinery | 15kw |
Rated speed | 1460r/min |
