Home > Products > machine tools > Hot Selling Borehole Water Well Drilling Machine/trailer Mounted Core Drilling Rig Made Made in China

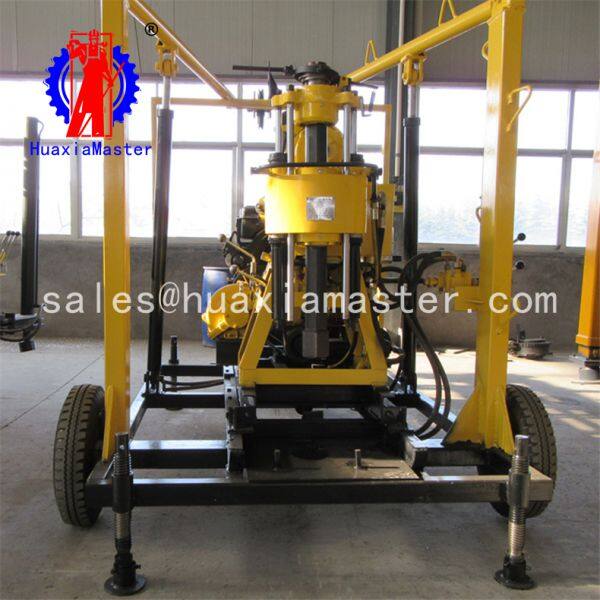

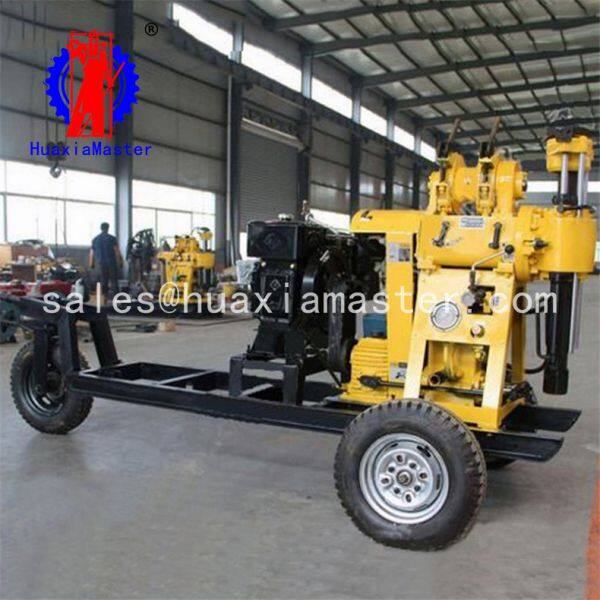

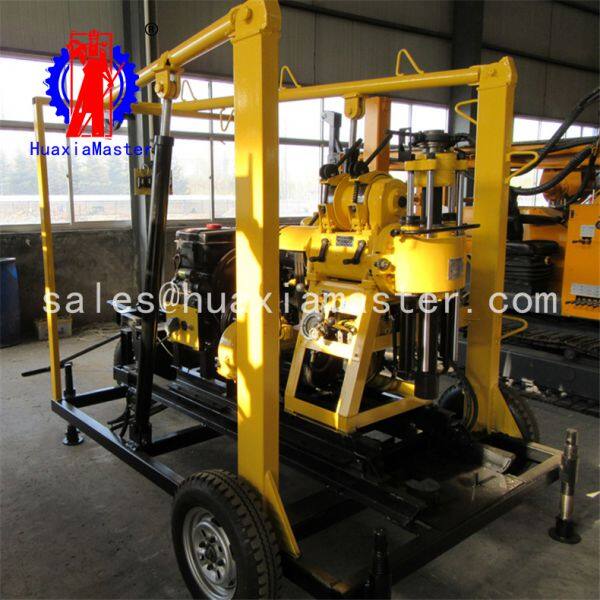

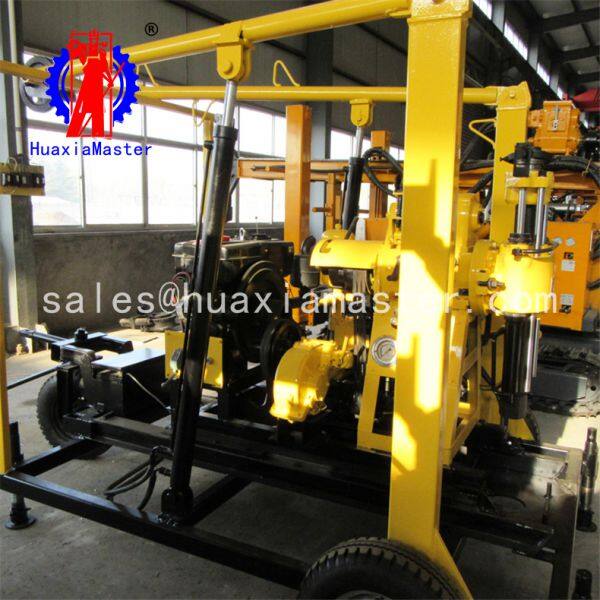

Hot Selling Borehole Water Well Drilling Machine/trailer Mounted Core Drilling Rig Made Made in China
- Qingdao
- T/T L/C D/P D/A
- 3 days
You May Like
-
Economical Mining and Quarry Used Borehole Portable Rock Drilling Machine/core Drilling Rig Manufacturers for Sale in Japan
-
HZ-130YY Fully Hydraulic Drill 130 Meters Drilling Machine Drill Rock and Soil and Sand
-
Low Price China Manufactures Small Core Borehole Deep Water Well Mining Drilling Rig Machine for Sale
-
XYC-200A Full Hydraulic Well Drilling Rig Truck Type Drilling Rig Rural Small Drilling Machinery and Equipment Manufacturers
-
Chinese Portable Hydraulic Crawler Rotary Water Well Drilling Rig Core Drilling Rig Machine for Machine
-
QZ-2A Electric Motor Rock Diamond Core Machine Rock Sampling Drilling Rig For Sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XYX-130 | Type | Rotary Drilling Rig | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Weight | 1600kg | |
| Dimension(L*W*H) | 680*1200*3800 | Power Type | Diesel | |
| Voltage | 220 | Usage | Water Well | |
| Condition | New | Power(W) | 13.2 |
Product Description
1. Application range of XYX-130 wheeled drilling rig
Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil wells and ground temperature central air conditioners.
2.Main features of XYX-130 wheeled hydraulic drilling rig
The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move.
With oil pressure feeding mechanism to improve drilling efficiency.
The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable.
Equipped with pressure gauge at the bottom of the hole to facilitate mastering the hole in the hole.
3.Technical parameters of XYX-130 wheeled drilling rig
XYX-130 wheeled drilling rig | |
Drilling depth | 130m |
Max open hole caliber | 220mm |
End hole caliber | 75mm |
Drilling Rod diameter | 50mm |
Drilling angle | 90°-75° |
Drill weight | 950kg |
Spindle | |
Spindle speed | 142 285 570r/min |
Spindle stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 1600kg |
Single rope lifting speed | 0.41 0.82 1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Wire rope capacity | 27m |
Mud pump | |
Type | Horizontal single cylinder double action |
Displacement diesel engine / motor | 95/77L/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Inlet Size | 30mm |
Outlet pipe diameter | 20mm |
Trigonometric belt | B1575mm |
