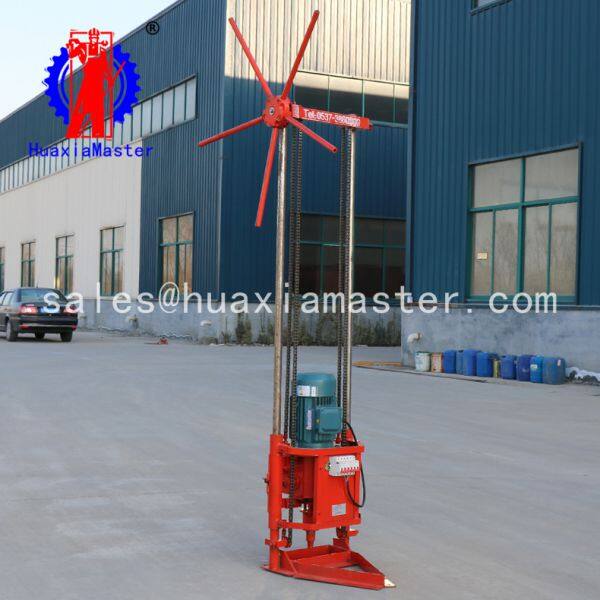

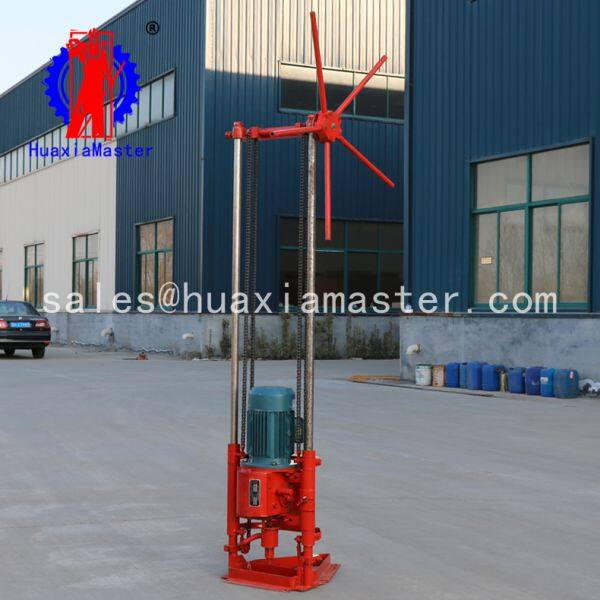

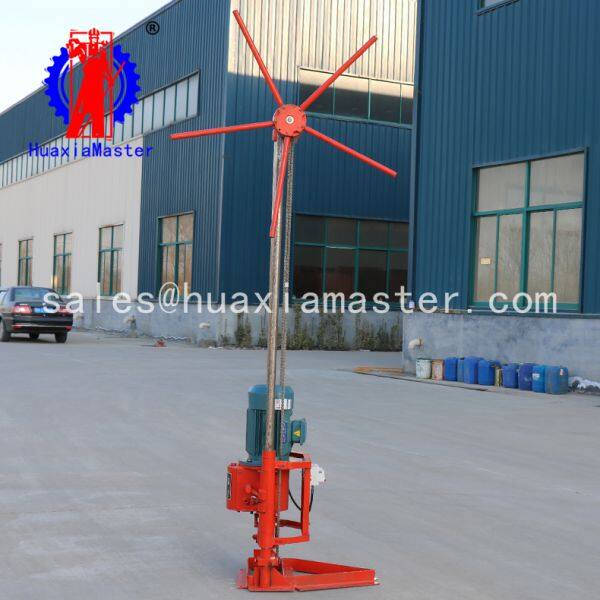

QZ-2A Electric Motor Rock Diamond Core Machine Rock Sampling Drilling Rig For Sale

FOB Price

US$ 4500 - 5000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	QZ-2A	Type	Core Drilling Rig
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	one year	Weight	95
Dimension(LWH)	6004501900	Power Type	Diesel
Voltage	380	Usage	Coal
Condition	New	Power(W)	3

Product Description

1.Brief introduction of QZ-2A type three phase electric sampling drill

QZ-2A type three-phase sampling drill is a kind of portable multi-purpose micro engineering drill produced by Shandong Master Machinery Group Co.,Ltd, it is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geophysical prospecting hole guiding, advanced drilling and grouting holes, embedded hole guiding, broken hole, hole, check out the small home with wells.

2. The technical parameter of QZ-2A type three phase electric sampling drill

QZ-2A three phase electric sampling drill
Borehole diameter (mm)	32-91
Borehole depth（m）	layer 91：10-15m rock 91：5-10m rock 75：10-15m rock 60：15-20m rock 46：20-25m
Drill pipe diameter (mm)	32
Speed（r/min）	185-380
Torque（n.m）	80
Three phase electromotor（kw）	3
Shape size（lwh）	6004501900
Drill weight（kg）	95

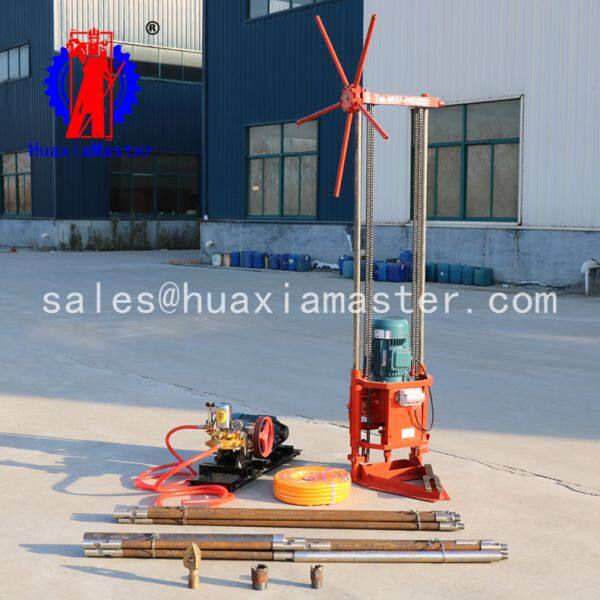

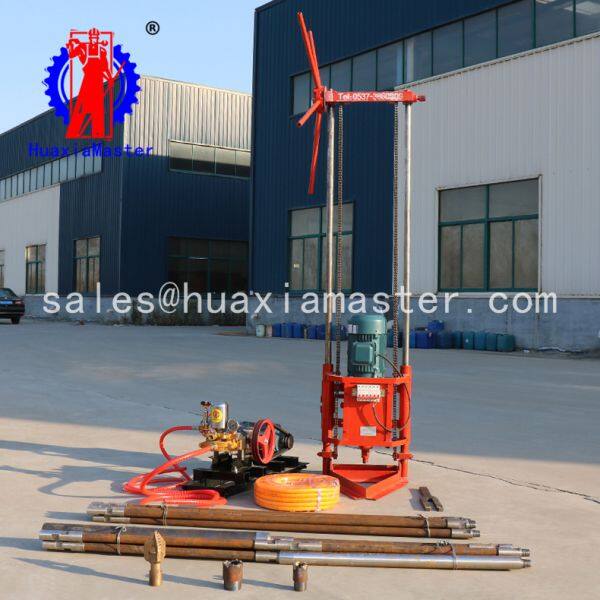

3.The packing list of QZ-2A three phase core drilling rig

Name	Model	Unit	Quantity
Three phase electric sampling drill	QZ-2A	platform	1
Drill pipe	28*1500	root	6
Drill pipe	28*800	root	8
Lock the hand	35	pcs	14
Head	45/35	pcs	1
Core tube	45*800	root	1
Alloy bit	46	pcs	1
Head	58/35	pcs	1
Core tube	58*800	root	1
Alloy bit	60	pcs	1
Scavenging bit	0	pcs	1
Plate fork		hold	1
Water sea type	Y 305010	pcs	4
Oil seal	175010	pcs	2
Driving wheel		set	1

（If you need a wooden base, a high pressure pump, and a high pressure water pipe, please explain）
