Metal Furring Keel Channel House Structure Roll Forming Machine With Punching Hole

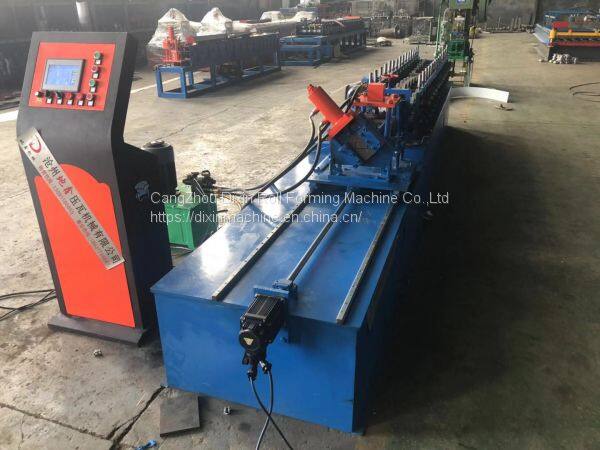

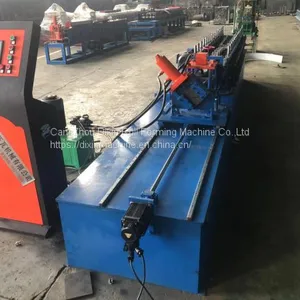

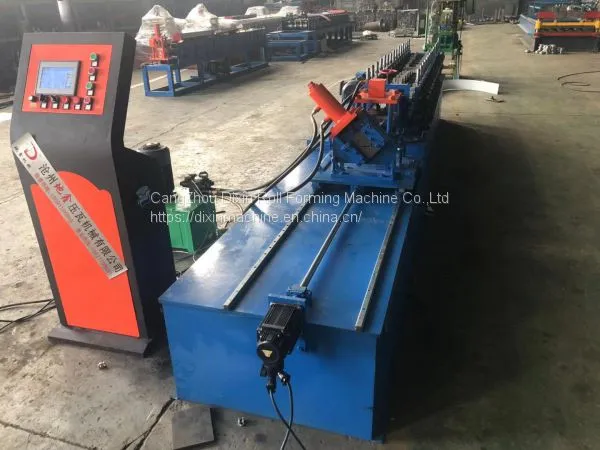

Metal Furring Keel Channel House Structure Roll Forming Machine With Punching Hole photo-1

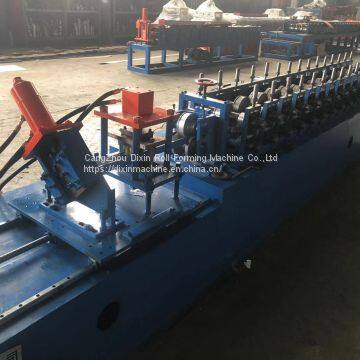

Metal Furring Keel Channel House Structure Roll Forming Machine With Punching Hole photo-2

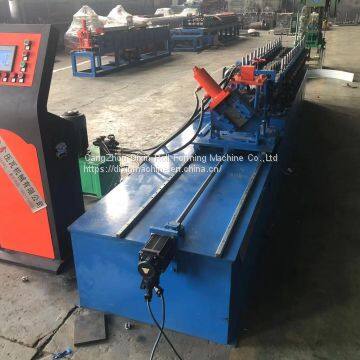

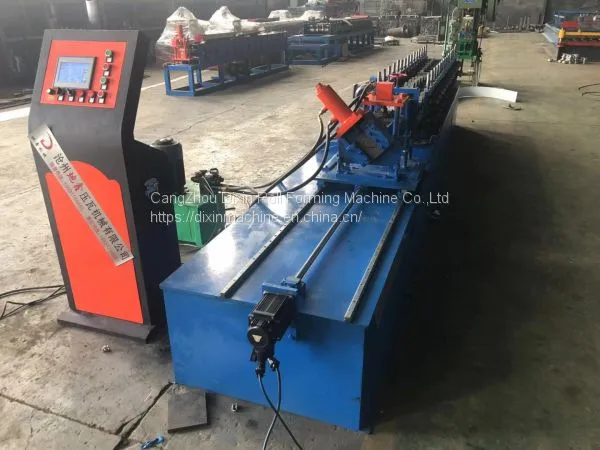

Metal Furring Keel Channel House Structure Roll Forming Machine With Punching Hole photo-3

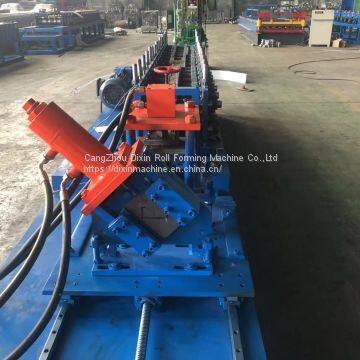

Metal Furring Keel Channel House Structure Roll Forming Machine With Punching Hole photo-4

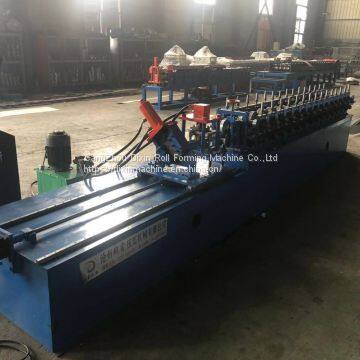

Metal Furring Keel Channel House Structure Roll Forming Machine With Punching Hole photo-5
US$ 7500 - 11000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
25 days
Brand Name Dixin
Place of Origin China
Model Number Customized
Certification ISO,CE
Type Curbstone Block Machine
After-sales Service Provided Overseas service center available
Warranty 1 year
Voltage 380v
Power 5.5kw
Condition New
Automatic Yes
Capacity Hebei
Method Hydraulic Pressure
Processing Brick Cutting Machine
Brick Raw Material Other, Color steel

 Metal furring keel channel house structure roll forming machine with punching hole

1.Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2.Good service: we provide the technical support for whole life of our machines.

3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

6.Reasonable price:We offer the best price in our industry.


Technical Parameters:


Material

Durable Quality Omega Hat Furring Channel Light Steel Keel Cold Roll Forming Machine

Thickness of coil sheet

1.0-2.0mm

Efficiency width

25/30mm

Machine details

Roller material

High grade NO. 45 forged steel with 0.05mm hard chrome plating

Shaft material

High grade NO. 45 carbon wrought steel

Cutting blade

Cr12 mould steel with quenched treatment

Diameter of shaft

70mm or as your requirement

Main frame

300 H steel

Forming steps

16 stations

Productivity

30-35m/min

Hydraulic station power

5.5 KW

Hydraulic pressure

10-12MPa

Appearance size

7700mm*1500mm*1500mm

Hydraulic oil

40# hydraulic oil

Electric tension

380V 50 Hz 3 Phase or as your requirement

Cut Mode

Hydraulic forming after cutting off

Cutter materia

Cr12 Heat Treatment

Electronic control system

PLC, Touch Screen, Encoding counter

Color

Blue, green or yellow or as your requirement

Rolling material

45# steel,roller surfaces polishing, hard plating


Machine components

No.

Name

Qty

1.

De-coiler

1 Set

2.

Roll Forming Machine

1 Set

3.

Punching device

1 Set

4.

Hydraulic Cutting Device

1 Set

5.

PLC Control Box

1 Set

6.

Output table

1 Set



Packaging & Shipping



Packaging Details:

Main machine is nude, the computer control box is packed

with wooden frame.


Main machine is nude in the container, the computer

control box is packed with wooden packaging.

Delivery Detail:

35 days after deposite



Company Information

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.






Our Services

1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now

3). Service: We could send the technician to your country to fix the machine if you need.

4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.


FQA

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5       hours), then we can pick up you.
