Home > Products > core drilling rig > Supply Portable Geological Exploration Drill QZ-2DSelectric Core Drill for Easy and Stable Sampling
Supply Portable Geological Exploration Drill QZ-2DSelectric Core Drill for Easy and Stable Sampling
- QINGDAO
- T/T L/C
- 7 days
You May Like
-
QZ-3 Portable Exploration Sampling Rig Core Sampling Equipment for Geological Exploration Drilling Rig
-
QZ-3 Portable Exploration Sampling Rig Core Sampling Equipment for Geological Exploration Drilling Rig
-
QZ-3 Portable Exploration Sampling Rig Core Sampling Equipment for Geological Exploration Drilling Rig
-
Xy-44a km Crawler Geological Exploration Drilling Rig Sells Ultra-deep Hole Hydraulic Core Drilling Rig With Low Price
-
Xy-44a Core Exploration Rig Hydrologic Water Well Drilling Rig Manufacturers Direct Drilling Rig Price Concession
-
Xy-44a Km-core Drilling Machine Km-rock Coring Rig Geological Exploration Km-hydraulic Drilling Machine View Larger Image Xy-44a Km-core Drilling Machine Km-rock Coring Rig Geological Exploration Km-hydraulic Drilling Machine Xy-44a Km-core Drilling Machi
Product Details
| Brand Name | Huaxia master | Place of Origin | China | |
| Model Number | QZ-2DS | Type | Core Drilling Rig | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 months | Weight | 110KG | |
| Dimension(L*W*H) | 600*650*2330mm | Power Type | Electric | |
| Voltage | 380V | Usage | Coal | |
| Condition | New | Power(W) | 4KW |
Product Description

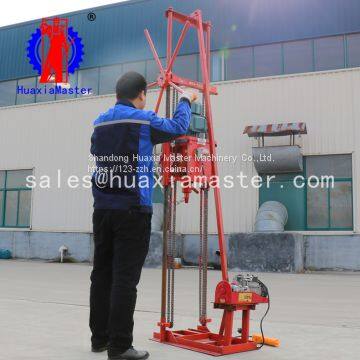

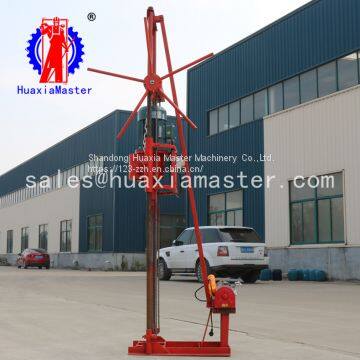

QZ-2DS three phase electric sampling drilling rig
1. Brief introductions of QZ-2DS three phase electric sampling drilling rig
QZ-2DS three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2DS three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2DS three phase electric sampling drilling rig
QZ-2DS three phase electric sampling drilling rig | ||
End hole diameter (mm) | 32-110 | |
Drilling depth(m) | soilφ110:10m soilφ91:10-15m stoneφ91:5-10m stoneφ75:10-15m stoneφ60:15-20m stoneφ46:20-30m | |
Drilling pipe diameter (mm) | 30 | |
Three phase electric engine | power | 4kw |
model | YX3-112M-4 | |
Dimension(l*w*h) | 600*650*2330 | |
Weight(kg) | 110 | |
3. Configuration list of QZ-2DS three phase electric sampling drilling rig
Item | Parameter | Unit | Quantity |
Three phase electric sampling drilling rig | QZ-2DS | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |
Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Pliers | Pair | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |
