Home > Products > water well drilling rig > Family Hydraulic Well Drilling Machine Xy-200 Type Water Well Drilling Rig Diesel Power Drilling Rig

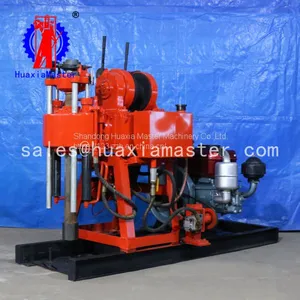

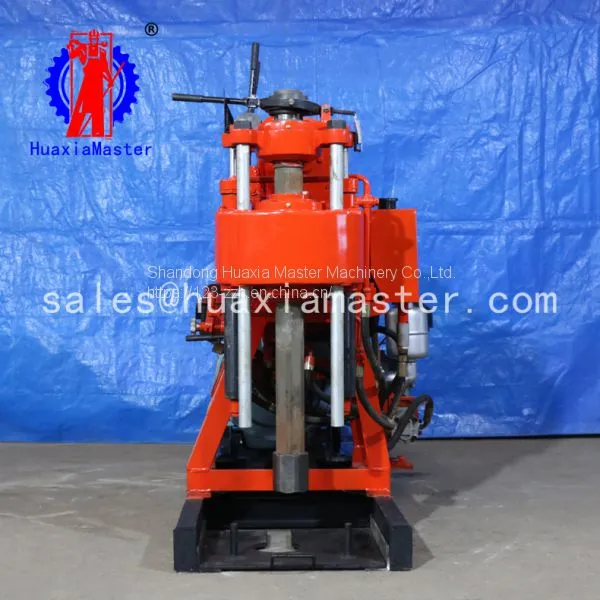

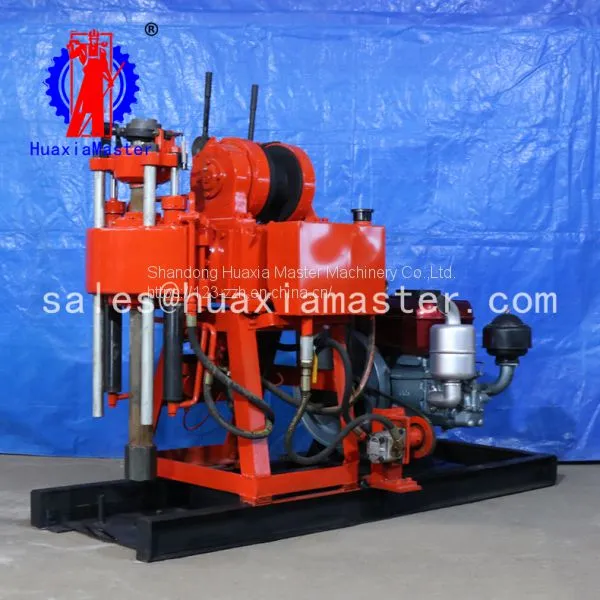

Family Hydraulic Well Drilling Machine Xy-200 Type Water Well Drilling Rig Diesel Power Drilling Rig
US$ 6920 - 6950
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T L/C
- 7 days
You May Like
-
HuaxiaMaster Xy-180 Hydrologic Drilling Rig Geological Exploration Rock Sampling Convenient Fast Genuine Sale
-
Hydraulic Exploration Drilling Rig Xy-180 Geological Exploration Core Sampling Drilling Rig 180 m Large Diameter Drilling Rig
-
Xy-150 Core Drilling Rig Full Hydraulic Integrated Drilling Rig Crawler Type Engineering Geological Drilling Rig
-
XY-150 Drilling Machine Small Surface Drilling Rig Huaxia Master High-speed 100 Meters Rig Manufacturers Supply
-
High Quality Supply Xy-130 Crawler Well Drilling Rig Fast Drilling Rig Well Drilling Rig High Quality And Inexpensive
-
XY-130 Hydraulic Core Exploration Engineering Drilling Rig Portable Mine Geological Exploration Rig Water Well Drilling Rig
Product Details
| Brand Name | Huaxia master | Place of Origin | China | |
| Model Number | XY-200 | Type | Other | |
| Certification | ISO9001 | After-sales Service Provided | Overseas service center available | |
| Warranty | 6 months | Weight | 760kg | |
| Dimension(L*W*H) | 2.75*0.95*1.60m | Power Type | Diesel | |
| Voltage | 380V | Usage | Water Well | |
| Condition | New |
Product Description
1. Parameters of XY-200 hydraulic water well drilling rig
Maximum opening diameter | 400mm |
Maximum borehole depth | 200m |
Diameter of the end hole | 75mm |
Borehole dip angle | 90-75° |
Machine overall size | 2.75*0.95*1.60m |
Drill pipe diameter | 50mm |
Weight of drill rig diameter of drill pipe (without power) | 760kg |
A vertical scroll of painting | |
Shaft rotation speed | 71/142/310/20r/min |
Vertical axis stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 2008kb |
Drum lifting speed | 17/35/75/160 rm/s |
Wire rope diameter: | 13mm |
Wire rope capacity | 35mm |
Width of sluice | 70mm |
Mud pump | |
Type: horizontal single cylinder double action | flow：180L/min |
Maximum pressure | 1.5mpa |
Working pressure | 0.7mpa |
Inlet size | 50mm |
Outlet pipe diameter | 45mm |
Power | |
Diesel oil | 22hp |
Rated speed | 2200r/min |
Electric machinery | 15kw |
Rated speed | 1460r/min |
