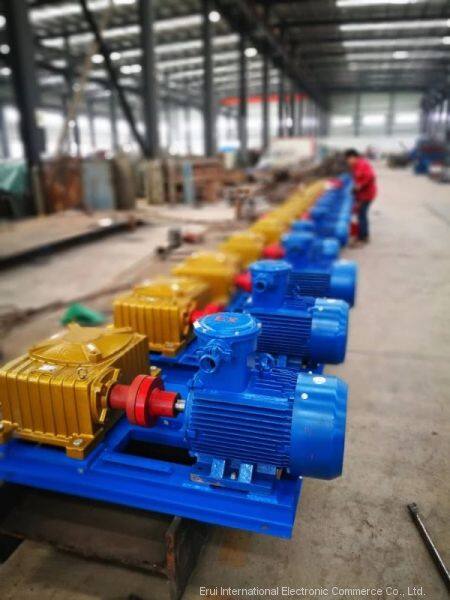

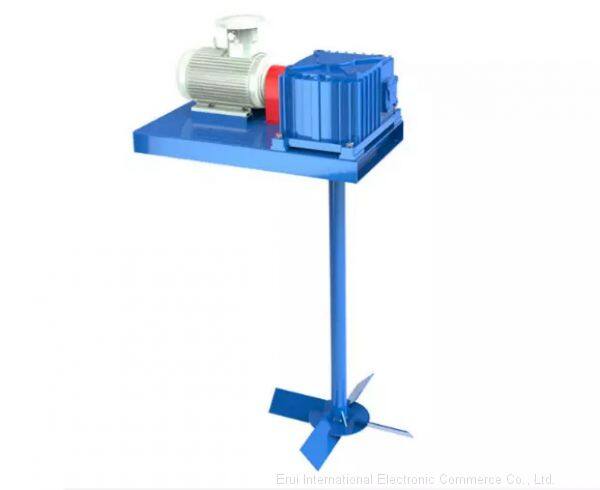

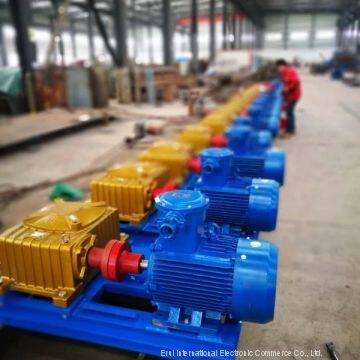

Mud Agitator for Desander and Desilter With Ex-proof
Electric Mud Agitator for desander and desilter
Features of Mud Agitator:
1. Helical-bevel gearbox
2. Explosion-proof electric motor
3. Able to process 20 ppg drilling fluids
4. Power available ranging from 2.2 to 22KW
5. Compact, quiet, smooth and easy to maintain
| Agitator Model | MA55 | MA75 | MA110 | MA150 | MA220 |
| Motor Power kW/HP | 5.5/7.5 | 7.5/10 | 11/15 | 15/20 | 22/30 |
| Impeller Speed RPM | 72 | 72 | 73 | 73 | 73 |
| Impeller Diameter mm/in | 600 /23.6 | 750 /29.5 | 850 /33.5 | 900 /35.4 | (1000/900) (39.4/35.4) |
| Ration | 20:1/25:1 | 20:1/25:1 | 20:1/25:1 | 20:1/25:1 | 20:1/25:1 |
| Dimension mm/in | (1020x660x560) (40.2x23.6x22) | (1060x600x604) (41.7x23.6x23.8) | (1200x640x673) (47.3x25.2x26.5) | (1290x710x685) (50.8x28x27) | (1428x860x705) (56.3x33.9x27.8) |
| Power | 380V/50Hz or 460V/60Hz Or Customized | ||||

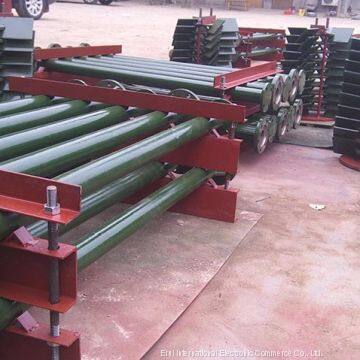

| Shaft Length | According to tank depth | ||||
