API Oil Pumping Unit

API Oil Pumping Unit thumbnail-1

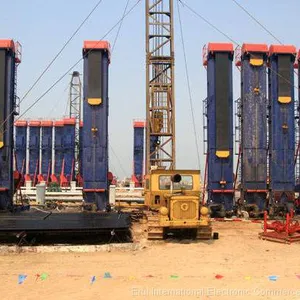

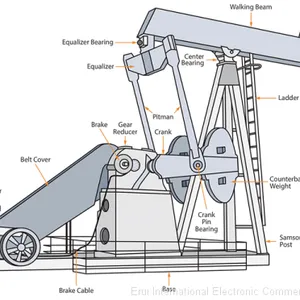

API Oil Pumping Unit thumbnail-2

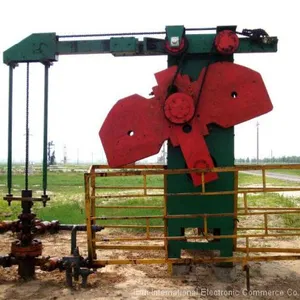

API Oil Pumping Unit thumbnail-3
API Oil Pumping Unit thumbnail-4
API Oil Pumping Unit thumbnail-5
API Oil Pumping Unit photo-1
API Oil Pumping Unit photo-2

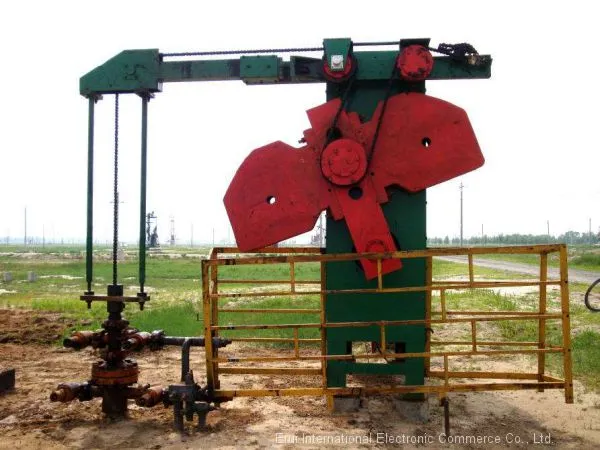

API Oil Pumping Unit photo-3
API Oil Pumping Unit photo-4

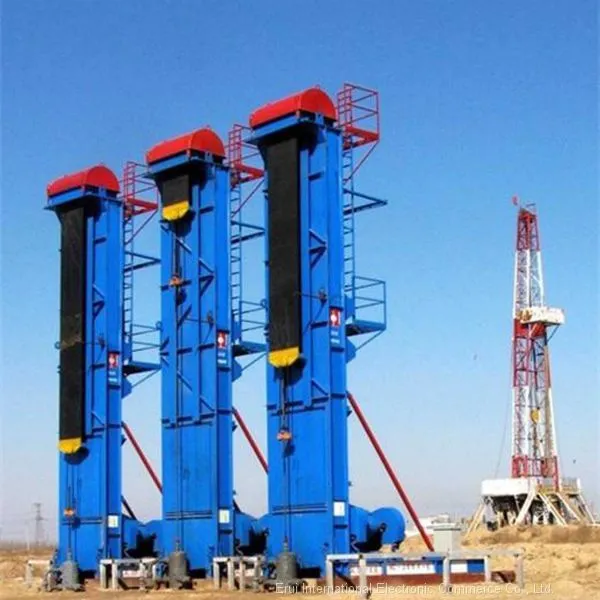

API Oil Pumping Unit photo-5
US$ 500 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ERUI
Place of Origin:
China
Model Number:
C57D-76-54TH
Contact Supplier Request Quote Chat Now
Erui International Electronic Commerce Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ERUI
Place of Origin China
Model Number C57D-76-54TH
After-sales Service Provided Overseas service center available
Weight 2-20 Tons
Production Capacity 1000
Voltage 380V/220V
Condition New
Product Description



Newly developed API F pumping units without walking beams are lower, foldable and flexibly driven power units newly applied in rod production on oil fields.
Products comply with Specifications of Pumping Units (API Spec 11E) and other related standards, and have acquired the authorization to use Official API Monogram.

Technical Performance & Characteristics
1. Rollers and belts are adopted to provide flexible driving, reduce impact loads and extend the service life of reducers.
2. Unique out phase cranks are adopted to achieve absolute balance and enhance energy-saving effects.
3. The reducers are driven by symmetrical split involute herringbone wheels that are properly sealed and distinguished with low noise, smooth operation, reliable and durable service.
4. The entire machine is small in mass and volume, lower, foldable and convenient in installation and transportation.
5. Products are distinguished with compact structure, easy operation and maintenance, and high performance price ratio.

Technical parameter

Model Reducer Rating   Structure Capacity Max.Stroke Length  Unit Weight
(103 in-lbs) (102lbs) (in)       (t)
C-1280-305-240 1280 305 240 40.5
C-1280-365-192
365 192 39.5
C-1280-365-192 912 365 192 37
C-912D-365-168

168 35
C-912D-365-144

144 31.5
C-912D-305-192
305 192 36
C-912D-305-168

168 34
C-640D-365-168  640 365 168 31
C-640D-365-144

144 29
C-640D-365-120

120 26.5
C-640D-305-168
305 168 29
C-640D-305-144

144 27
C-640D-305-120

120 25.5
C-640D-256-144
256 144 24.5
C-640D-256-168

168 27.5
C-456D-365-120 456 365 120 27
C-456D-305-168
305 168 27
C-456D-305-144

144 26
C-456D-305-120

120 24.5
C-456D-256-144
256 144 23.5
C-456D-256-120

120 22
C-456D-256-100

100 20.2
C-456D-213-120
213 120 21
C-320D-305-100 320 305 100 20
C-320D-256-144
256 144 22.5
C-320D-256-120

120 21.2
C-320D-256-100

100 19.5
C-228D-246-86 228 246 86 16.5
C-228D-213-86
213 86 15.5
C-228D-213-120

120 18
C-228D-213-100

100 17
C-228D-200-74
200 74 15
C-228D-173-74
173 74 14


Product Tags: conventional beam pumping unit , Oil Beam Pumping Units for Sale , Pump Jack , API 11E Oil Well Crank Beam Pumping Balance Unit
