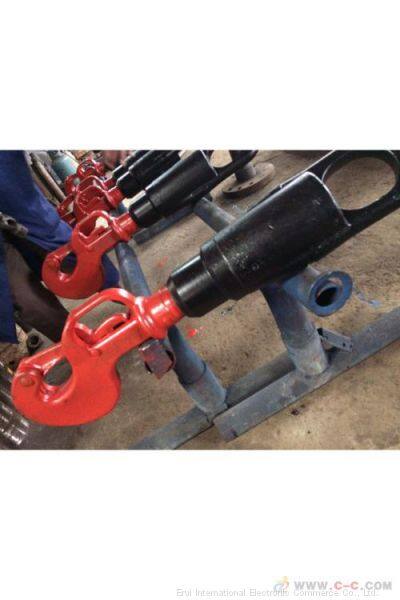

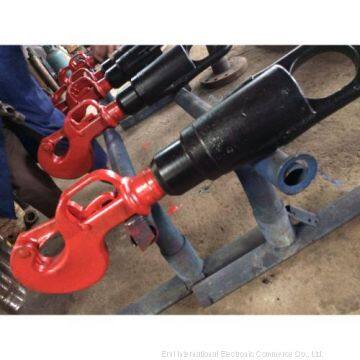

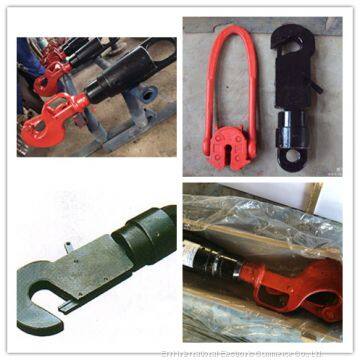

Product Name: Sucker Rod Hook

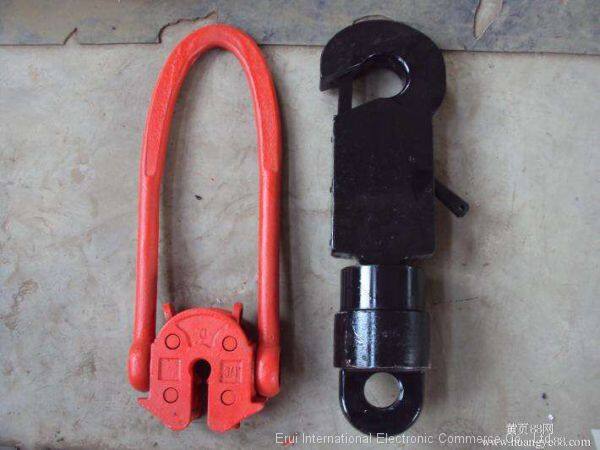

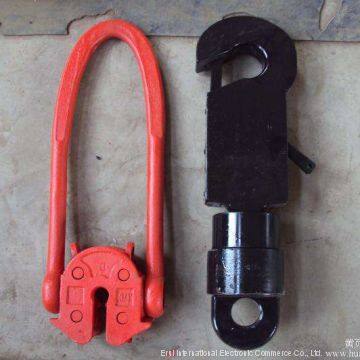

RH suck rod hook is composed of hook, bail and locking assembly. The bail of suck rod is able to get into the hook without opening the locking arm. After the bail is on right place, locking arm reset (preventing the bail of suck rod get out of hook) under the function of spring which ensures the lifting safety of suck rod hook. In addition, put a bush on the spring in case the something gets into the locking assembly and get the locking assembly lost the function.
Main Technical Parameter
Type |
RH-20 |
RH-25 |
RH-35 |
|
Max Related Load |
20 tons(180kN) |
25tons(225kN) |
35tons(315kN) |
|
Hook Open Dimension |
1.7/8 in(47.6mm) |
1.7/8in(47.6mm) |
1.7/8in(47.6mm) |
Caution
1,Don’t allow the suck rod hook to be used beyond the Max related load and shall be used below -20°C.
2,Don’t allow the using of suck rod hook with the function of locking assembly.
3,Regularly add the grease into the grease hole of bail.
4,Hook body and bail is alloy cast steel, don’t allow to be welded.
5,The maintain of suck rod hook should be conformed to API RP 8B.
Transportation and packing
1, Be avoiding the bump and rain during the transportation of suck rod hook.
2, The suck rod hook should be placed into the dry and ventilating site, don’t allow getting a contact with acid, alkali and saline material.
We also can supply Manual Tong, Elevator, Slips, Spiders ect handling tools.
For information, please contact me . Skype : chenfeng8377
