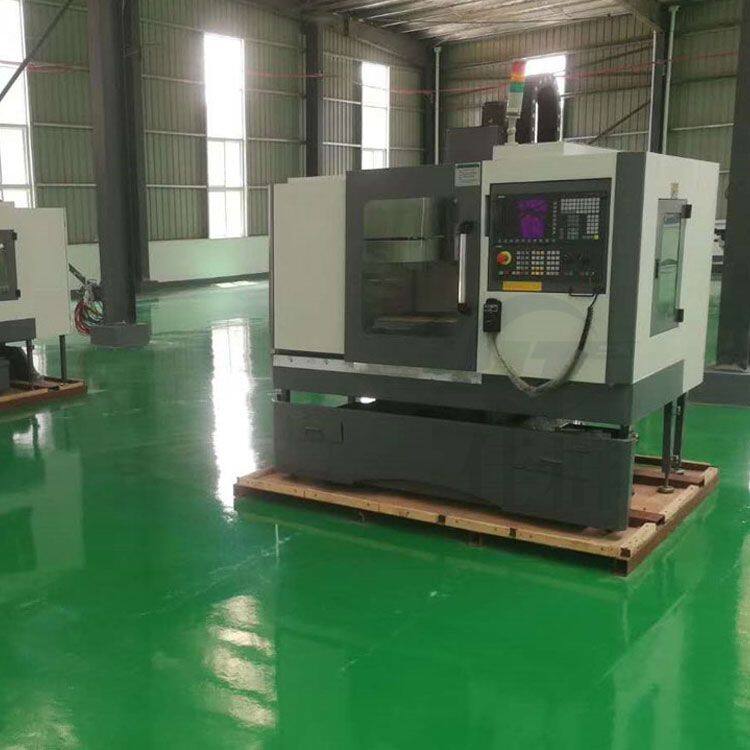

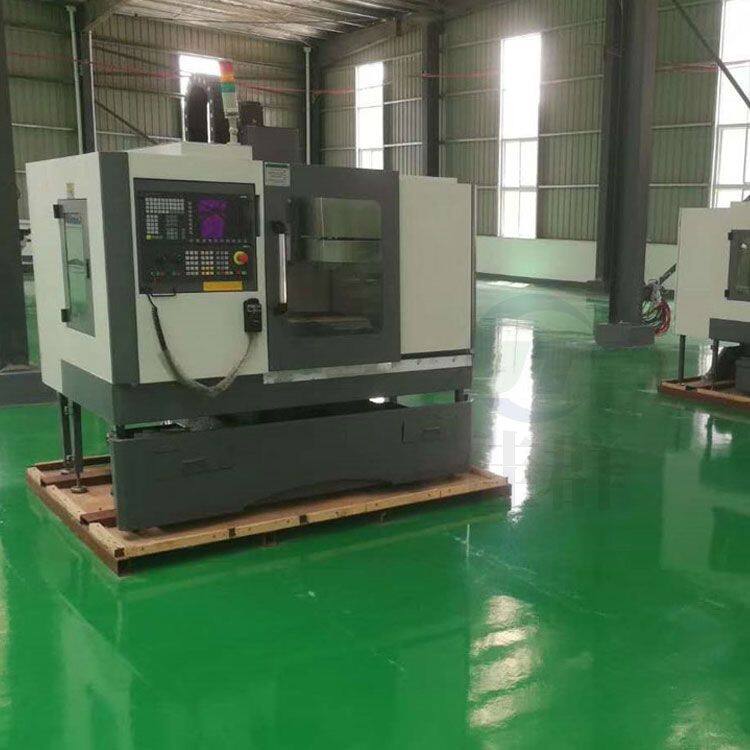

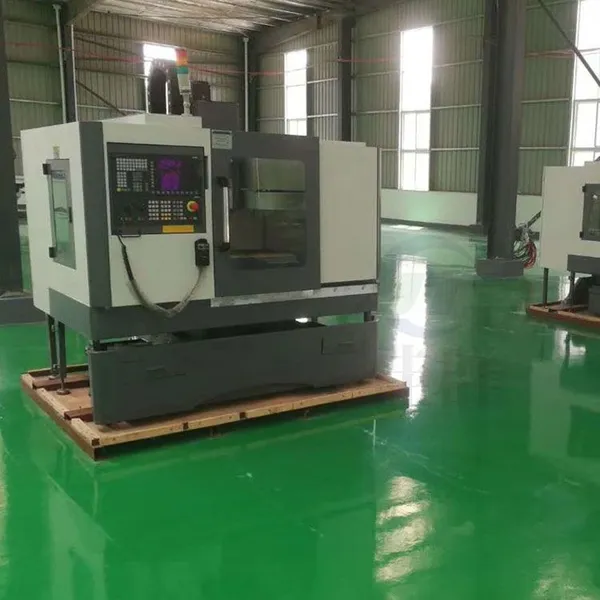

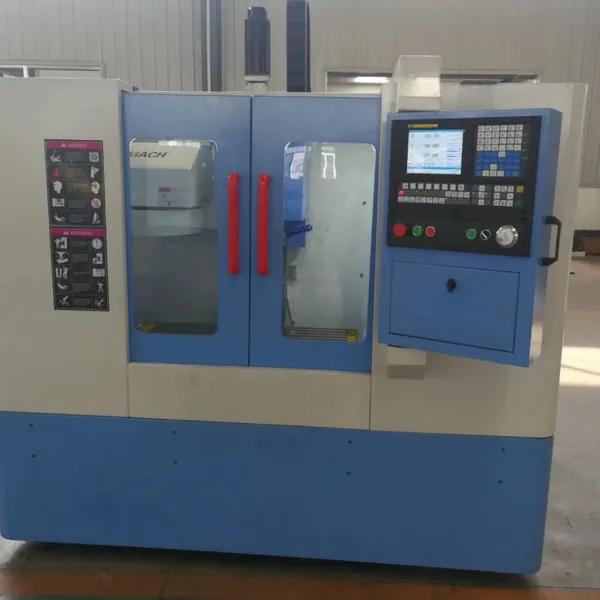

Small Machining Center|vertical Machining Center

FOB Price

US$ 15000 - 16000 / Box

1 Box(Min. Order)

Port qingdao
Payment TermsT/T PayPal Other
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yurun	Place of Origin	China
Model Number	VMC650	Type	Vertical
After-sales Service Provided	No overseas service provided	Weight	4000
Dimension(LWH)	2400x2000x2550	Voltage	220
Condition	New	Power(W)	7500

Product Description

Standard configuration :

KND1000 control system

Lubricating system

Manual chip conveyor

Optional configuration :

Control system :KND,GSK,Siemens etc.

Chain type automatic chip conveyor

The forth axis

Spindle center water outlet ,spindle oil coolant

The main performance characteristics：

1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system

Application：

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency

Product main technical specifications:

specifications	unit	VMC650
Table size	mm	800x400
X axis travel	mm	650
Y axis travel	mm	400
Z axis travel	mm	500
Distance between spindle center and column surface	mm	469
Distance between spindle nose and table surface	mm	100-600
T slot		3-18*125
Spindle taper	mm	BT40
Max. spindle speed	r/min	8000(10000 optional)
Main motor power	kw	5.5
X/Y/Z axis servo motor torque	N.M	10/10/15
X/Y/Z motor connection		direct
X/Y/Z guide rail form		3 axis linear guide rail
Max.table load	kg	550
Automatic tools changer		16 Armless type(optional:24 arm type)
Max.tool weight	kg	7
Max. tool length	mm	250/350
Max. tool diameter	mm	100(Adjacent)/150(Apart)
X/Y/Z axis rapid traverse	M/min	24(optional :48)
Cutting feed speed	M/min	10
Position accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Machine dimension	mm	2400x2000x2550
Machine weight	kg	4000
