trapezoidal Cold Roll Forming Machine roof sheet metal forming machine
Summary
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 17+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 10-15m/min;
5). Very easy to install and operate the roll forming machine.

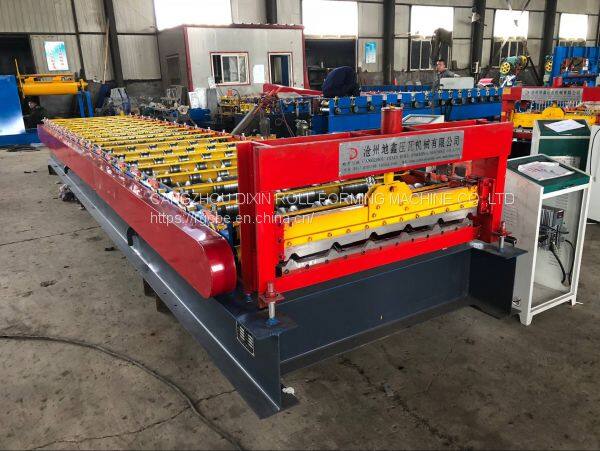

1.Panel drawing according to your request

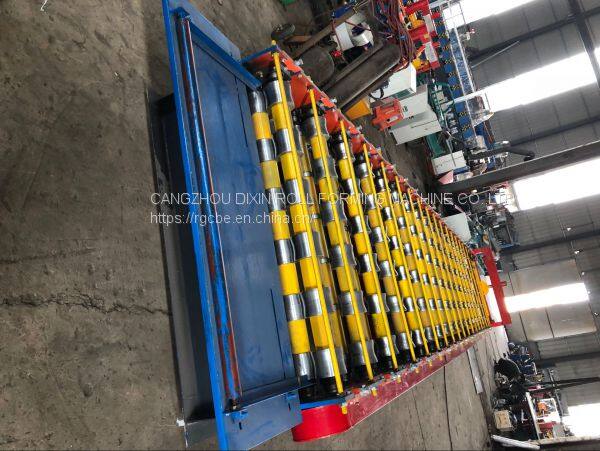

2.some machine pictures for your reference.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High precesion to control the tile length and pieces.
4) Running in a high automatization and intellectualization,no pollution
3.Machine Technique parameters
Basic Technical Parameters (any can be changed as customer requirement) | ||
1. |
Model |
Roof panel roll forming machine |
2. |
Dimention(mm) |
6500*1200*1300(length*width*height) |
3. |
Weight |
3500KGS |
4. |
Forming roller steps |
15 or as customer requirement |
5. |
Diameter of shaft |
80mm or 80mm or as customer need |
6. |
Working speed |
8-12m/min (can be faster by adding hydraulic motor |
7. |
Main motor |
4KW |
8. |
Hydraulic pump motor |
4KW |
9. |
voltage |
380V/3Phase/ 50HZ or as customer need |
10. |
Control system |
PLC with color touch screen |
11. |
Main structure |
350H steel |
12. |
Chain |
1’’ or double 0.6’’ |
13. |
Shear blade |
CR12 with quenched treatment 60-62 |
14. |
Roller material |
45# steel with heat treatment |
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
Component
NO. |
Item |
Unit |
Qty |
1 |
Manual decoiler |
set |
3 |
2 |
Main roll forming machine |
set |
1 |
3 |
PLC control box |
set |
1 |
4 |
Supporter table |
set |
1 |
Workflow
Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table
1. Cutting press is 20 tons
2. Blade and mold material:GCR12steel with quenched treated 60-62℃
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system
Hydraulic Station
2. Roller station: 11-16(depends on final design)
3. Thickness of feeding material:0.3-0.8mm
2. Automatic length measurement
3. Automatic quantity measurement
4. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
5. Length inaccuracy can be amended easily.
2 Steel coil width: 1300mm
4 Coil placement in the coil holder: hydraulic hoist
5 Working speed: 0-15m/min adjustable
