Building Material Trapezoidal Metal Roof Sheet Roll Forming Machine

FOB Price

USD $5800 - $7800 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port botou city
Payment Terms:T/T L/C Cash
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	DIXIN	Place of Origin:	China	Model Number:	as machine
Use:	Roof	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas
Warranty:	1 YEARS	Weight:	3TON	Dimension(LWH):	650015001300MM
Production Capacity:	061000	Condition:	New	Voltage:	380v,3phase
Power(W):	4+4KW	Type:	Tile Forming Machine	Tile Type:	Colored

Product Description

Building Material Trapezoidal Metal Roof Sheet Roll Forming Machine

The advantage of IBR sheet includes beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

1.Panel drawing according to customers request

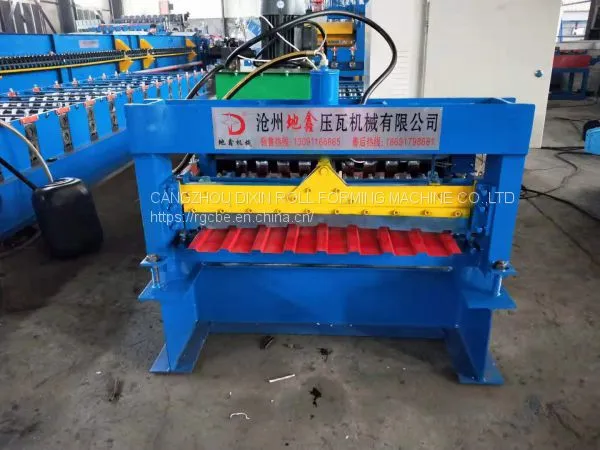

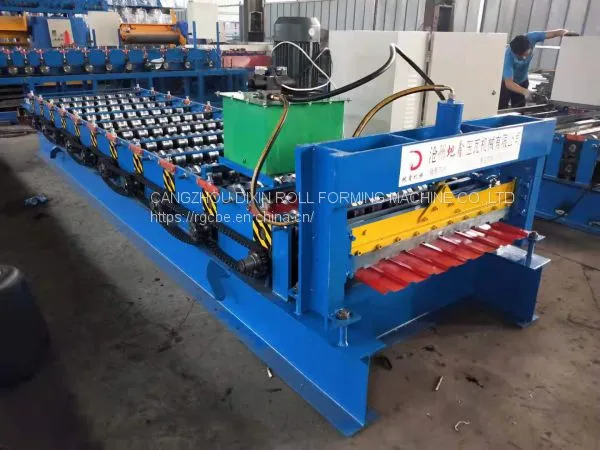

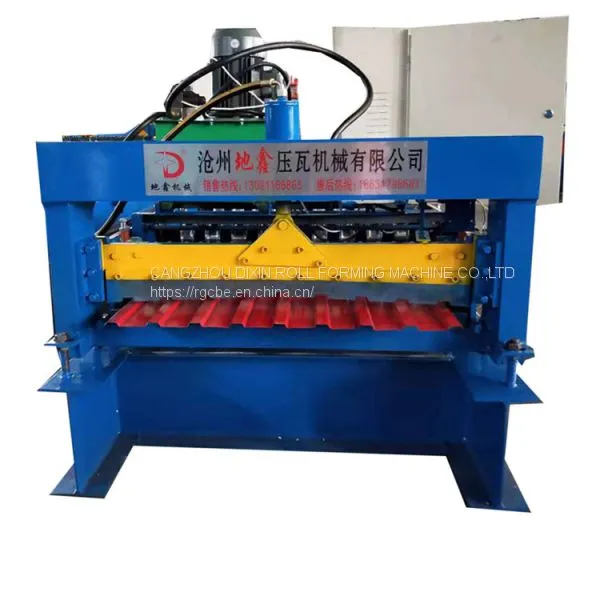

me machine pictures

3.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	As design or customer request
4.Effective width	As design or customer request
5.Main motor power	4kw
6.Pump station power	4kw
7. Shaft diameter	75mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	(Taiwan brand)Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 680014001400mm
17. Machine weight	About 3ton
18.Power supply	380v,3phase,50hz or accodring to customer request

Packing and shipping

Standard export packing and delivery
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

customer visit

If you want to know about more details about our machine ,Please Contact Bella Mobile /what'sapp/Wechat :8618231723279

(I can provide you a top quality with a good price )

Contact Us

CANGZHOU DIXIN ROLL FORMING MACHINE CO.,LTD: Contact nameBella Su; AddressBotou city Cangzhou,Hebei
