Used Metal Roof Sheet Roll Forming Machine

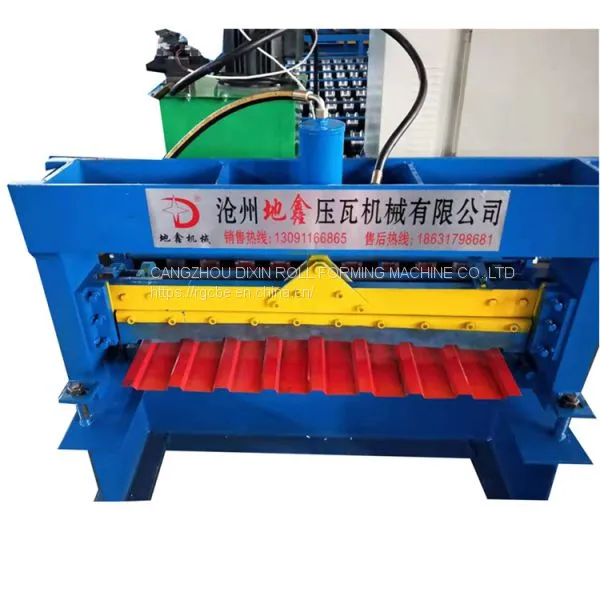

Used Metal Roof Sheet Roll Forming Machine photo-1
Used Metal Roof Sheet Roll Forming Machine photo-2
Used Metal Roof Sheet Roll Forming Machine photo-3
Used Metal Roof Sheet Roll Forming Machine photo-4
Used Metal Roof Sheet Roll Forming Machine photo-5
US$ 5800 - 7800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DIXIN
Place of Origin:
China
Model Number:
as machine
Payment & Shipping
Payment Methods:
Port of Shipment:
botou city
Delivery Detail:
30 days
Brand Name DIXIN
Place of Origin China
Model Number as machine
Use Roof
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 YEARS
Weight 3TON
Dimension(L*W*H) 6500*1500*1300MM
Production Capacity 061000
Condition New
Voltage 380v,3phase
Power(W) 4+4KW
Type Tile Forming Machine
Tile Type Colored

Used Metal Roof Sheet Roll Forming Machine

We can provide oversea after sales. Our engineers have been to Chile, Nicaragua, Indonesia, Russia, Saudi Arabia, Singapore, and other countries for installation and training. Considering the time difference, we can offer online instant viedo to help customer to solve problems.

1.Panel drawing according to customers request

me machine pictures


3.Equipment detailed parameters:

1.Processing material

aluzinc/galvanized steel/colored steel coil

2.Material thickness

0.3-0.8mm

3.Feeding width:

As design or customer request

4.Effective width

As design or customer request

5.Main motor power

4kw

6.Pump station power

4kw

7. Shaft diameter

75mm

8.Forming steps

13steps

9.Main frame

300H Steel frame

10. Side plate thickness

16mm

11.Roller material

45# forged steel, with hard chrome plating

12.Control systerm

(Taiwan brand)Delta PLC control system with touch screen

13.Cutting blade material

Cr12

14.Working speed

About 10-12m/min

15. Transmission way

1 inch chain drive

16. Machine size (mm)

About 6800*1400*1400mm

17. Machine weight

About 3ton

18.Power supply

380v,3phase,50hz or accodring to customer request

Packing and shipping

 Standard export packing and delivery
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

customer visit

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.


B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?

Yes, please tell me the destination port or address.we have rich experience in transport.

6. You are Trade Company or factory?

We are manufacturer.

7. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.

8. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.


If you want to know about more  details about our machine ,Please Contact Bella Mobile /what'sapp/Wechat :8618231723279

(I can provide you a top quality with a good price )
