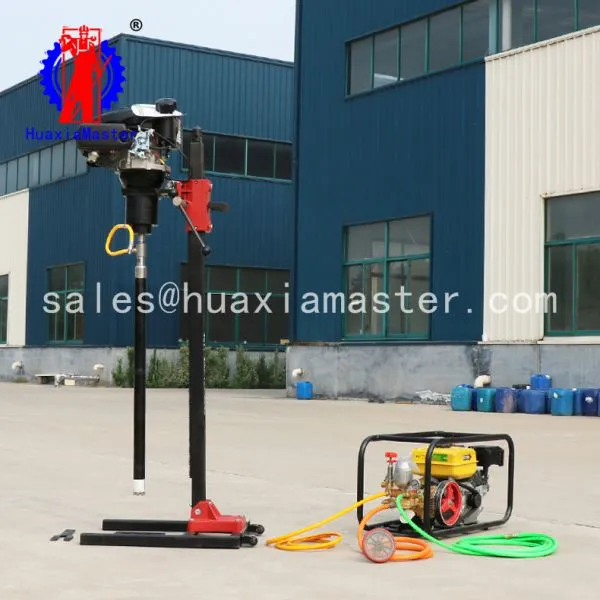

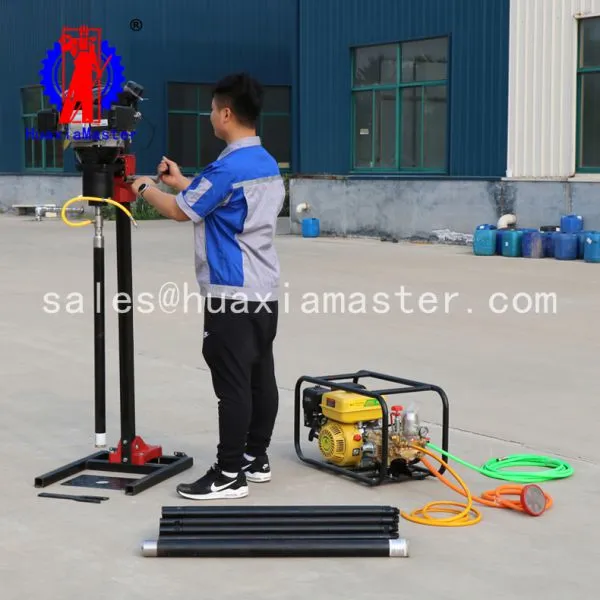

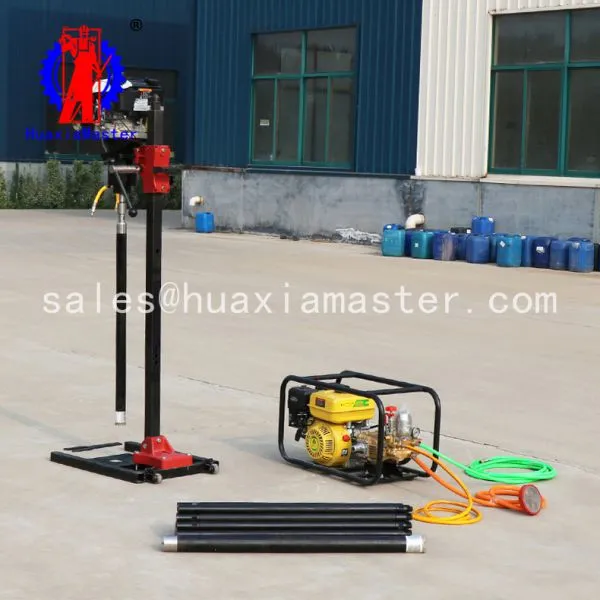

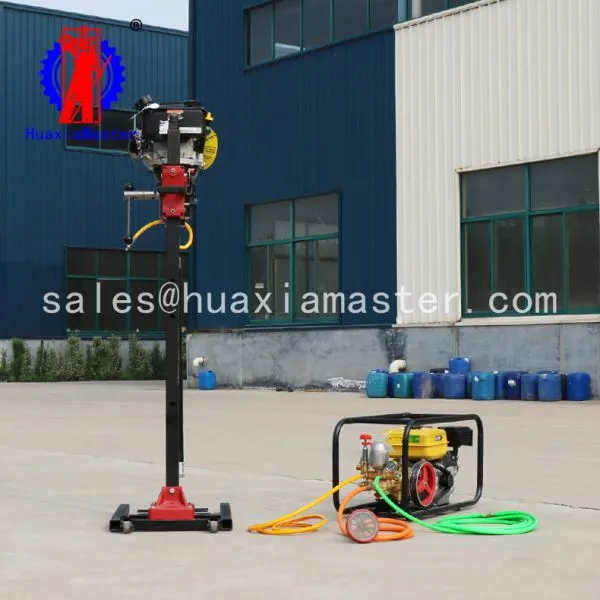

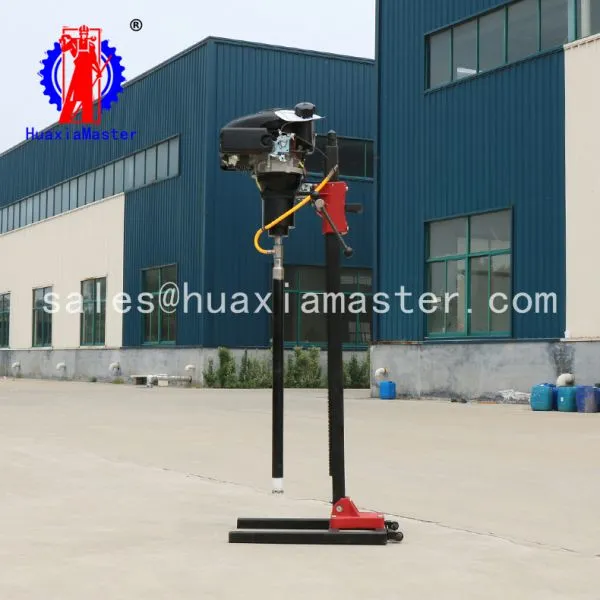

BXZ-2L vertical backpack core drilling rig
1. Brief introduction of BXZ-2L vertical backpack core drilling rig
BXZ-2L vertical backpack core drilling rig is a removable core sample drilling rig. The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, water conservancy engineering survey, highway engineering survey and so on.
The main features of BXZ-2L vertical backpack core drilling rig are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame. Field operation is more convenient and safe.
2. Specifications of BXZ-2L vertical backpack core drilling rig
BXZ-2L vertical backpack core drilling rig | |
Engine brand |
Kohler |
House power |
7.75 HP |
Fuel tank capacity |
1400 ML |
Transmission mode |
gear-driven |
Starting mode |
recoil pull starter |
Clutch mode |
automatic clutch |
Coring mode |
rotary |
Rate of penetration |
540r /min |
Gear ratio |
7:1 |
Transmission mode |
CVT (continuously variable transmission) |
Drill pipe diameter |
32mm |
Drill pipe total length |
30m |
Drill hole diameter |
32-120mm |
Net weight |
52 kg |
Size |
550*450*420mm |
Packing measurement |
1050*600*550mm |
3. Configuration list of BXZ-2L vertical backpack core drilling rig
Item |
Parameter |
Unit |
Number |
Vertical backpack core drilling rig |
BXZ-2L |
set |
1 |
Drilling pipe including joint(mm) |
32 *800 |
pc |
38 |
Reducing nipple(mm) |
46 |
pc |
1 |
Coring barrel(mm) |
46 *700 |
pc |
1 |
Alloy bit(mm) |
46 |
pc |
1 |
Diamond bit(mm) |
46 |
pc |
1 |
Reducing nipple(mm) |
60 |
pc |
1 |
Coring barrel(mm) |
60*700 |
pc |
1 |
Alloy bit(mm) |
60 |
pc |
1 |
Diamond bit(mm) |
60 |
pc |
1 |
Mud pump (gasoline engine) |
set |
1 |
|
Inlet hose pipe(mm) |
20*1000 |
pc |
1 |
Inflow water filter |
pc |
1 |
|
Outlet hose pipe(mm) |
13*1000 |
pc |
1 |
Water supply pipe(mm) |
13*4500 |
pc |
1 |
Safety clamp |
grasp |
1 |
|
Pipe wrench |
grasp |
2 |
|
Safety plate |
pc |
1 |
|
Spark plug |
pc |
1 |
|
Ring gasket |
set |
1 |
|
Water seal |
set |
1 |
