QZ-2C Gasoline Engine Sampling Drilling Rig/borehole Machine Working
- Qingdao
- T/T L/C
- 7 days
You May Like
-
QZ-2CS Gasoline Engine Sampling Drilling Rig/core Drill Rig
-
QZ-2D Three Phase Electric Sampling Drilling Rig/4 Inch Core Drill
-
QZ-2DS Three Phase Electric Sampling Drilling Rig/borehole Drill Cost
-
QZ-3 Diesel Engine Sampling Drilling Rig/core Sample Machine
-
YQZ-30 Hydraulic Core Drilling Rig/hydraulic Drill Machine
-
YQZ-50A Hydraulic Core Drilling Rig/shallow Drill Equipment
Product Details
| Brand Name | Huaxiamaster | Place of Origin | China | |
| Model Number | QZ-2C | After-sales Service Provided | No overseas service provided |
Product Description

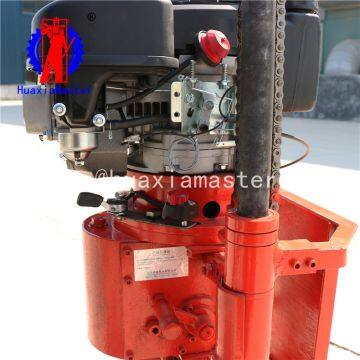

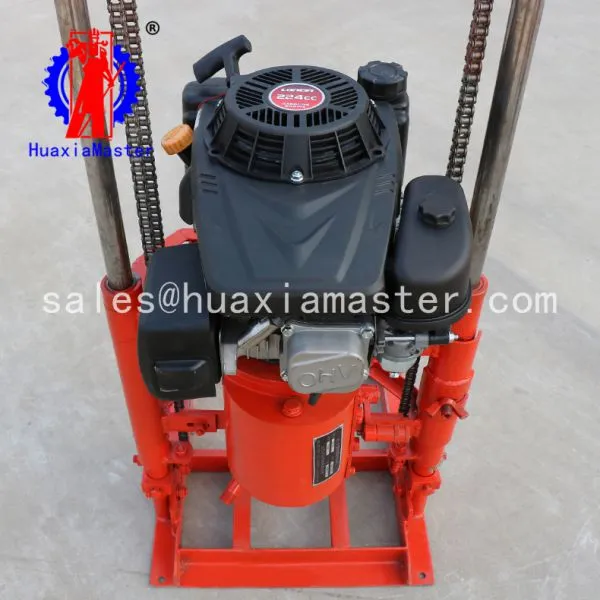

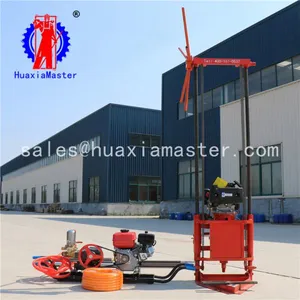

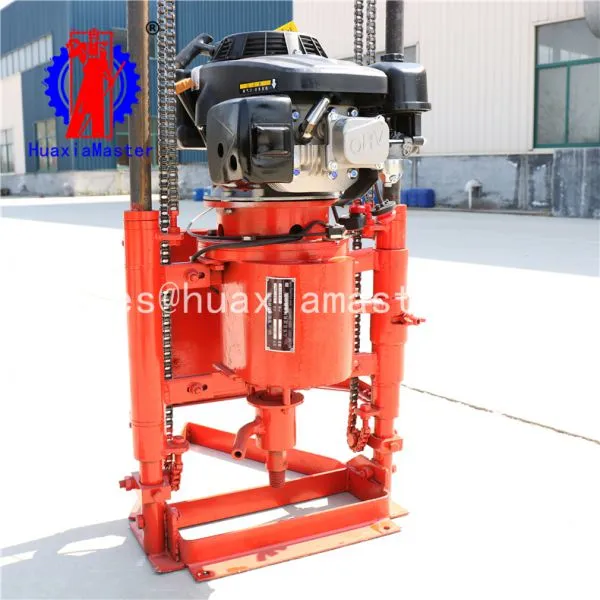

QZ-2C gasoline engine sampling drilling rig
1. Brief introductions of QZ-2C gasoline engine sampling drilling rig
QZ-2C gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2C gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2C gasoline engine sampling drilling rig
QZ-2C gasoline engine sampling drilling rig | ||
Bottom hole diameter (mm) | 32-91 | |
Drilling depth（m） | soil layer φ91：10-15m φ91：5-10m lithosphereφ75：10-15m lithosphereφ60：15-20m lithosphereφ46：20-30m | |
Drilling pipe diameter (mm) | 30 | |
Gasoline engine | horse power(hp） | 6(4.5kw) |
displacement（cc） | 224 | |
Dimension（l*w*h） | 600*450*1900 | |
Weight（kg） | 95 | |
3. Configuration list of QZ-2C gasoline engine sampling drilling rig
Item | Parameter | Unit | Quantity |
Gasoline engine sampling drilling rig | QZ-2C | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |
Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Clamp | pc | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |
If you need a wooden base, a high pressure pump, and a high pressure water pipe, please specify.
