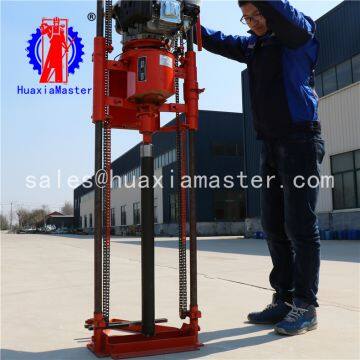

QZ-2B gasoline engine sampling drilling rig
1.Brief introduction of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
QZ-2B gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2B gasoline engine sampling drilling rig
QZ-2B gasoline engine sampling drilling rig | ||
Bottom hole diameter (mm) |
32-91 |
|
|
Drilling depth（m） |
soil φ91：10-15m stoneφ91：5-10m stoneφ75：10-15m stoneφ60：15-20m stoneφ46：20-25m |
|
Drilling pipe (mm) |
28 |
|
Rotating speed（r/min） |
200-570 |
|
Torque（n.m） |
110 |
|
Gasoline engine |
house power(hp） |
5 (3.5kw) |
displacement（cc） |
196 |
|
Dimension（l*w*h） |
600*450*1900 |
|
Weight（kg） |
90 |
|

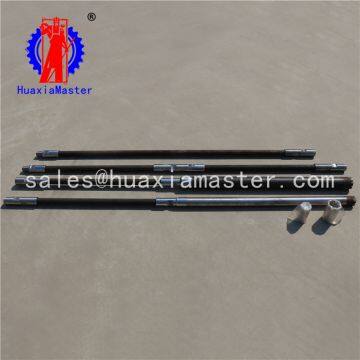

3.Configuration list of QZ-2B gasoline engine sampling drilling rig
Item |
Parameter |
Unit |
Quantity |
Gasoline engine sampling drilling rig |
QZ-2B |
set |
1 |
Drilling pipe |
28*1500 |
pc |
6 |
Drilling pipe |
28*800 |
pc |
8 |
Pipe joint |
35 |
pc |
14 |
Reducing nipple |
45/35 |
pc |
1 |
Core barrel |
45*800 |
pc |
1 |
Alloy bit |
46 |
pc |
1 |
Reducing nipple |
58/35 |
pc |
1 |
Core barrel |
58*800 |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Three-wing bit |
60 |
pc |
1 |
Safety clamp |
hold |
1 |
|
Water seal |
30*50*10 |
pc |
4 |
Oil seal |
30*50*10 |
||
Oil seal |
17*50*10 |
||
Control wheel |
pc |
1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
