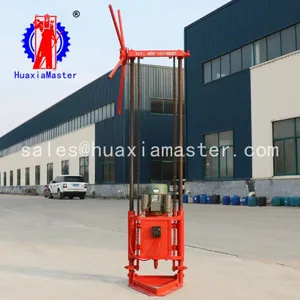

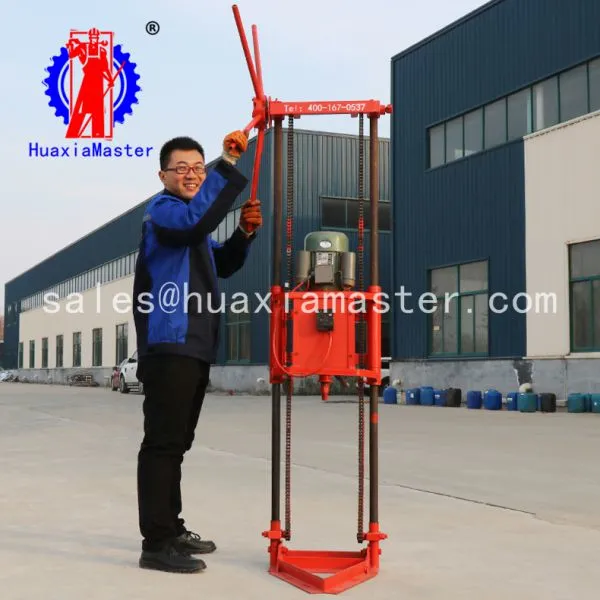

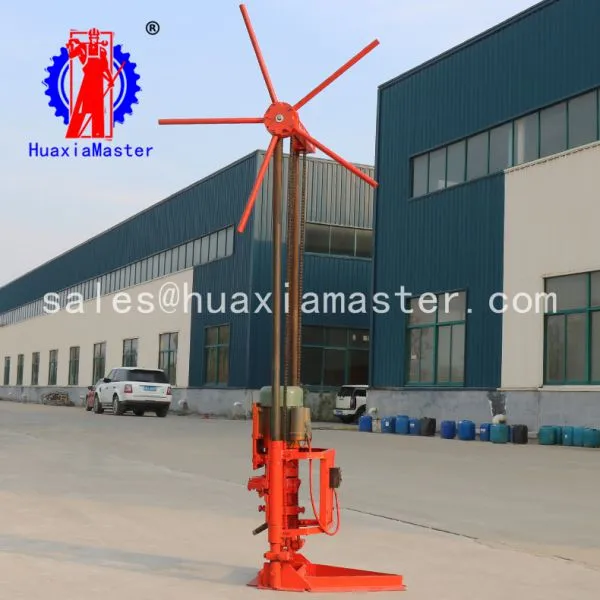

QZ-1A two phase electric sampling drilling rig
1.Brief introductions of QZ-1A two phase electric sampling drilling rig
QZ-1A is a two phase electric sampling drilling rig produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for all kinds of geological exploration, like industrial and civil buildings, bridges, railways, roads and so on. QZ-1A two phase electric sampling drilling rig is only 80kg; height is less than 2 meters, and the drilling rig can been break down structure. Hence it is easy to move and operated.
2.Technical parameter s of QZ-1A two phase electric sampling drilling rig
QZ-1A two phase electric sampling drilling rig | |
Borehole diameter (mm) |
32-46 |
Drilling depth (m) |
Soil layer: 20-25 Lithosphere: 15-20 |
Drilling pipe diameter (mm) |
25 |
Rotate speed（r/min） |
175 |
Torque (n.m) |
80 |
Power (kw) |
3 |
Dimensions (l*w*h) |
600mm*450mm*1900mm |
Weight (kg) |
80 |

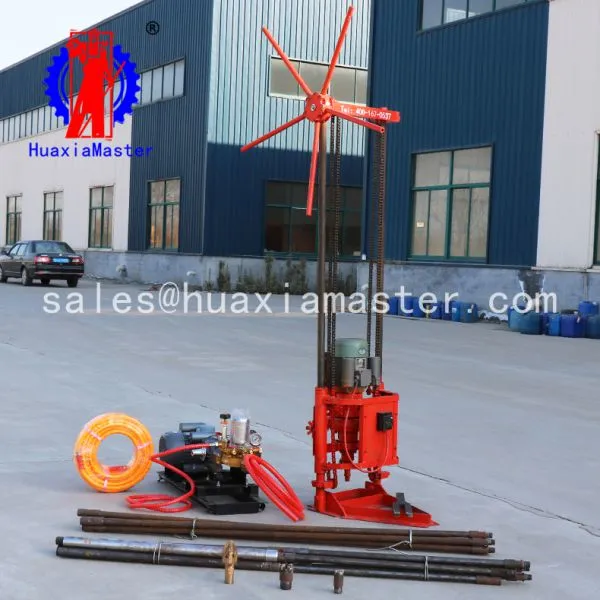

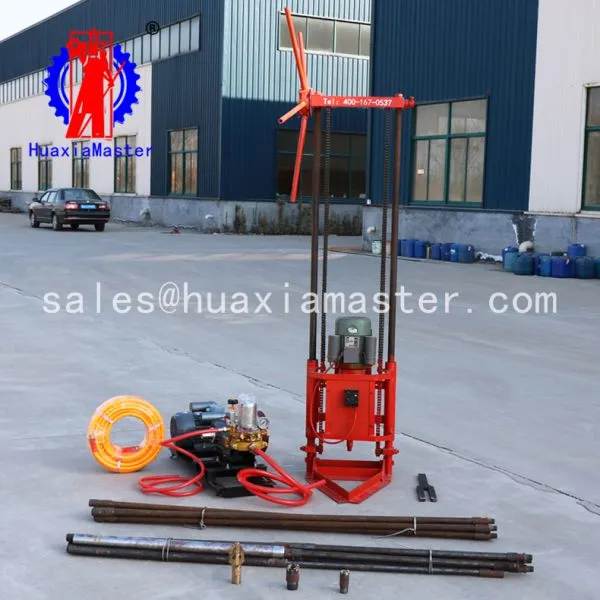

3.Configuration list of QZ-1A two phase electric sampling drilling rig
Item |
Parameters |
Unit |
Quantity |
Two phase electric sampling drilling rig |
QZ-1A |
set |
1 |
Drill pipe(mm) |
25*1500 |
pc |
6 |
Drill pipe(mm) |
25*800 |
pc |
8 |
Joint(mm) |
32 |
pc |
14 |
Core barrel(mm) |
32*800 |
pc |
1 |
Alloy bit(mm) |
32 |
pc |
1 |
Reducing nipple(mm) |
45/32 |
pc |
1 |
Core barrel(mm) |
45*800 |
pc |
1 |
Alloy bit(mm) |
46 |
pc |
1 |
Three-wing bit(mm) |
60 |
pc |
1 |
Safety clamp |
pc |
1 |
|
Water seal |
Y Type 30*45*8 |
pc |
4 |
Control wheel |
set |
1 |
