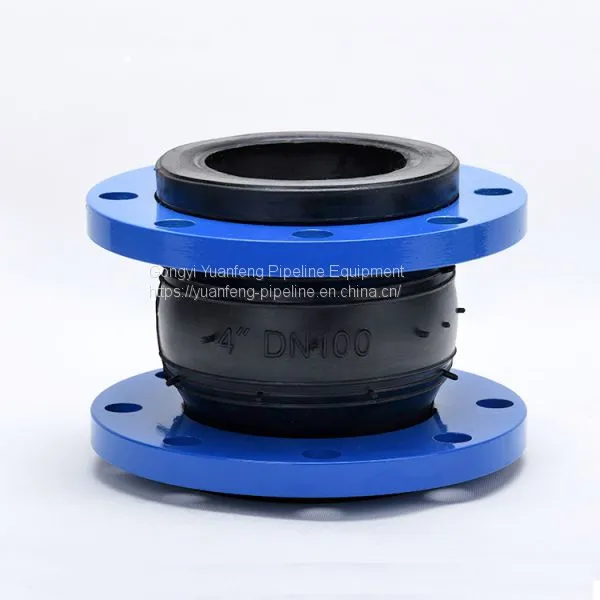

Help CenterAnsi Flange Connection Flexible Rubber Expansion Joint
Related Products
-
Rubber Expansion Joint Soft Connection FlangeUS$ 4.55 - 299.5MOQ: 1 Carton -
Ansi Epdm Material Rubber Flange Connection Flexible Rubber Expansion JointUS$ 4.55 - 299.55MOQ: 1 Piece
-
Flexible Rubber Expansion JointUS$ 4.55 - 299.55MOQ: 1 Piece
-
SS304 Stainless Steel Rubber Flexible JointUS$ 4.55 - 299.55MOQ: 1 Piece
-
Rubber Material Epdm Flexible Rubber Expansion JointUS$ 4.55 - 299.55MOQ: 1 Piece

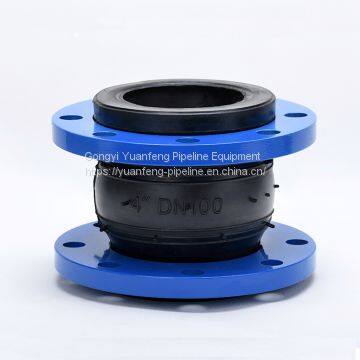

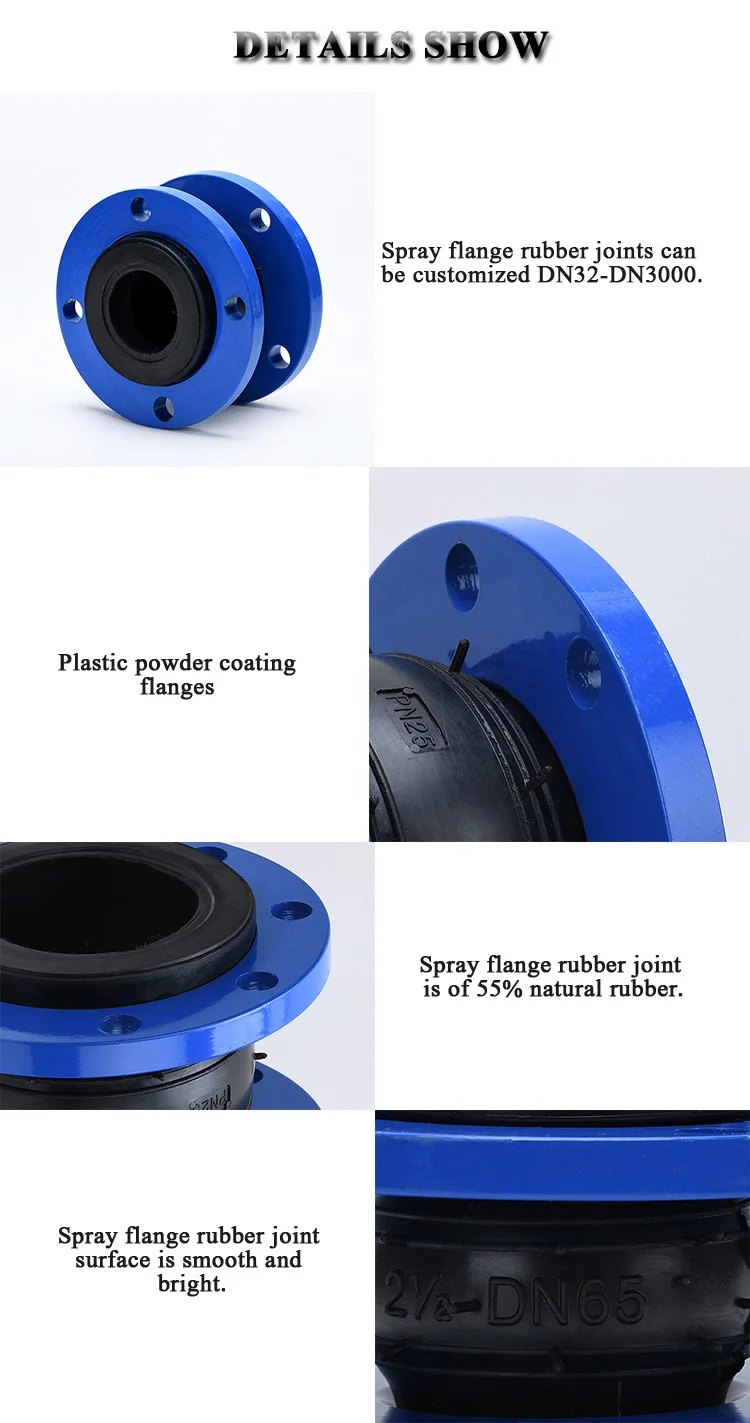

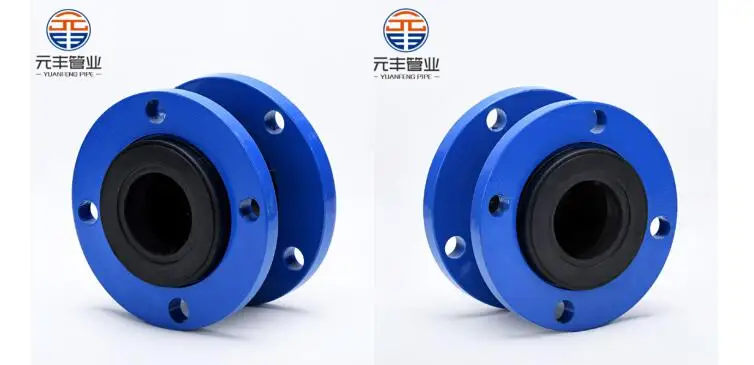

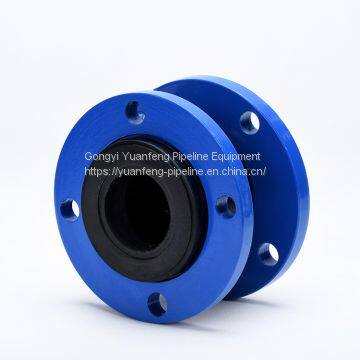

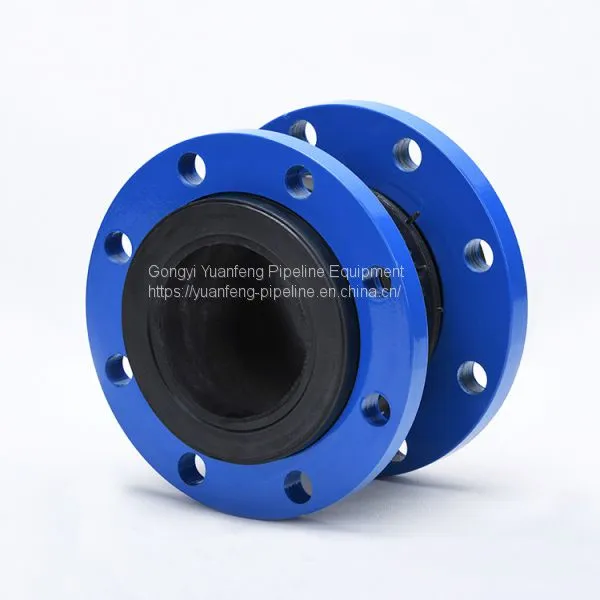

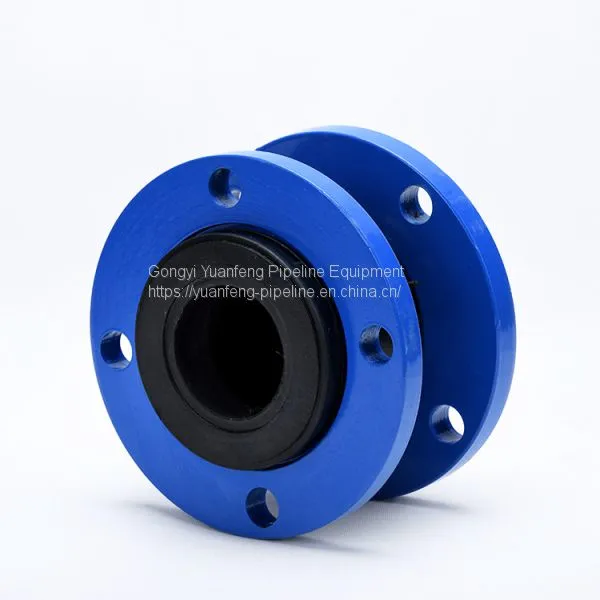

RUBBER JOINT PRODUCT DESCRIPTION

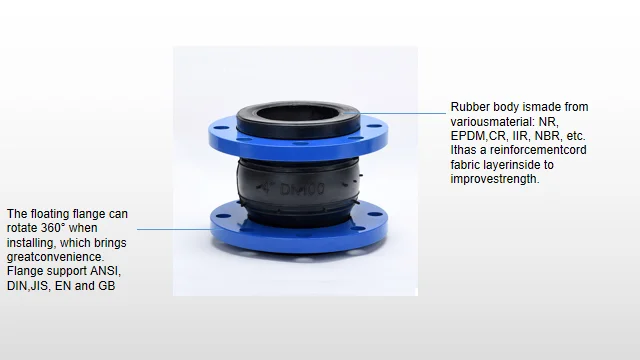

Rubber joints are also called rubber tube soft joints, flexible rubber joints, rubber soft joints, flexible rubber joints, high pressure rubber joints, rubber shock absorbers, compensators, etc. This product can reduce vibration and noise, and can compensate for thermal expansion and contraction caused by temperature changes, and is widely used in various piping systems.
| Main Data of Rubber Expansion Joint | ||||||
| DN |
Length (mm) |
Axial Displacement |
Horizontal Displacement (mm) |
Deflection Angular (°) |
||
| Norminal Diameter | ||||||
| mm | inch |
Extension (mm) |
Compression (mm) |
|||
| 32 | 11/4 | 90 | 6 | 10 | 9 | 15 |
| 40 | 11 /2 | 95 | 7 | 10 | 9 | 15 |
| 50 | 2 | 105 | 7 | 10 | 10 | 15 |
| 65 | 2/21 | 115 | 7 | 10 | 11 | 15 |
| 80 | 3 | 135 | 8 | 15 | 12 | 15 |
| 100 | 4 | 150 | 10 | 19 | 13 | 15 |
| 125 | 5 | 165 | 12 | 19 | 13 | 15 |
| 150 | 6 | 180 | 12 | 20 | 14 | 15 |
| 200 | 8 | 210 | 16 | 25 | 22 | 15 |
| 250 | 10 | 230 | 16 | 25 | 22 | 15 |
| 300 | 12 | 245 | 16 | 25 | 22 | 15 |
| 350 | 14 | 255 | 16 | 25 | 22 | 15 |
| 400 | 16 | 255 | 16 | 25 | 22 | 15 |
| 450 | 18 | 255 | 16 | 25 | 22 | 15 |
| 500 | 20 | 255 | 16 | 25 | 22 | 15 |
| 600 | 24 | 260 | 16 | 25 | 22 | 15 |
| 700 | 28 | 260 | 16 | 25 | 22 | 15 |
| 750 | 30 | 260 | 16 | 25 | 22 | 15 |
| 800 | 32 | 260 | 16 | 25 | 22 | 15 |
| 900 | 36 | 260 | 16 | 25 | 22 | 15 |
| 1000 | 40 | 260 | 16 | 25 | 22 | 15 |
YUANFENG RUBEER JOINT FACTORY&DELIVERYRUBBER EXPANSION JOINT PRODUCTION PROCESS
STEP1. Strictly cintrol the raw materials. Each batch of raw materials is tested by qualified laboratory technicians and entered the factory. Professional rubber compounding personnel are proportioned according to the requirements
STEP2. After the ingredients are finished, they are sent to the rubber mixing workshop and pressed into a synthetic rubber sheet by a rubber mixer.
STEP3. Each rubber joint tire type is sent to the vulcanization workshop after passing the inspection, and the staff puts the tire type into the mold. reduce the shock
STEP4. The rubber joint semi-finished product inside the cable car is sent to the flange assembly workshop, and the staff assembles the rubber joint flange and the rubber joint semi-finished product into finished products.
STEP5. The quality inspection department personnel will carry out random sampling and pressure testing of the finished rubber joints, and test the qualified rubber joints for packaging.

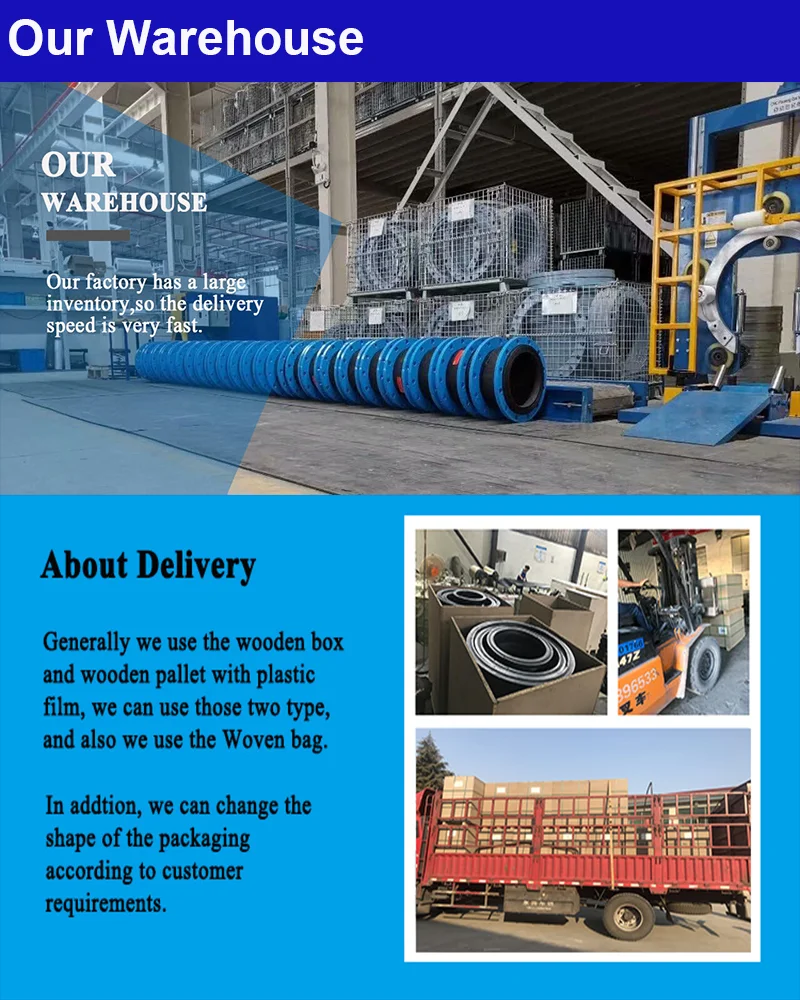

STEP6. The finished rubber joints are placed in the warehouse and waiting for loading and delivery.
YUANFENG RUBEER JOINT INSPECTION PROCESSOTHER YUANFENG PRODUCTS
YUANFENG CUSTOMER
YUANFENG CERTIFICATIONS
♦ We offer good quality products in competitive price.
♦ We have rich experience in this industry.
♦ We have short delivery time .
♦ Shipped the goods on time.
♦ Meet your special requirements.
If you need it, contact supplier immediately please.
rubber expansion joint singapore rubber expansion joint singapore rubber expansion joint singapore rubber expansion joint
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: can i visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And what's your packing?
A: carton cases inside , export wooden cases outside
