YUANFENG RUBBER JOINT PRODUCT DESCRIPTION
Rubber joints are also called rubber tube soft joints, flexible rubber joints, rubber soft joints, flexible rubber joints, high pressure rubber joints, rubber shock absorbers, compensators, etc. This product can reduce vibration and noise, and can compensate for thermal expansion and contraction caused by temperature changes, and is widely used in various piping systems.
YUANFENG RUBBER JOINT PRODUCT DETAILS

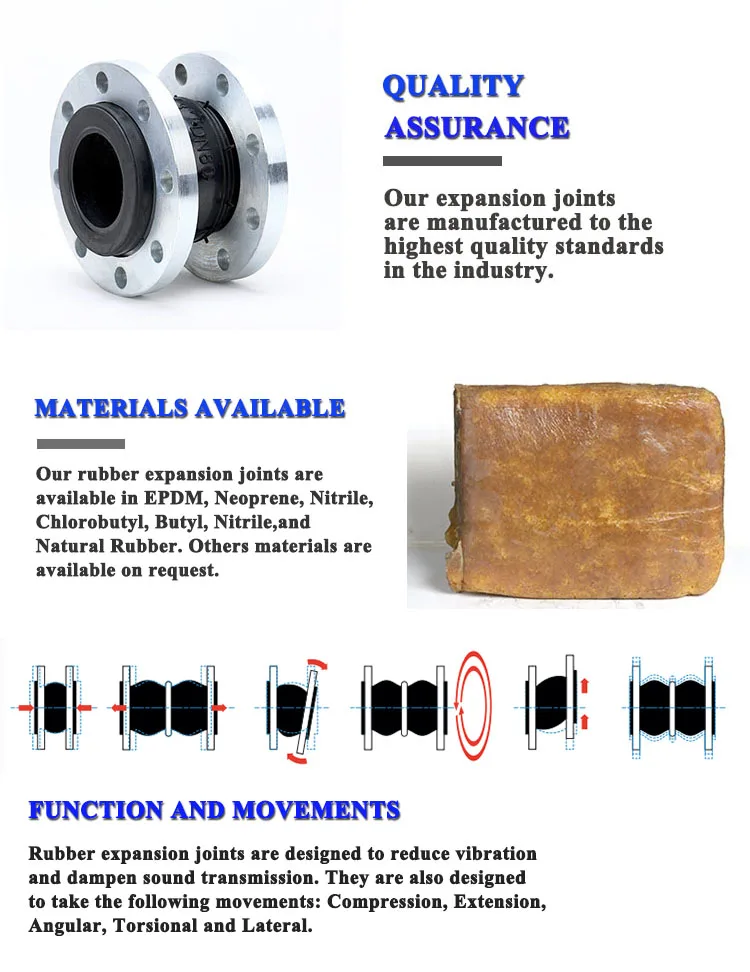

YUANFENG RUBBER JOINT ADVANTAGE
1. reduce the shock, cut down noise, scalling up, convenient use.
2. Samll size, light weight, flexibility, convenient installment and repair.
3. It may be generate horizontal, longitudinal and angular displacement, not restricted by piping, flange not parallel.
4. It can increase structureto send noise, strong vibration absorption.
5. There are excellent comprehensive function, it is extensive used chemical engineering, building, feed water,drain away water, oil,light and heavy industry, refrigeration, sanitation, plumbing, fire protection and electric foundation engineering and so on, especially fit in large shake, cold and hot change pipe
YUANFENG RUBBER JOINT MATERIAL LIST

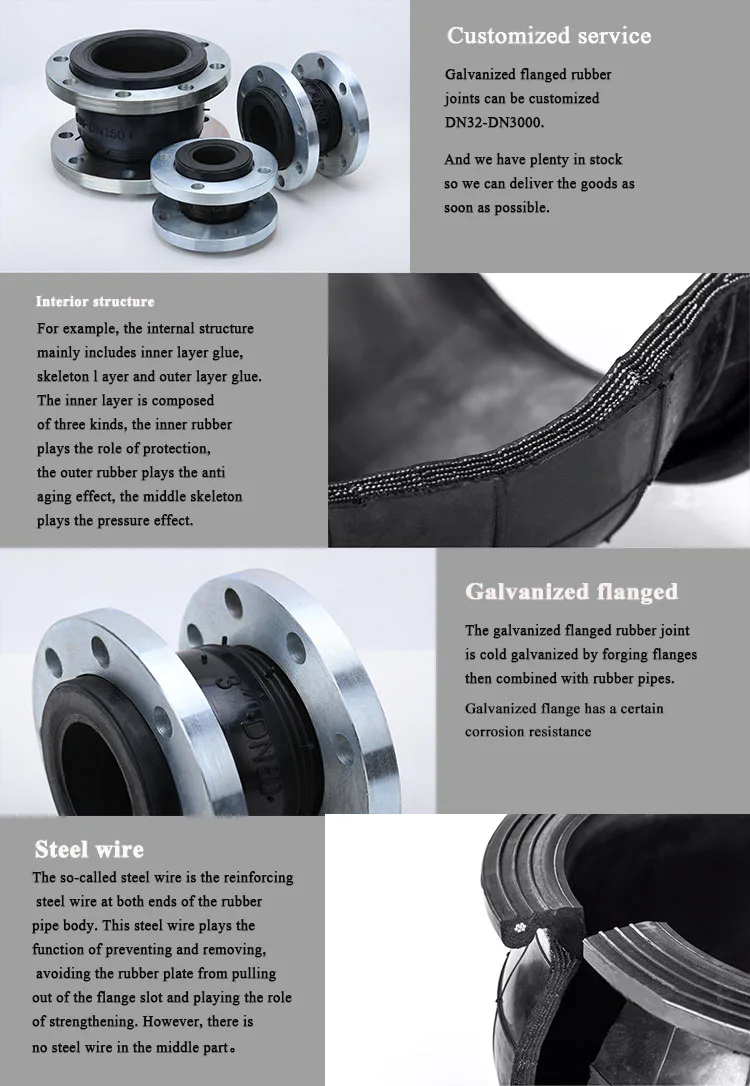

Yuanfeng rubber joint product is manufactured using air blow mold new technology,which is composed of inner rubber layer, reinforcing layer, medium rubber layer and outer rubber layer composite ball and loose-wrapped low carbon steel flange.
| Main Data of Rubber Expansion Joint | ||||||
| DN | Length (mm) |
Axial Displacement | Horizontal Displacement (mm) |
Deflection Angular (°) |
||
| Norminal Diameter | ||||||
| mm | inch | Extension (mm) |
Compression (mm) |
|||
| 32 | 11/4 | 90 | 6 | 10 | 9 | 15 |
| 40 | 11/2 | 95 | 7 | 10 | 9 | 15 |
| 50 | 2 | 105 | 7 | 10 | 10 | 15 |
| 65 | 2/21 | 115 | 7 | 10 | 11 | 15 |
| 80 | 3 | 135 | 8 | 15 | 12 | 15 |
| 100 | 4 | 150 | 10 | 19 | 13 | 15 |
| 125 | 5 | 165 | 12 | 19 | 13 | 15 |
| 150 | 6 | 180 | 12 | 20 | 14 | 15 |
| 200 | 8 | 210 | 16 | 25 | 22 | 15 |
| 250 | 10 | 230 | 16 | 25 | 22 | 15 |
| 300 | 12 | 245 | 16 | 25 | 22 | 15 |
| 350 | 14 | 255 | 16 | 25 | 22 | 15 |
| 400 | 16 | 255 | 16 | 25 | 22 | 15 |
| 450 | 18 | 255 | 16 | 25 | 22 | 15 |
| 500 | 20 | 255 | 16 | 25 | 22 | 15 |
| 600 | 24 | 260 | 16 | 25 | 22 | 15 |
| 700 | 28 | 260 | 16 | 25 | 22 | 15 |
| 750 | 30 | 260 | 16 | 25 | 22 | 15 |
| 800 | 32 | 260 | 16 | 25 | 22 | 15 |
| 900 | 36 | 260 | 16 | 25 | 22 | 15 |
| 1000 | 40 | 260 | 16 | 25 | 22 | 15 |
This product is manufactured by Shanghai Hurui using air blow mold new technology, which is composed of inner rubber layer, reinforcing layer, medium rubber layer and outer rubber layer composite ball and loose-wrapped low carbon steel flange.

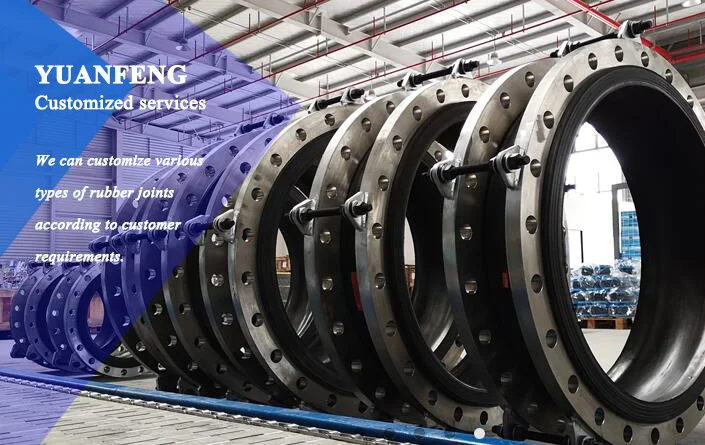

YUANFENG CUSTOMERIED SERVIES AND DELIVERY
WHY DO YOU CHOOSE YUANFENG RUBBER JOINT?
YUANFENG RUBBER JOINT PRODUCTION PROCESS
STEP1. Strictly cintrol the raw materials. Each batch of raw materials is tested by qualified laboratory technicians and entered the factory. Professional rubber compounding personnel are proportioned according to the requirements
STEP2. After the ingredients are finished, they are sent to the rubber mixing workshop and pressed into a synthetic rubber sheet by a rubber mixer.
STEP3. Each rubber joint tire type is sent to the vulcanization workshop after passing the inspection, and the staff puts the tire type into the mold. reduce the shock
STEP4. The rubber joint semi-finished product inside the cable car is sent to the flange assembly workshop, and the staff assembles the rubber joint flange and the rubber joint semi-finished product into finished products.
STEP5. The quality inspection department personnel will carry out random sampling and pressure testing of the finished rubber joints, and test the qualified rubber joints for packaging.

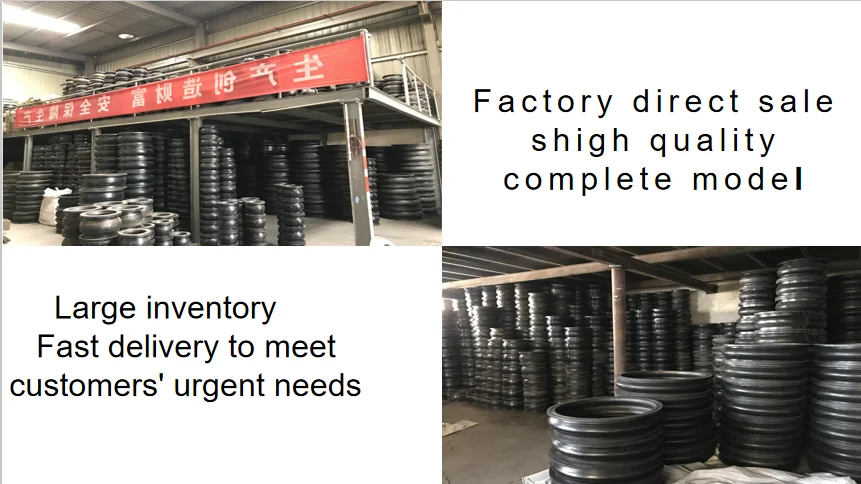

STEP6. The finished rubber joints are placed in the warehouse and waiting for loading and delivery.
YUANFENG INSPECTION PROCESS
YUANFENG APPLICATION EXAMPLES
YUANFENG OTHER EXCELLENT PRODUCTS
YUANFENG CUSTOMERS
YUANFENG CERTIFICATION
♦ We offer good quality products in competitive price.
♦ We have rich experience in this industry.
♦ We have short delivery time .
♦ Shipped the goods on time.
♦ Meet your special requirements.
If you need it, contact supplier instantly, please.
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: can i visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And what's your packing?
A: carton cases inside , export wooden cases outside
