RUBBER JOINT PRODUCT DESCRIPTION
Rubber joints are also called rubber tube soft joints, flexible rubber joints, rubber soft joints, flexible rubber joints, high pressure rubber joints, rubber shock absorbers, compensators, etc. This product can reduce vibration and noise, and can compensate for thermal expansion and contraction caused by temperature changes, and is widely used in various piping systems.
YUANFENG RUBBER JOINT DETAILS
YUANFENG RUBEER JOINT ADVANTAGES
1. reduce the shock, cut down noise, scalling up, convenient use.
2. Samll size, light weight, flexibility, convenient installment and repair.
3. It may be generate horizontal, longitudinal and angular displacement, not restricted by piping, flange not parallel.
4. It can increase structureto send noise, strong vibration absorption.
5. There are excellent comprehensive function, it is extensive used chemical engineering, building, feed water,drain away water, oil,light and heavy industry, refrigeration, sanitation, plumbing, fire protection and electric foundation engineering and so on, especially fit in large shake, cold and hot change pipe
YUANFENG RUBEER JOINT MATERIAL LIST

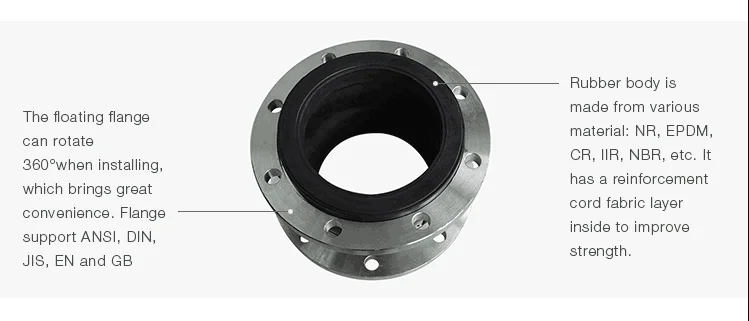

This product is manufactured using air blow mold new technology, which is composed of inner rubber layer, reinforcing layer, medium rubber layer and outer rubber layer composite ball and loose-wrapped low carbon steel flange.
| Main Data of Rubber Expansion Joint | ||||||
| DN | Length (mm) |
Axial Displacement | Horizontal Displacement (mm) |
Deflection Angular (°) |
||
| Norminal Diameter | ||||||
| mm | inch | Extension (mm) |
Compression (mm) |
|||
| 32 | 11/4 | 90 | 6 | 10 | 9 | 15 |
| 40 | 11/2 | 95 | 7 | 10 | 9 | 15 |
| 50 | 2 | 105 | 7 | 10 | 10 | 15 |
| 65 | 2/21 | 115 | 7 | 10 | 11 | 15 |
| 80 | 3 | 135 | 8 | 15 | 12 | 15 |
| 100 | 4 | 150 | 10 | 19 | 13 | 15 |
| 125 | 5 | 165 | 12 | 19 | 13 | 15 |
| 150 | 6 | 180 | 12 | 20 | 14 | 15 |
| 200 | 8 | 210 | 16 | 25 | 22 | 15 |
| 250 | 10 | 230 | 16 | 25 | 22 | 15 |
| 300 | 12 | 245 | 16 | 25 | 22 | 15 |
| 350 | 14 | 255 | 16 | 25 | 22 | 15 |
| 400 | 16 | 255 | 16 | 25 | 22 | 15 |
| 450 | 18 | 255 | 16 | 25 | 22 | 15 |
| 500 | 20 | 255 | 16 | 25 | 22 | 15 |
| 600 | 24 | 260 | 16 | 25 | 22 | 15 |
| 700 | 28 | 260 | 16 | 25 | 22 | 15 |
| 750 | 30 | 260 | 16 | 25 | 22 | 15 |
| 800 | 32 | 260 | 16 | 25 | 22 | 15 |
| 900 | 36 | 260 | 16 | 25 | 22 | 15 |
| 1000 | 40 | 260 | 16 | 25 | 22 | 15 |
YUANFENG RUBBER JOINT FACTORYYUANFENG RUBBER JOINT INSPECTION PROCESSYUANFENG PRODUCT CERTIFICATE
YUANFENG PACKAGING AND SHIPPING
| Packing | Inner package: carton cases Outer package: wooden cases(usually the size of 1100mm*1100mm*1100mm) |
||||||||
| Shipping | Using safe and reliable transoprtation package Transport modes such as EMS/TNT/DHL/UPS/FEDEX |
||||||||
YUANFENG CUSTOMER
OTHER YUANFENG PRODUCTS
♦ We offer good quality products in competitive price.
♦ We have rich experience in this industry.
♦ We have short delivery time .
♦ Shipped the goods on time.
♦ Meet your special requirements.
If you need it, contact supplier instantly, please.
FAQ
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: can i visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A:Yes ,the material can be chose according to your requirement.
Q:And what's your packing?
A: carton cases inside , export wooden cases outside
