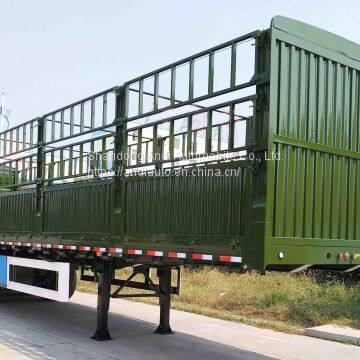

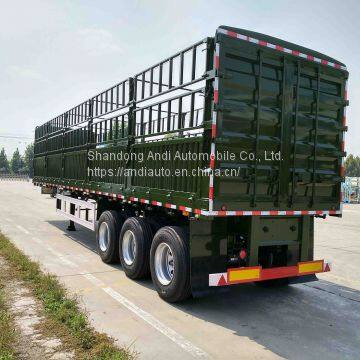

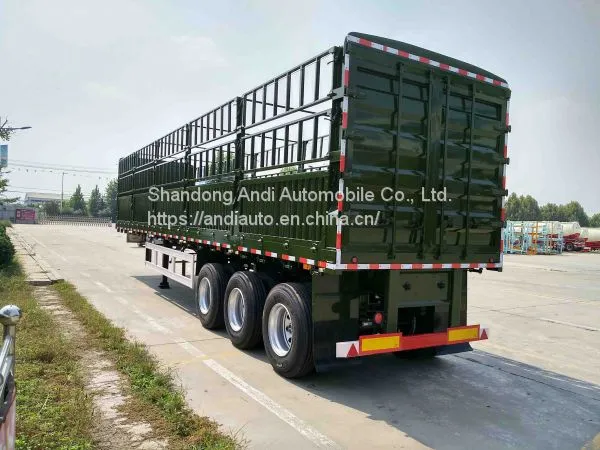

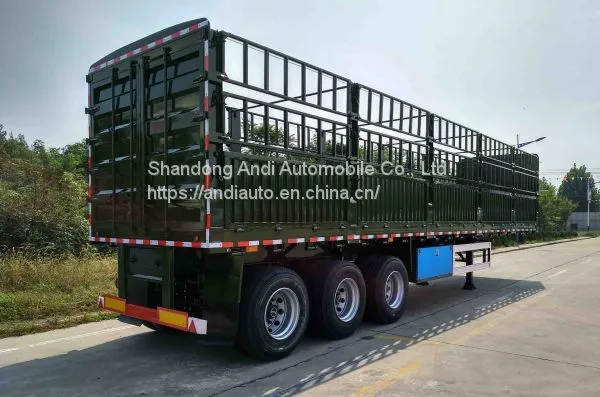

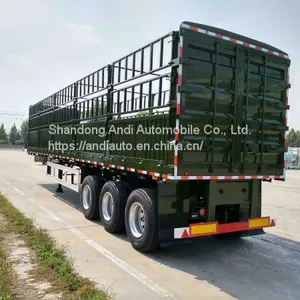

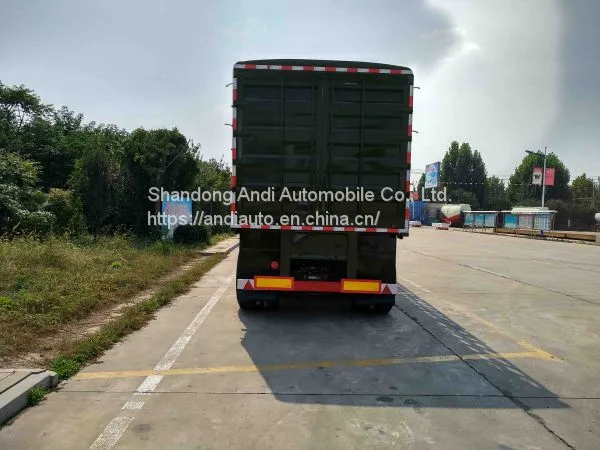

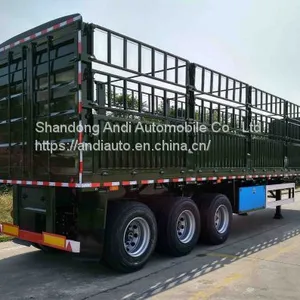

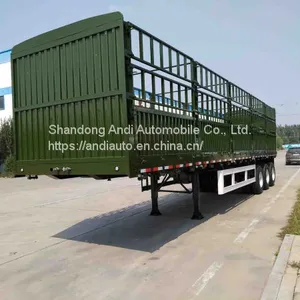

Three-axle stake semi trailer/stake semi trailer/storage/stake truck/stake high bed cattle semi trailer/ semi trailer

Product Name

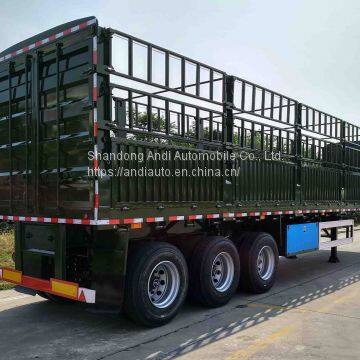

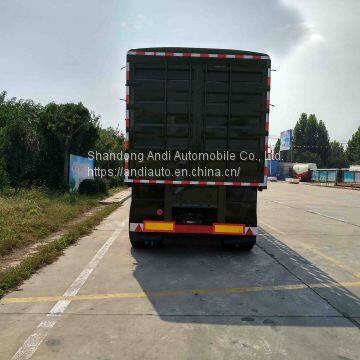

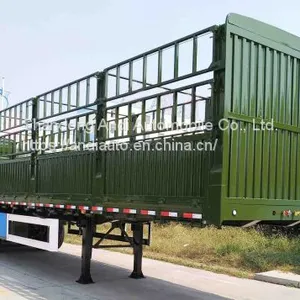

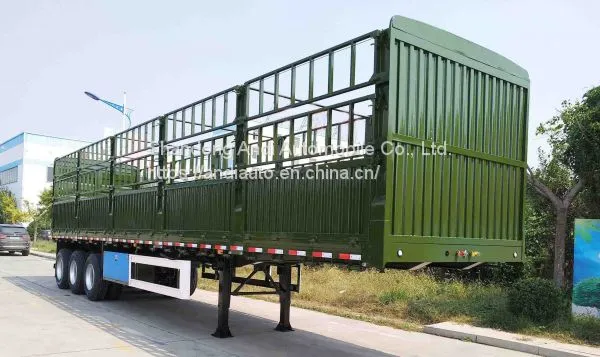

Three-axle stake semi trailer/stake semi trailer/storage/stake truck/stake high bed cattle semi trailer

Brand

Andi

Model

WZY9400CLX

Dimension(mm)

13000/12400*2500*1600、1800、2000

Axle space(mm)

6530+1310+1310

Main beam

Height: 500mm, upper plate is 10/12mm, middle plate is 6/8mm, Down plate is 12/14mm; Material is Q345B Steel.

Side beam

14mm,16mm or 18mm channel steel  ( Material is Q235steel ).

Side Wall

600mm-1500mm ，or can be do box type ,for choose

Tare Weight(Kg)

About 7500

Payload (Kg)

≤40000

Axle

3 axles, 13T Andi/Chinese Brand/FUWA Brand

Rim

9.00-22.5

Tire

12.00R22.5 12pieces

Suspension

Mechanical suspension (America Type)

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer

King pin

Chinese Brand/JOST brand 3.5inch/2inch bolts type

Support leg

Chinese Brand/JOST/FUWA brand 28Tons (Double speed)

Brake chamber

Dual air brake system

ABS

Optional

Twist Locks

Optional

Valve

Chinese Brand/,WABCO brake valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m tool box

Painting

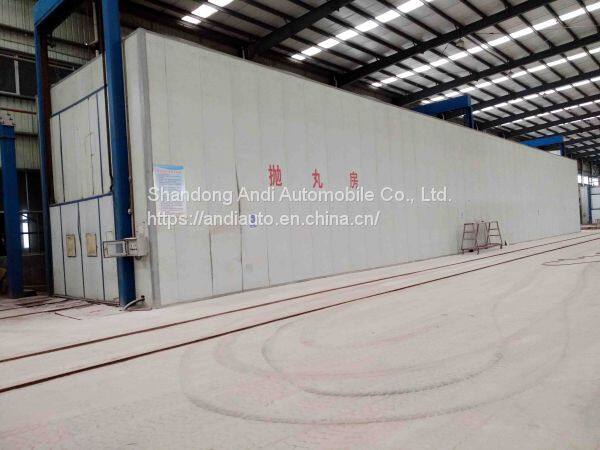

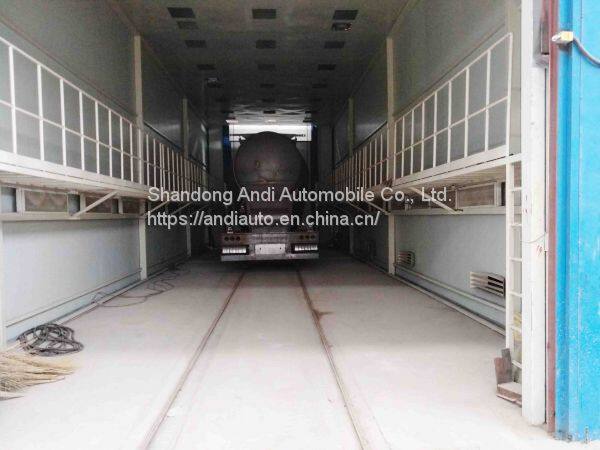

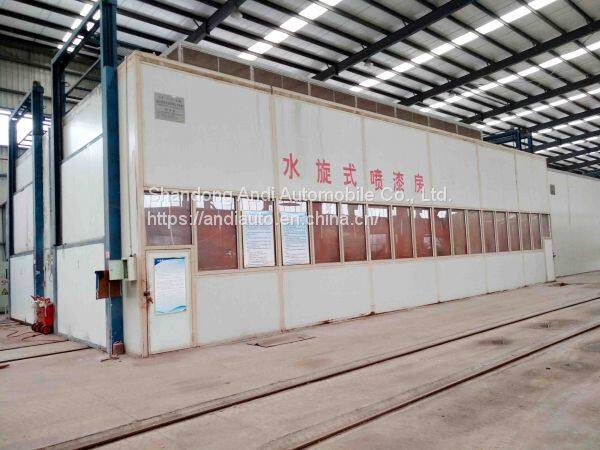

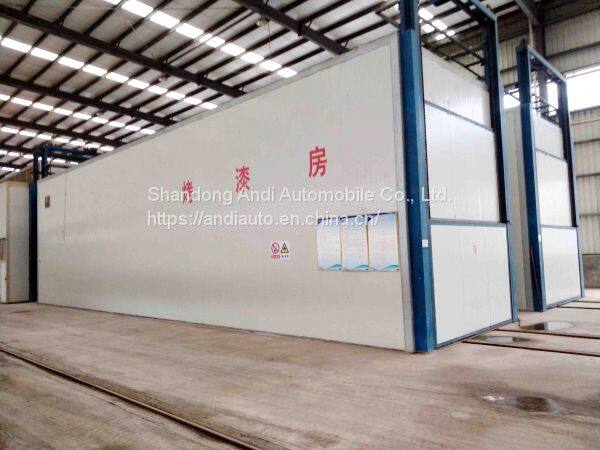

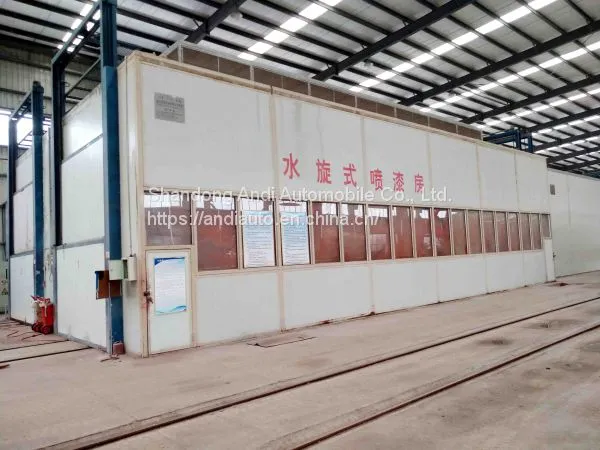

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO,40HQ container or 45HQ container
