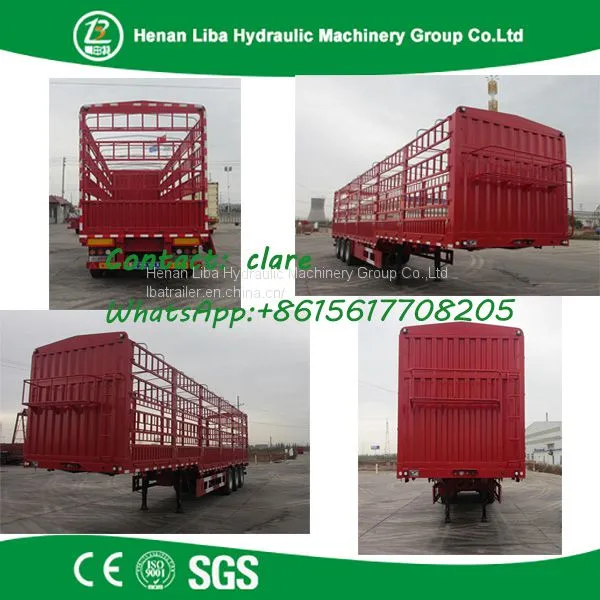

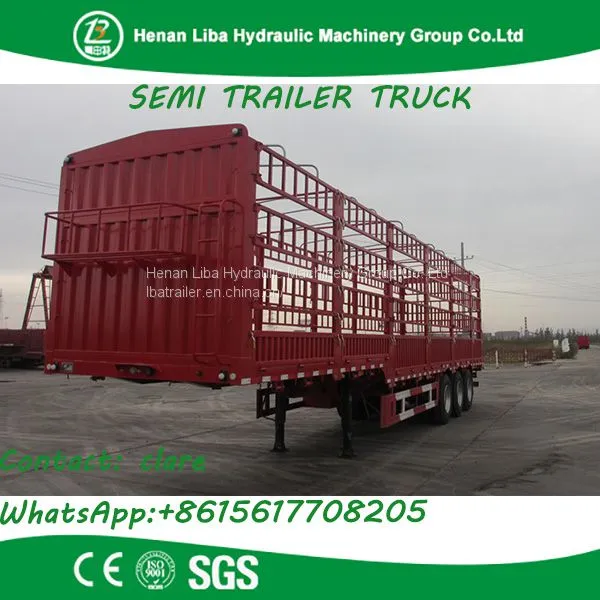

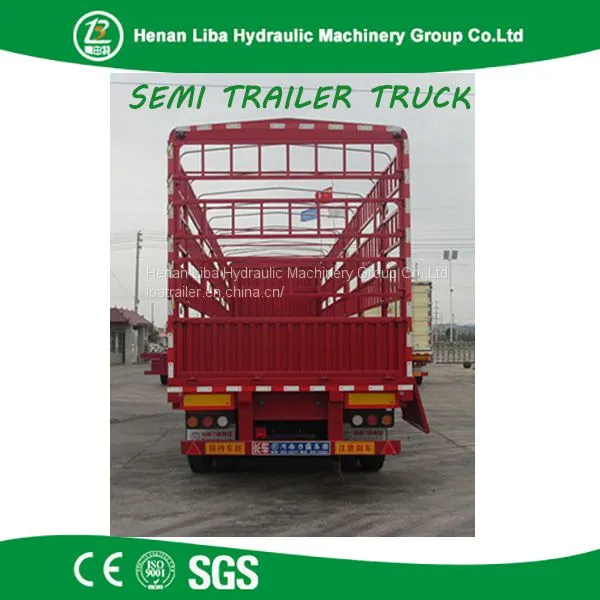

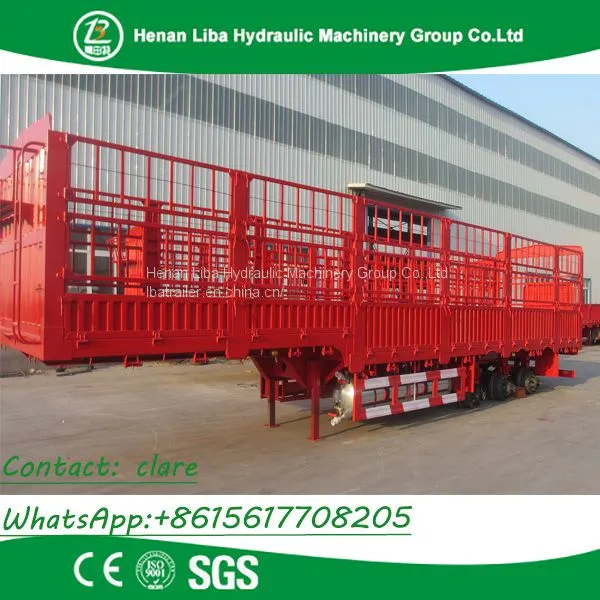

The series grid positions semitrailer includes grid position type semitrailer and second-type chassis refitted grid position type vehicle .
The whole vehicle body is made by high-quality steel , advanced technology , and strict , reliable in performance , convenient to operate, and beautiful in appearance . Fittings are products of famous manufacturers at home and aboard , and purchased , inspected and used strictly according to the quality system document, thus the good performance of the whole vehicle is guaranteed .
The series grid positions semitrailer frame is a beam-penetrating type structure , the longitudinal beam adopts flat straight type or goose neck type; the web plate is as high as 400 mm-500mm, and welded by manganese panel ; the longitudinal beam adopts automatic submerged-arc welding , and the vehicle frame adopts shot blasting treatment, and the cross beam is penetrated to the longitudinal beam and welded integrally .
The suspending frame adopts non-independent steel plate punching type rigid suspending (air suspension is optional ) and is composed of a series type steel plate spring and a suspending base ; the structure is reasonable , and the suspending frame is strong in rigidity and intensity , and can be used for supporting the load buffer impact .
| DIMENSIONS | |||
| Tare Weight | 8800kg | ||
| Payload | 40000kg | ||
| Total Weight | 48800kg | ||
| Overall Length | 12980mm | ||
| Overall Width | 2496mm | ||
| Overall Height | 3710mm | ||
| Wheel track | 1840mm | ||
| Wheelbase | 7235mm+1310mm+1310mm | ||
| SPECIFICATION | |||
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes | ||
| 500mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm | |||
| Side wall height | 1000mmChosed+500mmMesh | ||
| Floor | Steel Sheet 3mm thickness | ||
| Axle | Three Units of L1 13Ton axle | ||
| Suspension | 3-axle American design suspension | ||
| Leaf Spring | Six sets of reliable local brand, 8-piece leaf spring,16x90mm | ||
| King Pin | One unit of 2`` standard bolt in kingpin | ||
| Landing Gear | SAF brand two-speed ,manual operation, heavy duty landing gear | ||
| Wheel Rim | Thirteen units of 8.25-22.5 rim | ||
| Tyre | Thirteen units of 11R22.5 tyre | ||
| Twist Lock | 12pcs | ||
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. | ||
| Pneumatic Braking System | Two units of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber two units of reliable local brand 45L air tank ; two units of reliable local brand standard coppery air-connector. | ||
| Electrical System | One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc. | ||
| One set of DAFA(brand ) 7-Core standard Cable | |||
| Painting | Sand blasting before painting; | ||
| one coats of primer, anti corrosion | |||
| two coat of finish painting; | |||
| color advised by client | |||
| Accessory | One box with a set of standard trailer tool | ||
1. Q: Are you a factory or trading company?
A: We are a factory, and we produce all kinds of Semi Trailers for over 20 years. We warmly welcome your visit to our factory.
2. Q: Where is your factory located?
A: Our factory is located Runan Industry Cluster Area, Ruzhou City, Henan Province, China
3. Q: How long it will take for an order to be delivered?
A: 15 to 20 working days after we received you 30% prepayment or 100% L/C. The specific delivery time depends on the items and the quantity of your order.
4. Q: Can I get a sample or order 1 unit?
A: Yes, you can order 1 unit and our MOQ is 1 set.
5. Q: How about the warranty?
A: 1 year warranty and 2 years guarantee for all the beam.
6. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
