SPECIFICATION
Type |
Semi trailer |
Product Name |
Three-axle side wall semi trailer/Semi trailer/Cargo Semi trailer |
Brand |
Andi |
Model |
WZY9400 |
Dimension(mm) |
13000/12400*2500*600、800、1000 |
Axle space(mm) |
5150+1310+1310 |
Main beam |
Height: 500mm, upper plate is 12mm, middle plate is 6/8mm, Down plate is 14mm; Material is Q345B Steel. |
Side beam |
14mm,16mm or 18mm channel steel ( Material is Q235steel ). |
Side Wall |
600mm-1500mm ，or can be do box type ,for choose |
Tare Weight(Kg) |
About 7000 |
Payload (Kg) |
≤ 40000 |
Axle |
3 axles, 13 T Andi/Chinese Brand/FUWA Brand |
Rim |
9.00-22.5 |
Tire |
12.00R22.5 12pieces |
Suspension |
Mechanical suspension (America Type) |
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer |
King pin |
Chinese Brand/JOST brand 3.5inch/2inch bolts type |
Support leg |
Chinese Brand/JOST/FUWA brand 28Tons (Double speed) |
Brake chamber |
Dual air brake system |
ABS |
Optional |
Twist Locks |
Optional |
Valve |
Chinese Brand/,WABCO brake valve |
Light |
LED light |
Voltage |
24V |
Receptacle |
7 ways (7 wire harness) |
Tool box |
One piece, 1m tool box |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: |
By bulk cargo carrier, RORO,40HQ container or 45HQ container |
Specifications listed for reference only. Please leave a message, email us or call us directly for your tailored solution now.
Payment terms:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .
After-sales Service:
1. Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .

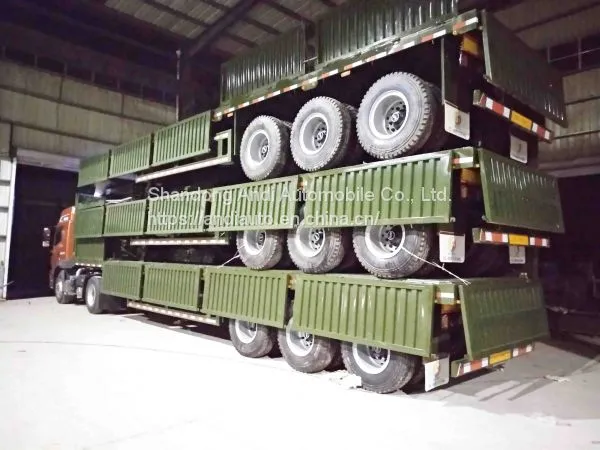

Shipment pictures for your reference:

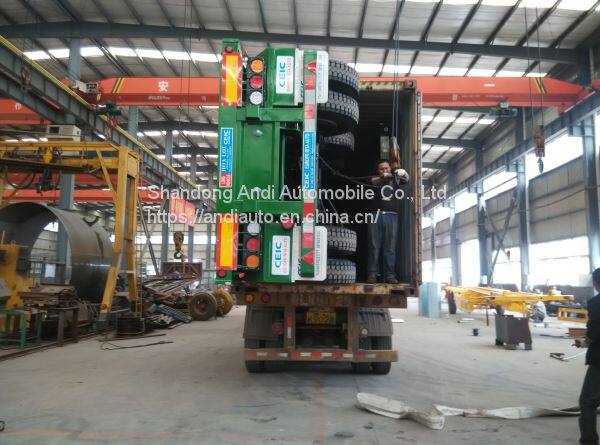

Two units flat bed semi trailer put into one 40HQ container , the trailer part connecting by the bolts with the trailer body
2.By bulk cargo ship or roro ship
1、We are China leading manufacturer.

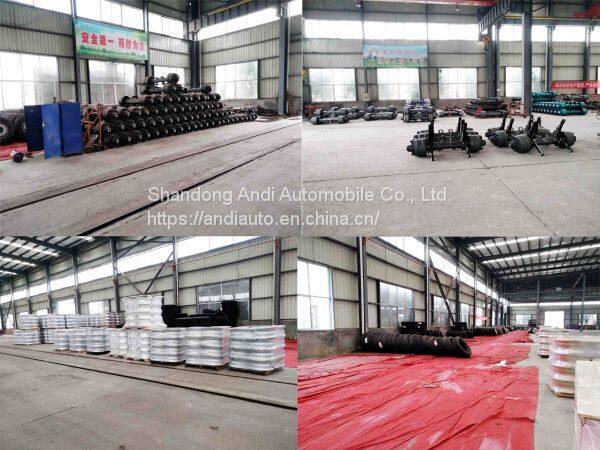

2、Factory production line.
We look forward to your cooperation!
