Hot sales Ridge Cap Steel Profile Roll Forming Machine
- 25 Set / Sets per Month
- Tianjin port
- T/T L/C Cash
- 30 days
- steel ridge cap roofing sheet roll forming machine price
- Cold Metal Floor Deck Panel Sheet Roll Forming Machine
- Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine
- metal floor deck making forming machine/ Decking Floor Roll Forming Machine
- Metal Floor Deck Sheet Roll Forming Machine/roof Decking Roll Forming Machine
- Steel floor decking sheet cold roll forming making machine
Product Details
Brand Name: | dixin | Place of Origin: | China | Model Number: | as machine |
Use: | Roof | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 YEARS | Weight: | 3TON | Dimension(L*W*H): | 6500*1000*1300MM |
Production Capacity: | 8-12m/min | Condition: | New | Voltage: | 380v,3phase |
Power(W): | 8kw | Type: | Tile Forming Machine | Tile Type: | Colored |
Product Description
Hot sales Ridge Cap Steel Profile Roll Forming Machine

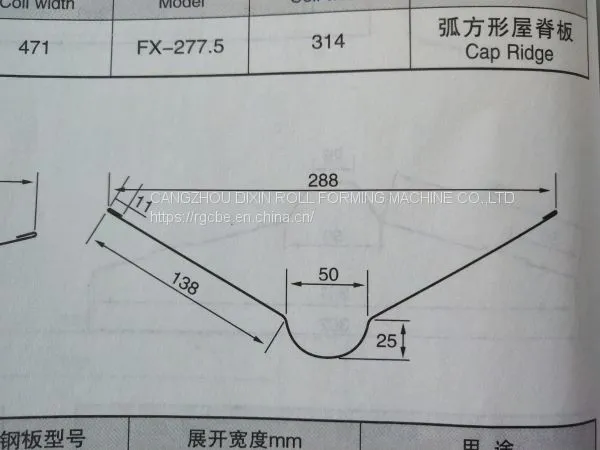

1.Panel drawing according to your request

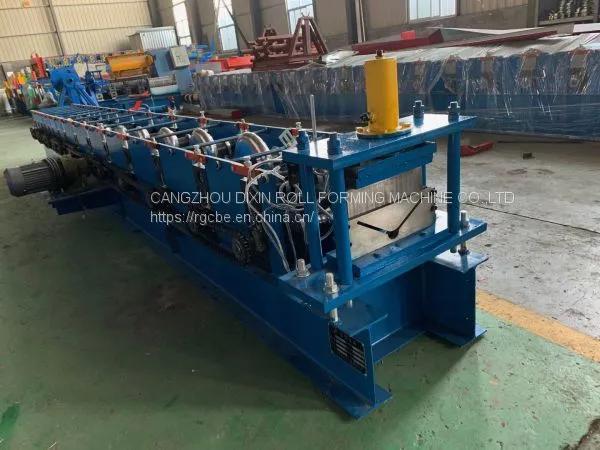

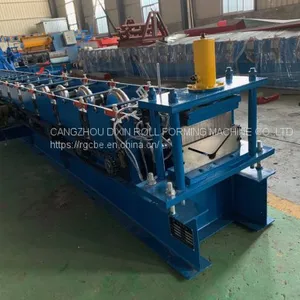

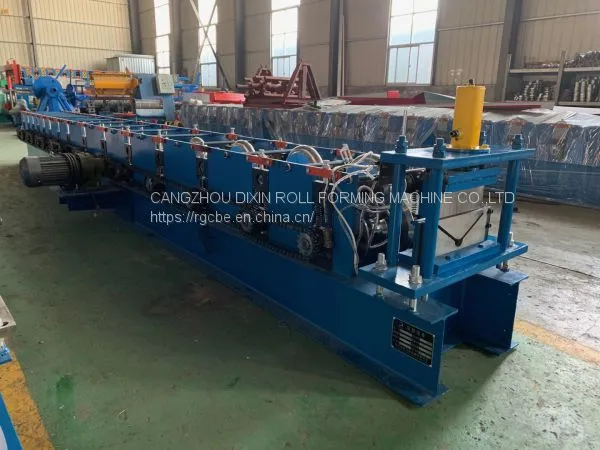

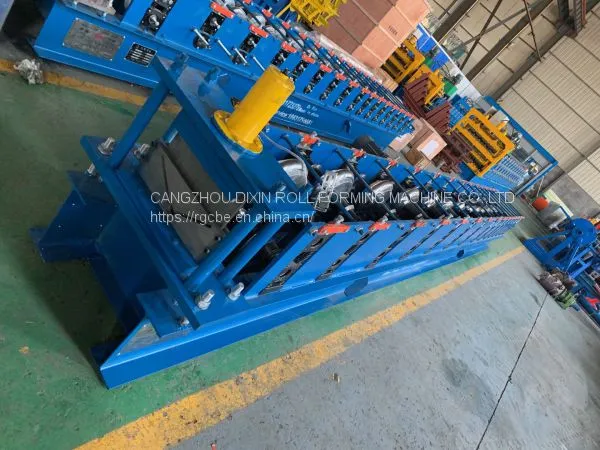

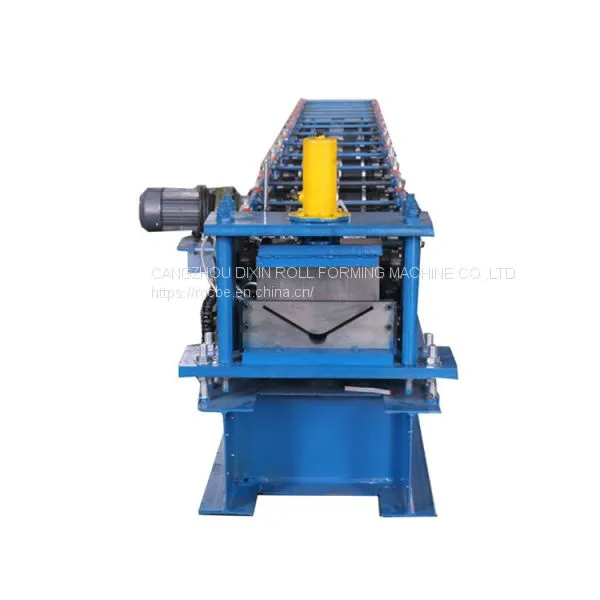

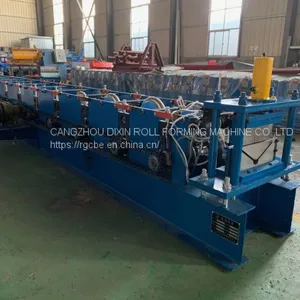

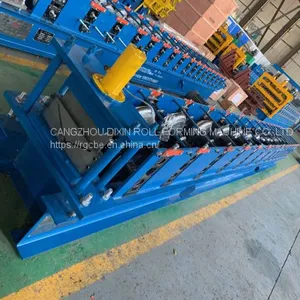

2.some machine pictures for your reference.
3.Machine Technique parameters
If you have specific requirements, that's no problem,We can meet all your needs.
No. | ||
1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
2 | Material width | as your required |
3 | Material thickness | 0.3-0.8 or as your required |
4 | Working speed | 8-12m/min |
5 | Main motor power | 5.5kw with cycloidal with reducer |
6 | Hydraulic pump power | 4kw |
7 | Electrical control system | PLC control system with inverter |
8 | Shaft diameter | 75mm |
9 | Roller station | 15 rows, depend on your panel profile drawing |
10 | Roller | high grade 45# steel, hard chrome plating |
11 | Working time | 24 hours |
12 | workers | 1-2 only |
13 | Cutting head material | Cr 12 mould steel with quenched treatment |
14 | Voltage | 380V 3Phase 50Hz or as your required |
15 | Weight | 3.5T |
16 | The machine size | 7000mm*1500mm*1500mm |
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
Component
NO. | Item | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main roll forming machine | set | 1 |
3 | PLC control box | set | 1 |
4 | Supporter table | set | 1 |
Workflow
Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table
4.About our company
Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
Packing and shipping
Customer visit
welcome visit our factory ,kindly please send your details quotation
t'sapp:008618231723279
