color steel roof tile ridge cap flashing making machine

color steel roof tile ridge cap flashing making machine

We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,Slitting production line,C/Z purlin machine ,corrugated sheet machine,shutter door machine, floor decking machine and other associated equipment.
Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.

1.Panel drawing according to your request

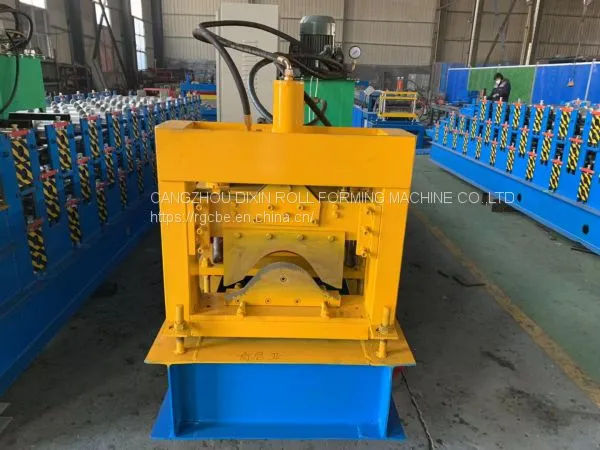

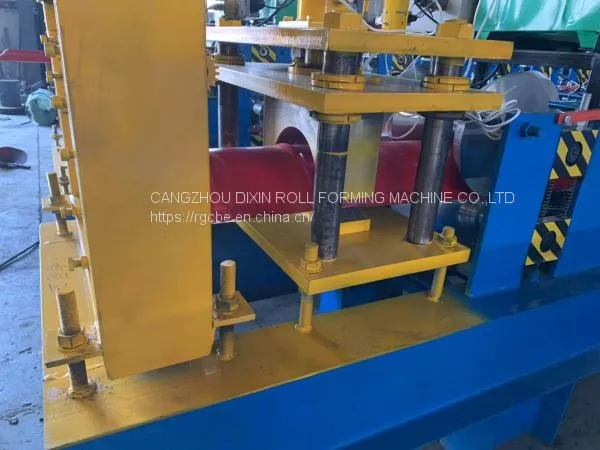

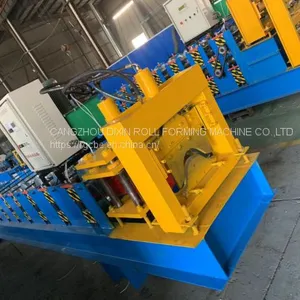

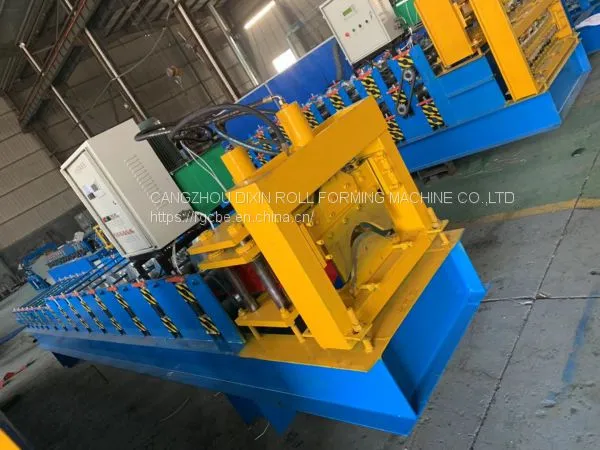

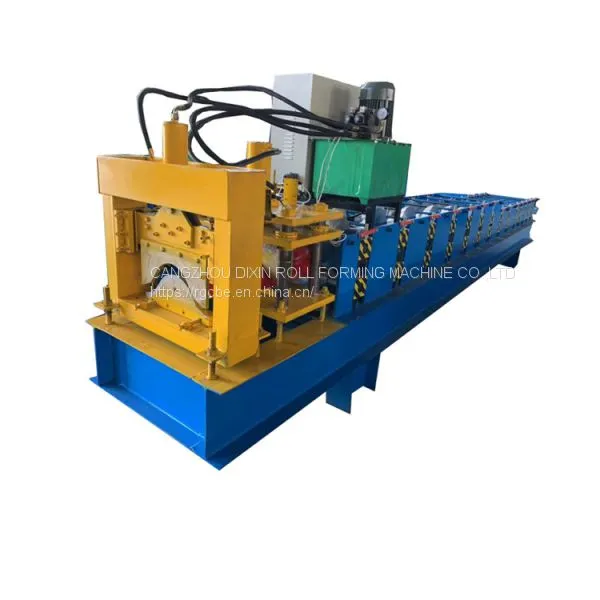

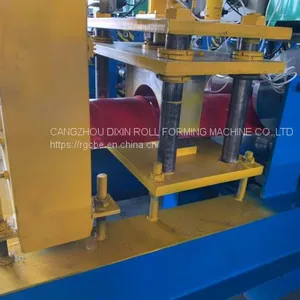

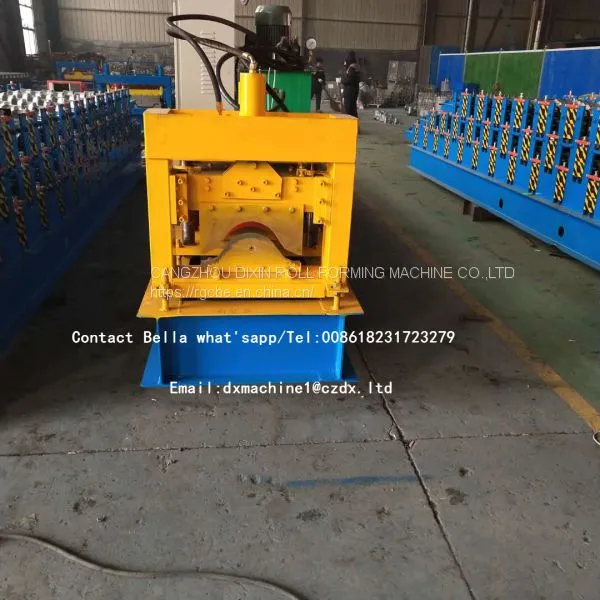

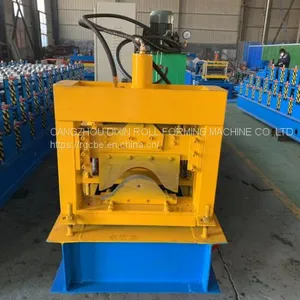

2.some machine pictures for your reference.

3.Machine Technique parameters

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-0.8mm

(3) Effective width: as design

(4) Feeding width:as design

(5) Main motor power: 4kw

(6) Pump power: 4kw

(7) Shaft diameter: 75mm

(8) Forming steps: 13 steps

(9) Roller material: 45# forged steel, with hard chrome plating

(10) Main frame: 300H steel

(11) Medium plate thickness: 16mm

(12) Control systerm: Delta PLC computer control with touch screen

(13) Cutting blade material:Cr12

(14) Speed:about :3-5meter/min

(15) Drived by Chain:1 inch

(16) Machine size (mm):6500*1000*1300mm

(17) Machine weight: about 3 ton

4.About our company

Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

Packing and shipping

Customer visit

welcome visit our factory ,kindly please send your details quotation

t'sapp:008618231723279
