Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine

Name: Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine
Brand: dixin
SKU: 161252891
Availability: InStock

Cangzhou Dixin Roll Forming Machine Co.,ltd

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine thumbnail-1

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine thumbnail-2

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine thumbnail-3

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine thumbnail-4

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine thumbnail-5

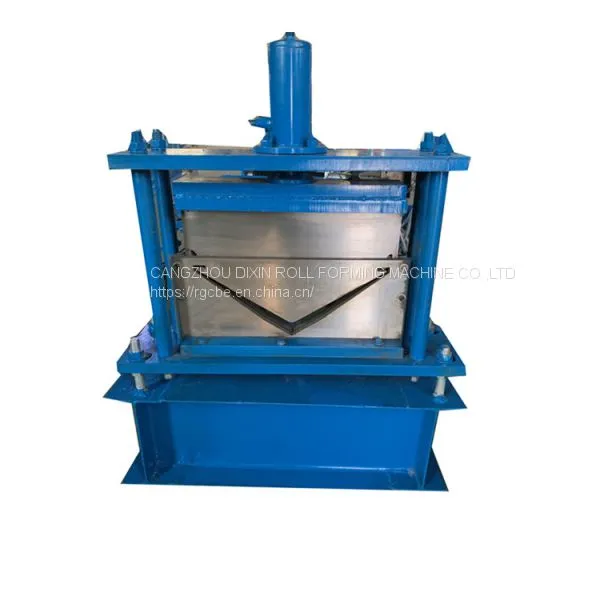

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine photo-1

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine photo-2

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine photo-3

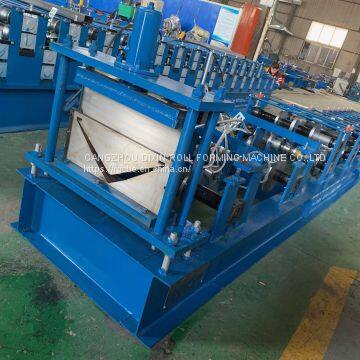

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine photo-4

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine photo-5

US$ 6000 - 7500 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

dixin

Place of Origin:

China

Model Number:

as machine

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Brand Name dixin

Place of Origin China

Model Number as machine

Use Roof

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 YEARS

Weight 3TON

Dimension(L*W*H) 6500*1000*1300MM

Production Capacity 8-12m/min

Condition New

Voltage 380v,3phase

Power(W) 8kw

Type Tile Forming Machine

Tile Type Colored

Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine

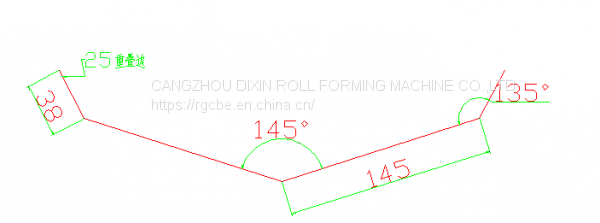

1.Panel drawing according to your request

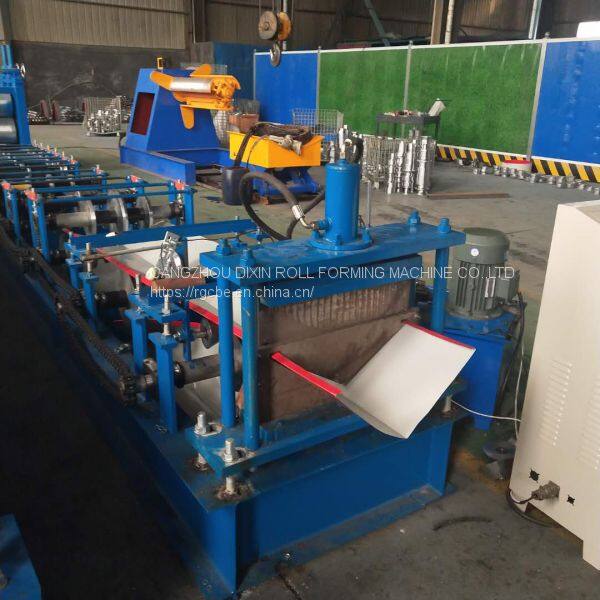

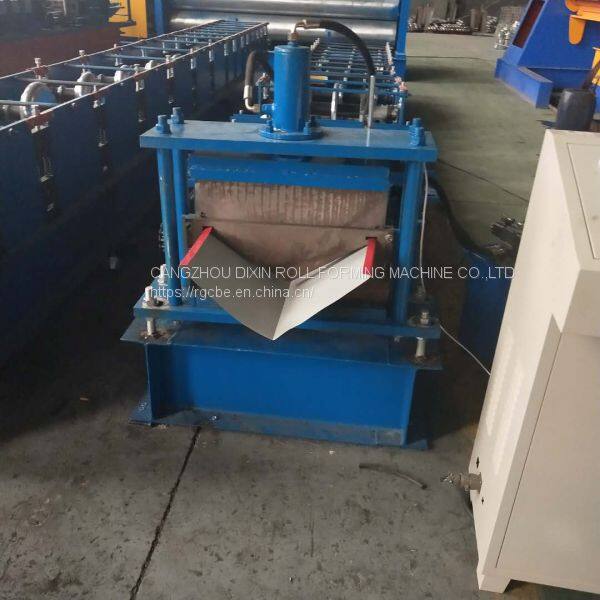

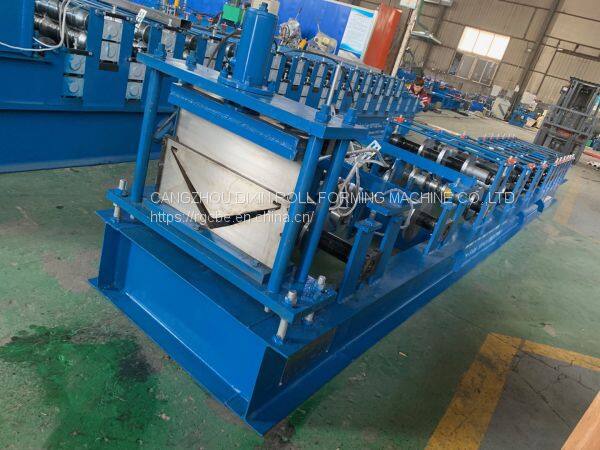

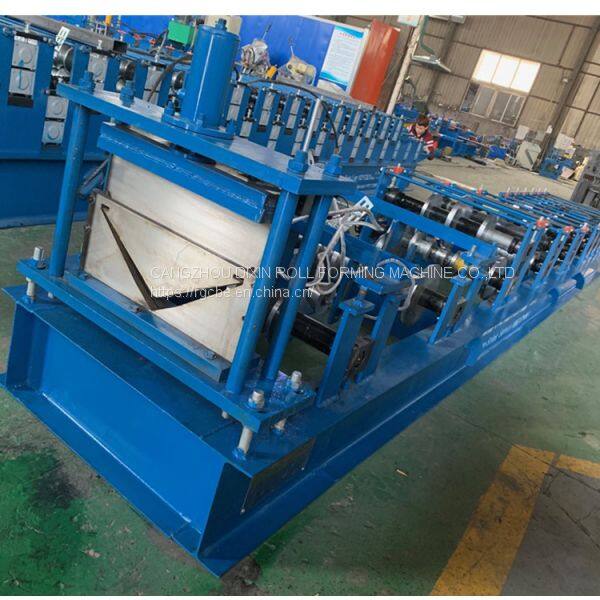

2.some machine pictures for your reference.

3.Machine Technique parameters

Suitable steel plate	Type	Color steel plate
	thickness	0.3-0.8mm
	Feeding width	As users needs
	Effective width	As users needs
Production speed	10-12m/min
Roller stand	14 rows
Diameter	60mm
Main power	4kw
Pump power	4kw
Side panel of machine	16mm
Roller material	Carbon Steel 45#
Blade material	Cr12, quenched
Control system	PLC control
Voltage	380V 50Hz 3phases(changeable as needs)
Main structure of the machine	300mm H-Beam

Component

NO.	Item	Unit	Qty
1	Manual decoiler	set	1
2	Main roll forming machine	set	1
3	PLC control box	set	1
4	Supporter table	set	1

Workflow

Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table

4.About our company

Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

Packing and shipping

Customer visit

welcome visit our factory ,kindly please send your details quotation

t'sapp:008618231723279
