High Attractive Price Rock Impact Crusher Made in China

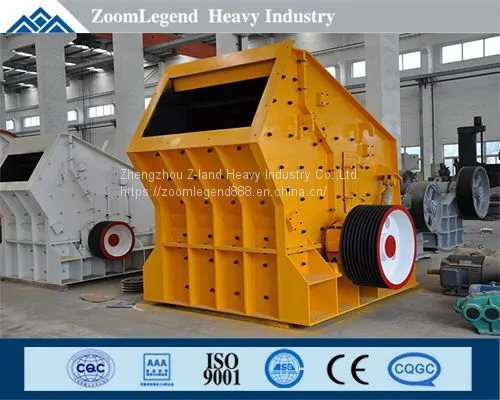

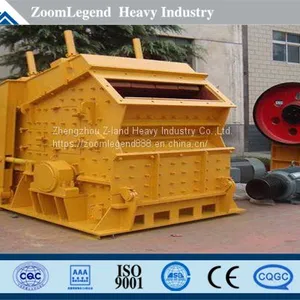

High Attractive Price Rock Impact Crusher Made in China thumbnail-1

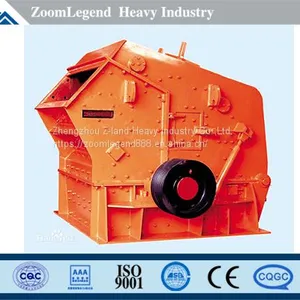

High Attractive Price Rock Impact Crusher Made in China thumbnail-2

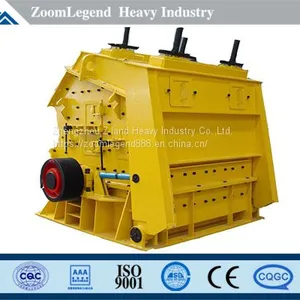

High Attractive Price Rock Impact Crusher Made in China thumbnail-3

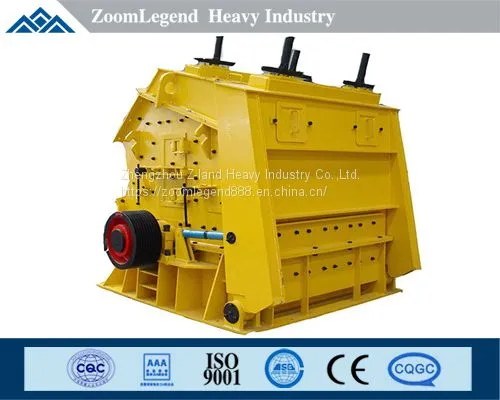

High Attractive Price Rock Impact Crusher Made in China photo-1

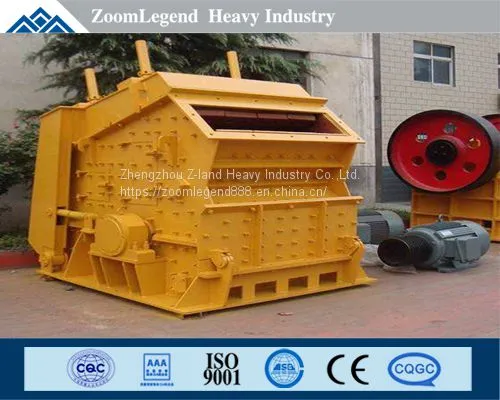

High Attractive Price Rock Impact Crusher Made in China photo-2

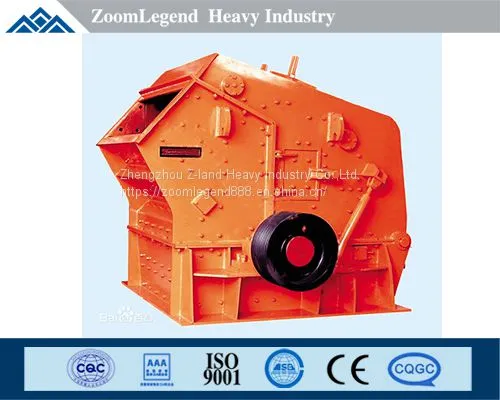

High Attractive Price Rock Impact Crusher Made in China photo-3
US$ 6800 - 9800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZoomLegend
Place of Origin:
China
Model Number:
DFY0705
Contact Supplier Request Quote Chat Now
Zhengzhou Z-land Heavy Industry Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,Shanghai Port
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZoomLegend
Place of Origin China
Model Number DFY0705
Type Impact Crusher
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 4400kgs
Dimension(L*W*H) 750*500mm
Application used for crushing process in mining, railway, energy, cement, chemical industry, construction and other industries
Condition New
Power(W) 15-30kW
Motor Type AC Motor
Capacity(t/h) 10-25t/h

Product Introduction

Hard rock impact crusher has multi-chamber even crushing compared to traditional machines, suitable for crushing hard rocks. The whole plate structure makes particles small and cubic without fissures inside. The low feeding inlet makes it convenient for the production line placement and increases the feeding size. The full-hydraulic device starts up and it's easy for maintenance and renewal of wearing parts. It's mainly applied to secondary crush materials with compressive strength of no more than 320Mpa in the the high grade road, hydropower and construction industries.



Working Principle

It's mainly composed of the base, middle box, back rack, rotor, ratchet flip startup device. Driven by the V-belt, materials are crushed by the hammer on the rotor and are thrown to the toggle plate and then will rebound to the hammer for recrushing. Repeatedly, materials will continuously be crushed to the required sizes. They enter from the first feeding inlet to the first crushing chamber and then to the second crushing chamber. When the size of ores is smaller than the gap between the hammer and the impact plate, materials will be discharged from the lower part of the machine which become finished products.

Performance Characteristics

1. It adopts keyless connection, featured by unique structure, advanced design, reliable performance, stable operation and low energy consumption; the perfect combination of the heavy-duty rotor design, wear-resistant hammer and the crushing chamber design improves the productivity and the quality and reduces the cost and the consumption of abrasive components. Unique hammer fixing device ensures higher reliability of hammer. The impact part is set with spring adjustment structure. When the slag enters into the chamber, it will play the role of tramp iron protection to guarantee the security of equipment.

2. The optimized structure offers bigger chamber and granularity. Meanwhile, the moment of inertia of the rotor is increased to offer higher size reduction ratio and output. The machine is highly-efficient and energy-saving with cubic products.

3. The hammer is fixed on the rotor by a set of wedge with larger torque. More contact between the hammer and the rotor removes the space between them and reduces the probability of the fracture of the hammer. High-quality wear-resistant materials such as high chromium iron are adopted to improve the durability of abrasive parts (such as hammer, impact liner and frame side liner).


Model

Model

Content

P

Crusher

F

Impact

Y

Rock

Rotor Diameter, dm

Rotor Length, dm


Technical Parameter

Model diameter length

feed siz

e (mm)

 discharge size (mm)

power

(kw)

weight

(kg)

PFY-0504

500

400

30~100

4~10

7.5~15

≦2000

PFY-0607

640

740

30~100

10~20

22~37

≦4400

PFY-0705

750

500

35~120

10~25

15~30

≦4400

PFY-0807

850

700

40~150

15~30

30~55

≦8900

PFY-1007

1000

700

50~200

25~60

37~90

≦10500

PFY-1010

1000

1000

60~250

30~100

55~110

≦13900

PFY-1013

1000

1300

80~250

50~120

110~185

≦14500

PFY-1210

1250

1050

100~300

60~140

110~185

≦16000

PFY-1212

1250

1250

100~300

80~160

132~185

≦21000

PFY-1214

1250

1400

120~300

80~180

132~200

≦21500

PFY-1310

1280

1030

120~300

70~150

132~200

≦19000

PFY-1315

1300

1500

150~350

100~250

180~315

≦23000

PFY-1320

1300

2000

150~350

200~350

300~400

≦26000

PFY-1415

1400

1500

200~400

250~400

300~400

≦26000

PFY-1622

1600

2200

200~400

400~600

450~560

≦101000

PFY-1822

1800

2200

250~500

500~800

560~710

≦118000

te 1: The capacity is determined based  on the following conditions:

a) Compressive strength≦160MPa;

b) Surface moisture ≦2%;

c) Continuous and even feeding within the  rotor length;

Note 2: The specifications in the chart  can be adjusted according to the market needs.

Note 3: According to the specified  capacity scope, series of products with different discharging granularity can  be produced to satisfy the requirements of clients.

Instructions

1. Check whether there is ore bed inside the vortex crushing chamber through the observation door. If there isn't, the materials in the chamber should be no more than 25mm. And the ore bed will be forced until materials can flow automatically.

2. The feeding granularity is strictly in accordance with the specifications. It's not allowed for materials larger than the specified size to enter into the crusher, or it will lead to the imbalance and over-abrasion of the impeller which will further cause the jam of the impeller runner and the center feed pipe. So it must be cleared in time if there are lumpy materials.

3. Looking from the feeding inlet, the rotary direction of the impeller should be anticlockwise or the wiring should be adjusted.

4. Operators cannot stand within the inertia force line when it runs. The installation of switches should be kept away from the position. It's forbidden to check the situation by opening the access door, adjust, clean or maintain the machine in case of danger.

5. There should be no one there in two moving directions of rear box rack when using the hydraulic open-close upper cover system. The block should be placed under the bracket when it starts up and other work can only be underway after reliable and safe operation.

6. It's not allowed to feed indestructible materials in case of damaging the machine. No overload operation is allowed when it runs.

7. The electricity should be firstly cut off when repairing the impact crusher.
