Product Introduction

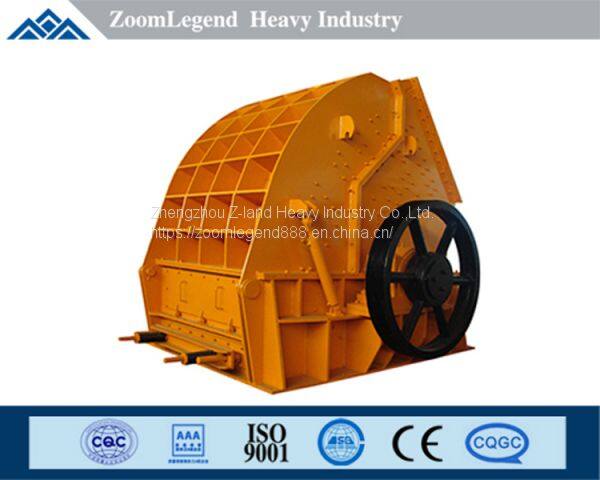

Limestone hammer crusher is the most ideal equipment to crush limestone. DPC single stage hammer crusher can crush lumpy ores into required granularity once only, which replaces traditional two-stage crushing. It not only simplifies the process flow but also saves the production cost. It's exclusively used to crush materials like limestone, gypsum and sand.
Working Principle
It crushes materials mainly by means of the impact. After entering into the crusher, materials are crushed being impacted by the speedy hammer. Then they will rush fast to the baffle and the diagrid after gaining kinetic energy from the hammer. Meanwhile, the mutual collision between materials and crushing make materials smaller than the gap between diagrids discharge while larger ones will be impacted, ground, pressed and crushed on the diagrid by the hammer until they meet the required size.
Performance Characteristics
1. The hammer is cast by new technology with abrasion and impact resistance.
2. The granularity can be adjusted to meet the consumers' requirements.
3. Closed structure has reduces the dust pollution.
4. Attractive appearance, compact structure, less abrasive components, convenient maintenance.
Model
Model |
Content |
P |
Crusher |
C |
Hammer |
K is reversible type, Y is general type |
|
Rotor Diameter, dm |
|
Rotor Length, dm |
Technical Parameter
Model |
Basic Parameters |
|||||||
Rotor Diameter mm |
Rotor Length mm |
Capacity t/h |
Motor Power kw |
Feeding Granularity mm |
Discharging Granularity mm |
Rotor Speed r/mm |
Weight t |
|
PCK-0606 |
600 |
600 |
7.5~15 |
45 |
60 |
3 |
1250 |
—— |
PCK-0808 |
800 |
800 |
25~35 |
90 |
80 |
3 |
1250 |
—— |
PCK-1010 |
1000 |
1000 |
50 |
280 |
80 |
3 |
1250 |
—— |
PC-0404 |
400 |
400 |
2.5~5 |
7.5 |
100 |
10 |
1450 |
0.8 |
PC-0604 |
600 |
400 |
12~15 |
22 |
100 |
15 |
1000 |
1.15 |
PC-0806 |
800 |
600 |
20~25 |
55 |
200 |
15 |
980 |
3.87 |
PC-0808 |
800 |
800 |
35~45 |
75 |
200 |
15 |
980 |
4.34 |
PC-1010 |
1000 |
1000 |
60~80 |
132 |
200 |
15 |
1000 |
7.6 |
PC-1212 |
1250 |
1250 |
100 |
180 |
200 |
20 |
750 |
19 |
PC-1412 |
1420 |
1194 |
110~130 |
250 |
250 |
20 |
735 |
23.5 |
PC-1414 |
1400 |
1400 |
170 |
280 |
250 |
20 |
740 |
26.3 |
PC-1616 |
1600 |
1600 |
250 |
480 |
350 |
20 |
600 |
34 |
PC-1818 |
1800 |
1800 |
300~500 |
480~560 |
900 |
25 |
__ |
60 |
PCY-2018 |
2010 |
1750 |
350~450 |
500~630 |
1000 |
25 |
375 |
__ |
PCY-2020 |
2000 |
2000 |
300~400 |
630 |
1100 |
25/80 |
375 |
152 |
PCY-2022 |
2010 |
2227 |
450~650 |
800~1000 |
1500 |
80 |
375 |
136.7 |
PCY-2030 |
2000 |
3000 |
700 |
1000 |
1500 |
80 |
375 |
185 |
PCY-2225 |
2200 |
2485 |
1200~1400 |
1250~1400 |
1800 |
80 |
375 |
190 |
|
Note 1: The rotor diameter refers to the revolving trajectory of the hammer top. Note 2: Capacity refers to the maximum compression 120MPa, the surface moisture of less than 2% and the stacking density 1.6t/m3. | ||||||||
Instructions
1)Installation Instructions
1.The hammer crusher should be installed based on the concrete.
2. A hardwood spacer or other materials for shock absorption should be put in the middle of the hammer crusher and the concrete base to avoid the vibration which will affect the structure when it works.
3. The motor and the center of the rotor axle should be in vertical angle not to damage the elastic sleeve on the shaft coupling and to cause the heat of the shaft.
2)Product Maintenance
1. The elastic sleeve on the shaft coupling should be renewed in time if it's damaged.
2. The adjustment of the granularity can be achieved by altering the form of diagrids or the gap between diagrids with fill block embedded on both ends inside the chute of the diagrid rack.
3. The granularity of products can also be adjusted by altering the gap between the hammer and the diagrid by means of rotating the eccentric shaft.
4. It must be stopped instantly when there's a heavy vibration. After the problem is checked and solved, the machine can be restarted.
5. One side on the impact part of the hammer is worn away, the hammer can be reversed to use the other side.
