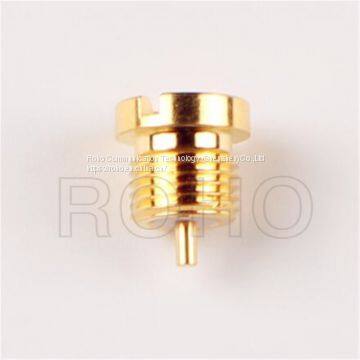

Help CenterStraight Gold Plated Female Jack MCX RF Coaxial Connector for Rg316 58 11 6 Cable
Related Products
-
Straight Female Jack RF Coaxial MCX Connector for Rg316 11 58 6 CableUS$ 0.57 - 3.5MOQ: 100 Pieces -
RF Coaxial MCX ConnectorUS$ 0.55 - 4.5MOQ: 100 Pieces
-
MCX Female Connector for PCB RF Connector MountUS$ 0.37 - 2.5MOQ: 100 Pieces
-
RF Coaxial MCX Male Plug Right Angle RF Cable ConnectorUS$ 0.37 - 2.5MOQ: 100 Pieces
-
Right Angle Crimp Type MMCX Male Connector for Rg174/Rg316US$ 0.57 - 3.5MOQ: 100 Pieces
ELECTRICAL DATA | |
Impedance | 50Ω |
Frequency range | DC-6GHz |
Dielectric withstanding voltage (at sea level) | ≥750Vrms,50Hz |
Working voltage | ≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
Insulation resistance | ≥ 10000 mΩ |
Contact resistance | Inner conductor: ≤5mΩ |
Outer conductor: ≤1mΩ | |
RF leakage(measured at 1GHZ) | Flexible: ≥60dB |
Semi-rigid cable: ≥70dB | |
MECHANICAL DATA | |
Engagement force | ≤25Nm /5.6lbs |
Disengagement force | ≥8N-20N / 1.8 lbs-4.5lbs |
Contact captivation | ≥10N / 2.3 lbs |
Durability (matings) | ≥500 |
ENVIRONMENTAL DATA | |
Temperature range | -55°C to +155°C |
MATERIAL DATA | |
Bodies | Brass--Au plated |
Pin contacts | Brass--Au plating |
Socket contacts | Coppper beryllium alloy / Phosphor bronze--Au plating |
Crimp ferrules | Brass--Au plating |
Insulator | PTFE |
