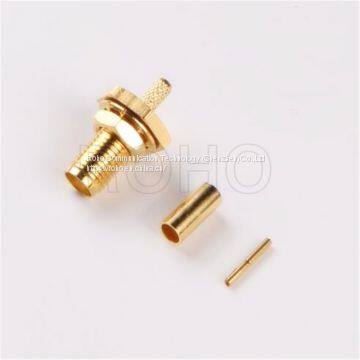

Help CenterGold Plated Female Jack Bulkhead Solder RF SMA Connector for Rg405 Cable
Related Products
-
SMA Plug RF Connector Coaxial Connector Straight TypeUS$ 0.57 - 3.5MOQ: 100 Pieces -
Chrome Plated RF Coaxial SMA Connectors for CableUS$ 0.57 - 3.5MOQ: 100 Pieces
-
RF Edge Mount SMA Female ConnectorUS$ 0.57 - 3.5MOQ: 100 Pieces
-
Male Crimp RF Coaxial SMA Connector for Rg142 CableUS$ 0.57 - 3.5MOQ: 100 Pieces
-
Right Angle Male SMA to Female SMA RF Switching ConnectorUS$ 0.57 - 3.5MOQ: 100 Pieces
ELECTRICAL DATA | |
Impedance | 50Ω |
Frequency range (for connector interface) | DC～18GHz |
Dielectric withstanding voltage (at sea level) | ≥750-1500V,50Hz (depending on cable) |
Working voltage (at sea level) | ≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M) |
Insulation resistance | ≥ 5000 mΩ |
Contact resistance | Inner conductor: ≤3mΩ |
Outer conductor: ≤2.5mΩ | |
RF leakage(2-3GHZ) | Flexible: ≥60dB |
Semi-rigid cable: ≥100dB | |
MECHANICAL DATA | |
Coupling nut torque | 0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs |
Coupling nut retention force | ≥270N / 60.7 lbs |
Contact captivation axial | ≥27N / 6.1 lbs |
Durability (matings) | ≤500 |
ENVIRONMENTAL DATA | |
Temperature range | -65°C to +165°C |
MATERIAL DATA | |
Bodies, outer contacts | Beryllium copper--Au plating |
Stainless steel--Passivation | |
Brass--Au plated / ternary alloy plating | |
Phosphor bronze --Au plating | |
Pin contacts | Brass/Beryllium copper--Au plating |
Socket contacts | Beryllium copper / Phosphor bronze--Au plating |
Crimp ferrules | Brass--Au plating |
Insulator | PTFE |
Gaskets | Silicone rubber |
