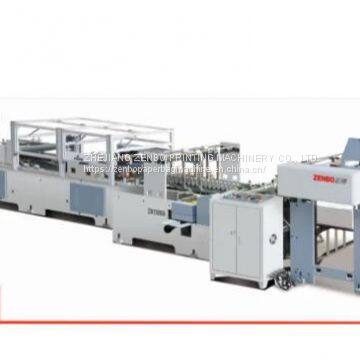

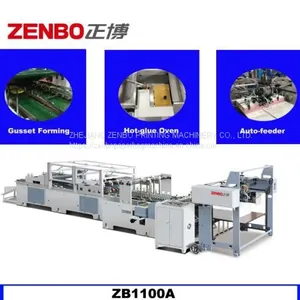

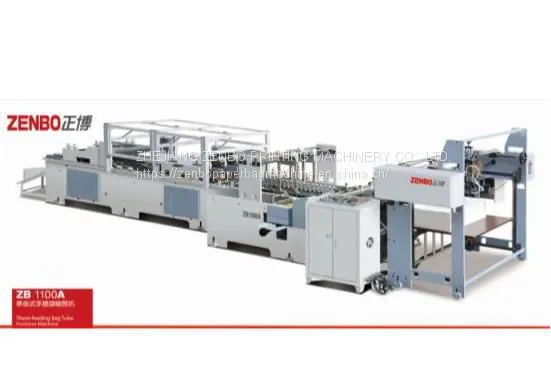

ZB1100A Automatic Sheet Feeding Bag Tube Forming Machine
Company Introduction
Zhejiang Zenbo Printing Machinery Co., Ltd. Established in 2009. During the 10 years development period, we alwasys insist on “Independent research and evelopment with technological innocation”. As the Naitonal high-tech enterprises, Zenbo has undertaken many province and city level research projects. We are also the first unit to draft the sheet feeding paper bag making machine industry standard in China. Zenbo always devote ourself to the quality and brand building, we have passed ISO9001 quality management system certification etc. As one of the patent demonstration enterprises, all our products have the independent intellectual property rights. To upgrade our products intelligent technology level, Zenbo Intelligent Center was founed in 2017. Our machines have been sold to over 50 countries and regions, accompanied by customers’ acceptance and praise, Zenbo has been a well-know paper bag making machine brand in the world.
Zenbo insist on “good service is the pre-condiction of sales” as our service concept. Quality is our first priority. We constantly absorb and train senior modern enterpsie management personnel. Promoting brand culture, imporving users’ environment and creaing added value are the main goals of Zenbo. It is the responsibitlity of Zenbo to take care of every customer. We Zenbo people has the value of trust, transparency, respect, passion. In keeping with this concept, our aim is to ensure a balance between lif, work, and a pleasant work environment. Considering global resource wastage and energy consumption optimization, we are committed to providing more environmentally friendly products.
Product Introduction

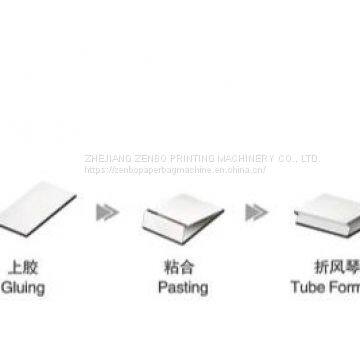

ZB1100A sheet feeding bag tube forming machine is suitable for mass production of the paper bags with special paper and other different types of polished and laminated paper (need creased sheet paper as raw material). This equipment can be your first choice for processing high-grade and luxury handbags. The paper is automatically delivery by feeder (speed can be regulated by variable frequencies), then automatically positioned by the line aligning system, eventually output paper bag tube through gluing, tube folding and impressing process. This machine uses a number of proprietary technologies by which handbag forming precise can be higher, quicker and control adjustment more convenient.

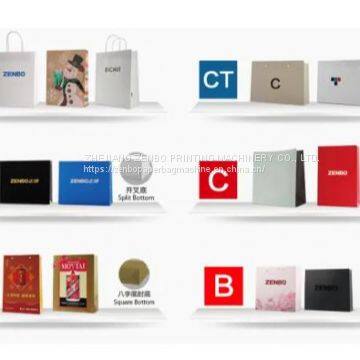

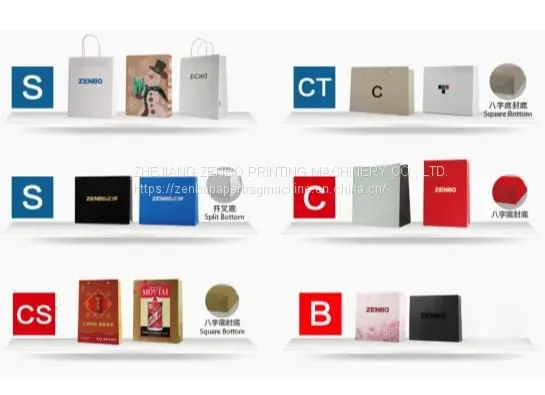

Suitable Paper
Suitable Paper: Kraft paper, white board paper and ivory board need lamination and die-cutting in advance.
Technical Parameters
Input Max.Size(Sheet) |
1020x600mm |
Input Min.Size(Sheet) |
540x350mm |
Sheet Weight |
150gsm-350gsm |
Feeding |
Automatic |
Bottom Width |
60-150mm |
Bag Width |
230-350mm |
Tube Length |
350-540mm |
Speed |
50-80pcs/min |
Working Power |
6.5KW |
Machine Size |
8075x1960x1730mm |
Total Weight |
4T |
Glue type |
Hot melt glue with heating oven |
