Help CenterZB1260SF Fully Automatic Sheet Fed Shopping Gift Garment Paper Bag Sack Making Machine With Flat Handle
Related Products
-
ZB1260S Fully Automatic Sheet Fed Shopping Gift Garment Paper Bag Sack Making Machine With Twisted HandleUS$ 360000 - 393000MOQ: 1 Set -
ZB1100S Fully Automatic Sheet Fed Shopping Gift Garment Paper Bag Sack Making Machine With Twisted HandleUS$ 356000 - 393000MOQ: 1 Set
-
ZB700S Fully Automatic Sheet Fed Shopping Gift Garment Paper Bag Sack Making Machine With Twisted HandleUS$ 350000 - 393000MOQ: 1 Set
-
ZB1250S-450 Sheet-fed Paper Bag Making Machine Split Square BottomUS$ 280000 - 283000MOQ: 1 Set
-
ZB1200S-430 Sheet-fed Paper Bag Making Machine With Bottom Card Inserting DeviceUS$ 310000 - 330000MOQ: 1 Set
ZB1260SF-450 Fully Automatic Sheet Feeding Paper Bag Making Machine
Company Introduction
Zhejiang Zenbo Printing Machinery Co., Ltd. Established in 2009. During the 10 years development period, we alwasys insist on “Independent research and evelopment with technological innocation”. As the Naitonal high-tech enterprises, Zenbo has undertaken many province and city level research projects. We are also the first unit to draft the sheet feeding paper bag making machine industry standard in China. Zenbo always devote ourself to the quality and brand building, we have passed ISO9001 quality management system certification etc. As one of the patent demonstration enterprises, all our products have the independent intellectual property rights. To upgrade our products intelligent technology level, Zenbo Intelligent Center was founed in 2017. Our machines have been sold to over 50 countries and regions, accompanied by customers’ acceptance and praise, Zenbo has been a well-know paper bag making machine brand in the world.
Zenbo insist on “good service is the pre-condiction of sales” as our service concept. Quality is our first priority. We constantly absorb and train senior modern enterpsie management personnel. Promoting brand culture, imporving users’ environment and creaing added value are the main goals of Zenbo. It is the responsibitlity of Zenbo to take care of every customer. We Zenbo people has the value of trust, transparency, respect, passion. In keeping with this concept, our aim is to ensure a balance between lif, work, and a pleasant work environment. Considering global resource wastage and energy consumption optimization, we are committed to providing more environmentally friendly products.
Product Introduction
Brand new ZB1260SF-450 Fully automatic sheet feeding paper bag making machine (independent innovation) adopts international advanced production process and management system. Humanized intelligence operation interface combines with PLC and Servo control system make this machine’s technology, performance and production efficiency achieve the leading level in the world.
ZB1260SF-450 is a fantastic fully automatic paper bag making machine which can in-line produce both twisted rope handle and flat handle. This machine can produce 3 types paper bag, 3 different crafts as below:
1.Paper handle making、handle pasting、top folding、tube forming、gusset forming、 square bottom open、bottom gluing、bottom pasting、compaction output.
2.Paper handle making、handle pasting（without top folding)、tube forming、gusset forming、 square bottom open、bottom gluing、bottom pasting、compaction output.
3. Reinforce card making、reinforce card pasting、top folding、tube forming、gusset forming、 hole punching、square bottom open、bottom gluing、bottom pasting、compaction output.
This machine equips advanced compact servo handle cut-off system to replace the traditional complex mechanical structure, which reduced the setup time and supplied a comfortable operation space. The bag making machine and handle making unit have separate servo control systems to avoid the handle waste. Intelligent switch between twisted rope handle and flat handle making supplies customers a wider range for various business.
Suitable Paper
Kraft paper, art paper (including film laminated paper)

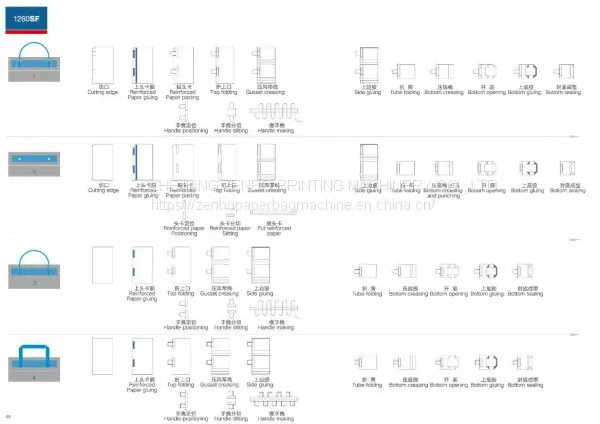

Technological Process
Technical Parameters
Bag type |
Type 1 |
Type 2 |
Type 3 |
Type 4 |
Input Max. Sheet Size |
1200x600mm |
|||
Input Min. Sheet Size |
620x320mm |
|||
Sheet Weight |
120-190gsm |
|||
Bag Width |
220-450mm |
|||
Botom Width |
70-170mm |
|||
Bag Length |
235-490mm |
235-540mm |
235-490mm |
235-490mm |
Top Folding Width |
40-60mm |
___________ |
40-60mm |
40-60mm |
Handle Patch Length |
189mm |
|||
Handle Patch Width |
30-50mm |
|||
Hnadle Patch Weigth |
140-200gsm |
140-200gsm |
250-350gsm |
140-200gsm |
Handle Patch Roll Diameter |
¢1000mm |
|||
Handle Patch Roll Width |
60-100mm |
|||
Paper Rope Diameter |
4-6mm |
4-6mm |
___________ |
Flat rope width 15mm |
Handle Rope Height |
170-190mm |
170-190mm |
__________ |
145mm |
Speed |
40-70pcs/min |
|||
Working Power |
20KW |
|||
Machine Weight |
24.5T |
|||
Machine Size |
18400x5600x2600mm |
|||
Glue Type |
Water soluble cold glue(hot-melt glue) |
|||
