ZB1180AS Automatic Sheet Feeding Bag Tube Forming Machine
Company Introduction
Zhejiang Zenbo Printing Machinery Co., Ltd. Established in 2009. During the 10 years development period, we alwasys insist on “Independent research and evelopment with technological innocation”. As the Naitonal high-tech enterprises, Zenbo has undertaken many province and city level research projects. We are also the first unit to draft the sheet feeding paper bag making machine industry standard in China. Zenbo always devote ourself to the quality and brand building, we have passed ISO9001 quality management system certification etc. As one of the patent demonstration enterprises, all our products have the independent intellectual property rights. To upgrade our products intelligent technology level, Zenbo Intelligent Center was founed in 2017. Our machines have been sold to over 50 countries and regions, accompanied by customers’ acceptance and praise, Zenbo has been a well-know paper bag making machine brand in the world.
Zenbo insist on “good service is the pre-condiction of sales” as our service concept. Quality is our first priority. We constantly absorb and train senior modern enterpsie management personnel. Promoting brand culture, imporving users’ environment and creaing added value are the main goals of Zenbo. It is the responsibitlity of Zenbo to take care of every customer. We Zenbo people has the value of trust, transparency, respect, passion. In keeping with this concept, our aim is to ensure a balance between lif, work, and a pleasant work environment. Considering global resource wastage and energy consumption optimization, we are committed to providing more environmentally friendly products.
Product Introduction

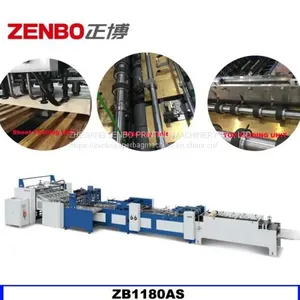

ZB1180AS sheet feeding bag tube forming machine is suitable for digital industry, various type of customized paper tube making. This machine is easy to setup and operation, which bring high efficiency during production. The paper sheet automatic delivery by feeder, automatic positioning by guide and line aligning system, automatic side pasting (both hot-melt glue and cold glue available), top folding (insert pasting), tube forming, automatic gusset forming, compaction bag output. It is a good choice to produce digital industrial, B2C, C2C products, etc flexible individualization order.
Suitable Paper
Suitable Paper: Kraft paper over 150gsm and art paper over 180gsm, Art paper, white board paper, ivory board paper need lamination. All paper needs pre-die cutting in advance.
Technical Parameters
Input Max. Sheet Size |
1120mm*600mm |
Input Min. Sheet Size |
540mm*320mm |
Sheet Weight |
150gsm-300gsm |
Feeding |
Automatic |
Botom Width |
80-150mm |
Bag Width |
180-400mm |
Tube Length |
250-570mm |
Top Folding Depth |
30-70mm |
Working Power |
8KW |
Speed |
50-80pcs/min |
Total Weight |
5.8T |
Machine Size |
12600x2500x1800mm |
Glue type |
Hot melt glue |
