ZB1200CT-430 Automatic Sheet Feeding Paper Bag Making Machine
Company Introduction
Zhejiang Zenbo Printing Machinery Co., Ltd. Established in 2009. During the 10 years development period, we alwasys insist on “Independent research and evelopment with technological innocation”. As the Naitonal high-tech enterprises, Zenbo has undertaken many province and city level research projects. We are also the first unit to draft the sheet feeding paper bag making machine industry standard in China. Zenbo always devote ourself to the quality and brand building, we have passed ISO9001 quality management system certification etc. As one of the patent demonstration enterprises, all our products have the independent intellectual property rights. To upgrade our products intelligent technology level, Zenbo Intelligent Center was founed in 2017. Our machines have been sold to over 50 countries and regions, accompanied by customers’ acceptance and praise, Zenbo has been a well-know paper bag making machine brand in the world.
Zenbo insist on “good service is the pre-condiction of sales” as our service concept. Quality is our first priority. We constantly absorb and train senior modern enterpsie management personnel. Promoting brand culture, imporving users’ environment and creaing added value are the main goals of Zenbo. It is the responsibitlity of Zenbo to take care of every customer. We Zenbo people has the value of trust, transparency, respect, passion. In keeping with this concept, our aim is to ensure a balance between lif, work, and a pleasant work environment. Considering global resource wastage and energy consumption optimization, we are committed to providing more environmentally friendly products.
Product Introduction
ZB1200CT-430 Automatic sheet feeding paper bag making machine (independent innovation) adopts international advanced production process and management system. Humanized intelligence operation interface combines with PLC and Servo control system make this machine’s technology, performance and production efficiency achieve the leading level in the world.
ZB1200CT-430 possess a large number of independent patents, create the high-speed automatic paper bag production. This machine adopts servo system for top reinforced card taking, realize the top reinforced card paste position adjustable. New “half-blade” device ensure bag body trackless. Adopts with PLC and Servo control system, reserve of extensible intelligent port for future system upgrades and remote services.

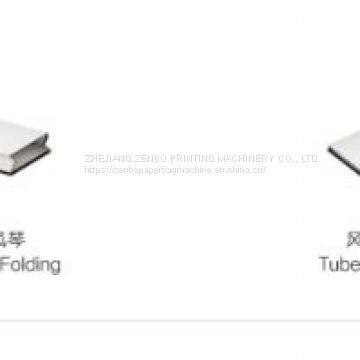

The basic working flow is sheet feeding, creasing, servo top reinforced card taking and pasting, top folding (insert pasting), tube forming, gusset forming, bottom open and gluing, bottom folding and closing, compaction and output.
All these steps increase the bag making efficiency and reduce the setup time, save a lot of labor cost for top reinforced card pasting. Realize automation, intelligent and high efficiency production requirement.
Suitable Paper

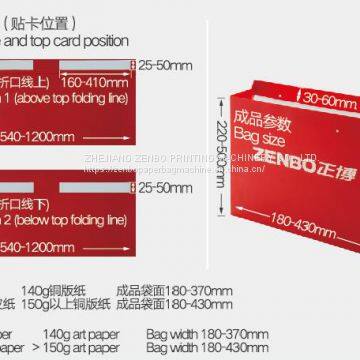

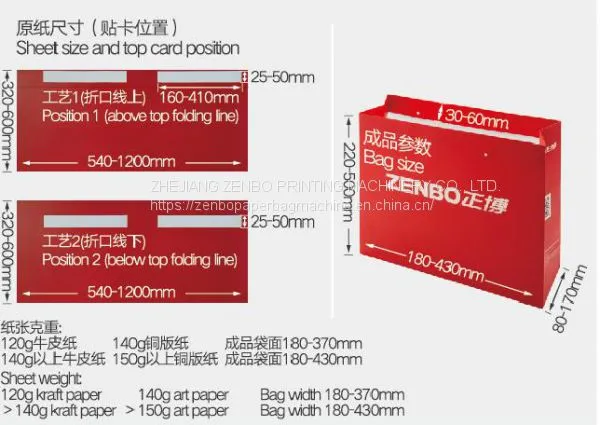

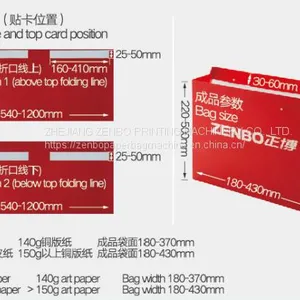

Art paper, white board and ivory board need lamination. Over 170gsm need die-cutting in advance. 120/140gsm kraft paper and 150/157gsm art paper no need die-cutting.
Technical Parameters
Input Max. Sheet Size |
1200x600mm |
Input Min. Sheet Size |
540x320mm |
Sheet Weight |
120-250gsm |
Bag Width |
180-430mm |
Botom Width |
80-170mm |
Bag Length |
220-500mm |
Top Folding Depth |
30-60mm |
Reinforced Paper Length |
160-410mm |
Reinforced Paper Width |
25-50mm |
Reinforced Paper Weigth |
200-500gsm |
Speed |
40-70pcs/min |
Working Power |
16.5KW |
Machine Weight |
16.5T |
Machine Size |
21000x3250x1800mm |
Glue Type |
Water soluble cold glue(hot-melt glue) |
