Help CenterHigh Output & Reasonable Price Lattice Ball Mill for Sale
Related Products
-
Reasonable Price Slag Grinding Mill Made in China for SaleUS$ 18500 - 22000MOQ: 1 Set -
High Quality and Reasonabl Price Steel Slag Ball Mill for Sale in IndiaUS$ 19000 - 23000MOQ: 1 Set
-
Reasonable Price & Good Service Lead Oxide Ball Milling For SaleUS$ 20000 - 22000MOQ: 1 Set
-
Reasonable Price and Good Service Cement Grinding Ball Mill For SaleUS$ 16000 - 20000MOQ: 1 Set
-
High Cost Performance Cement Ball Mill Made in China for SaleUS$ 17000 - 21000MOQ: 1 Set
Instruction
According to the different way of ore discharge, the ball mill can be divided into grid type ball mill and overflow type ball mill, The grid ball mill is widely used in the current market. In the output, efficiency, energy saving, environmental protection and other aspects, The machine has the same type of grinding equipment in the market can not exceed the advantages.

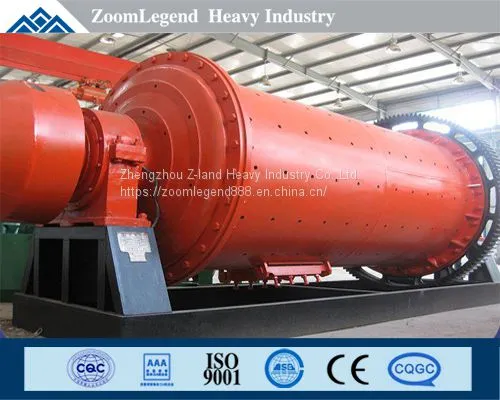

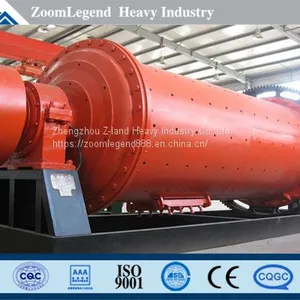

Lattice ball mill is a traditional ball mill which is forced to discharge ore by grid plate. It is the key equipment for crushing after the material is broken. The barrel diameter is 900mm ~ 4500mm. Lattice ball mill can be used for all levels of hardness of ores and materials, used in mineral processing, chemical, cement, construction and other industrial sectors.
Characteristic
1. The discharge port has low pulp surface, which can pass quickly and reduce ore through grinding.
2. Loaded ball, large ball, small ball can be loaded, and the ball will not be discharged, also can form good working conditions.
3. Grind fineness is finer, it is better to use overflow type. coarser when grid type is used.
4. Jacking device for easy maintenance.
5. Smooth and reliable operation.
6. Slow transmission for easy maintenance and start up.
7. Oil mist lubrication device ensures reliable lubrication of large and small gears.
8. The gas clutch starts flexibly.
Technical parameter
Model |
Barrel size |
effective volume of cylinder |
Load material |
Rotary speed R/min |
Power kw |
Discharge ore |
Capacity t/h |
Weight t |
GMQG1530 |
1500X3000 |
4.0 |
8 |
27.6 |
75 |
0.8-0.074 |
2.8-12 |
15.5 |
GMQG1535 |
1500X3500 |
4.6 |
11 |
27.6 |
75-90 |
0.8-0.074 |
3.4-14 |
16.3 |
GMQG1830 |
1800X3000 |
6.5 |
13 |
25.3 |
132 |
0.8-0.074 |
4.8-21 |
28.2 |
GMQG1835 |
1800X3500 |
7.58 |
16 |
25.3 |
160 |
0.8-0.074 |
5.8-25 |
30.8 |
GMQG1840 |
1800X4000 |
8.65 |
17.3 |
25.3 |
185 |
0.8-0.074 |
6.6-28 |
33.4 |
GMQG1845 |
1800X4500 |
9.75 |
19.5 |
25.3 |
210 |
0.8-0.074 |
7.2-31 |
36.2 |
GMQG2122 |
2100X2200 |
6.7 |
14.7 |
23.8 |
160 |
0.8-0.074 |
5.3-24 |
43.2 |
GMQG2130 |
2100X3000 |
9.2 |
17 |
23.8 |
185 |
0.8-0.074 |
6.0-26 |
46.8 |
GMQG2136 |
2100X3600 |
11.0 |
19 |
23.8 |
210 |
0.8-0.074 |
6.5-29 |
49.1 |
GMQG2140 |
2100X4000 |
12.2 |
20.5 |
23.8 |
220 |
0.8-0.074 |
7.2-32 |
50.2 |
GMQG2145 |
2100X4500 |
13.8 |
22 |
23.8 |
250 |
0.8-0.074 |
8.1-36 |
51.8 |
