Product Usage
The split portable high temperature short cavity blackbody furnace is mainly used to calibrate and verify various radiation thermometers, such as optical pyrometers, infrared thermometers and infrared thermal imagers. It is widely used in temperature measurement, optical research, material testing, high energy physics experiments, national defense and military industry, infrared technology and other fields. Our company currently has advanced blackbody technology, a full range of blackbody products with a wide temperature range. The product is small in size, light in weight and easy to carry. It is not only suitable for the calibration of radiation thermometers in laboratories of metrology institutions at all levels, but also can be used for on-site calibration.
Product features
1)Cntroller: integrated with temperature control function. A RS232/485 communication interface is standardly equipped for connecting to the host computer. The host computer writes or receives data to the controller according to the agreed communication format to realize the control function.
2) Automatic temperature rise and temperature control is adopted, which is safe and reliable, with fast heating speed and good temperature stability.
3) The product is more portable and compact. It can meet the special size requirements of customers.
4) The communication interface can be customized RS232
5) The device has a memory function, and it can quickly restore to the previous setting state after restarting, without setting it up again.
Technical Parameters
| Working temperature | 300℃-1000℃ |
| Temperature resolution | 0.1℃ |
| Emissivity | 0.99 |
| Display screen | 4.3 inches (Special requirements can be noted) |
| Temperature fluctuation | |
| Temperature uniformity | No more than ± (0.2℃ and 0.2%t, whichever is greater, t is the radiation source temperature) |
| Cavity diameter | Ф40mm |
| Cavity depth | 100mm |
| Blackbody furnace size | No more than 165mm×165mm×270mm |
| Blackbody furnace weight | ＜6kg |

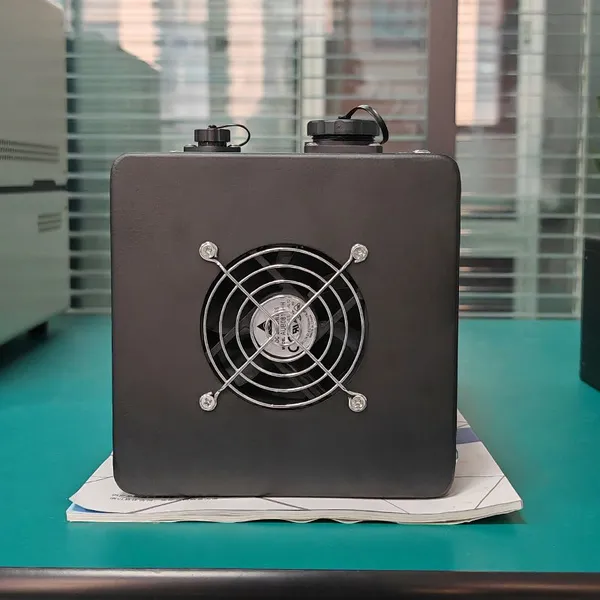

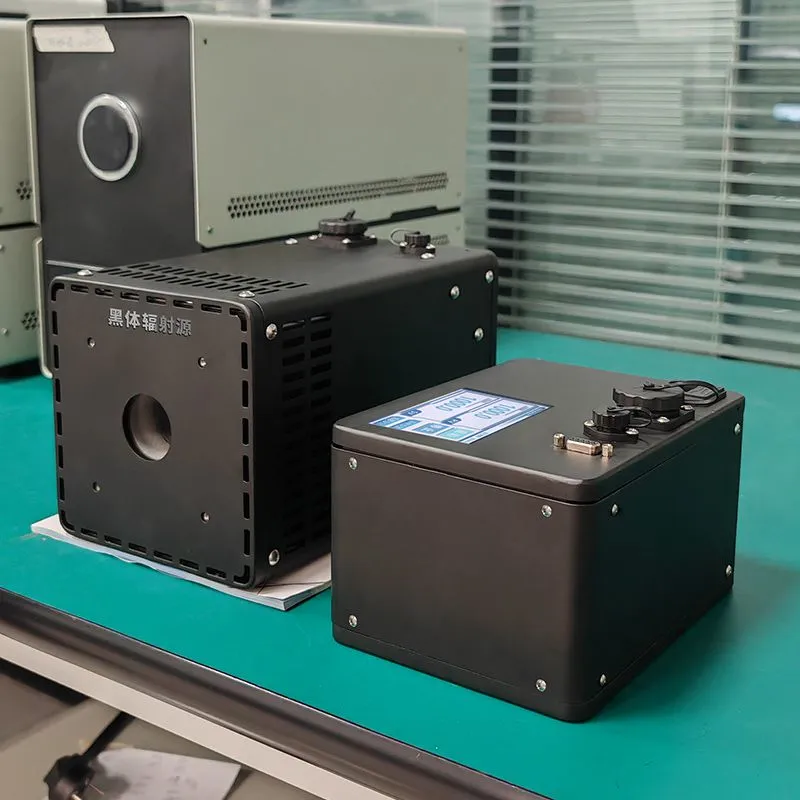

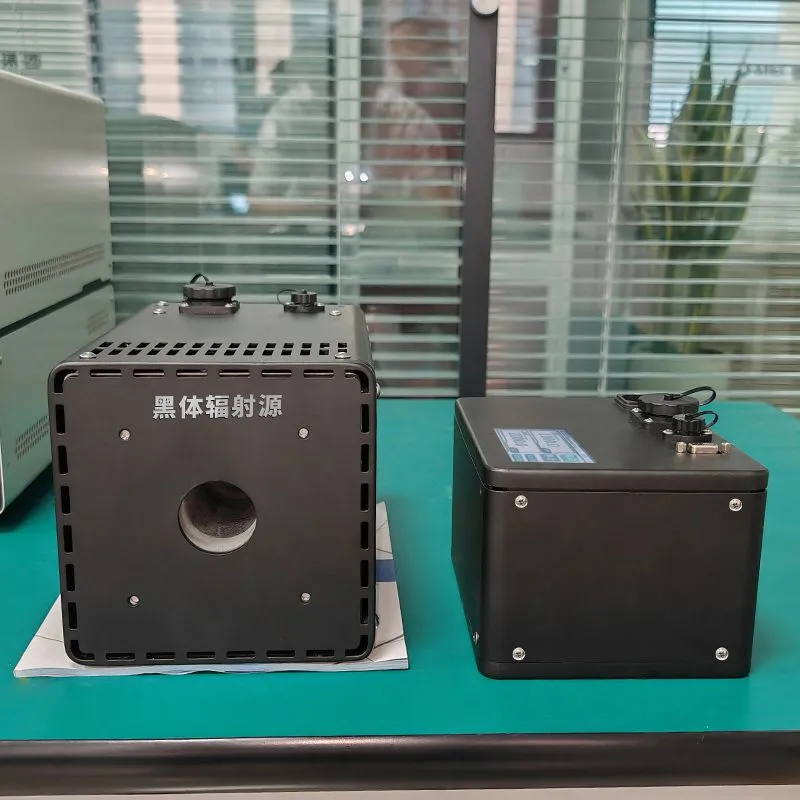

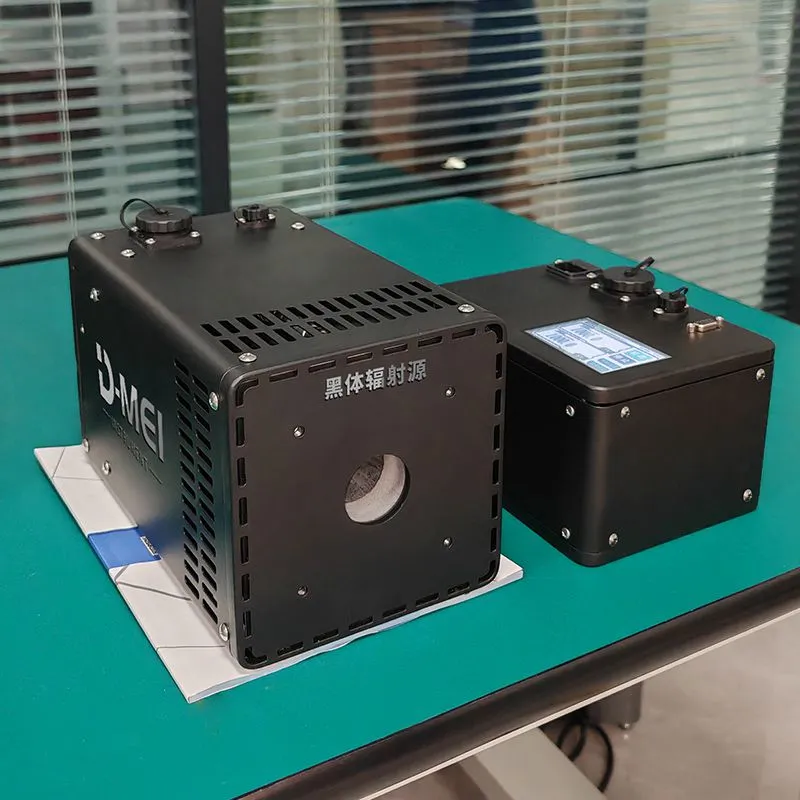

Product pictures
