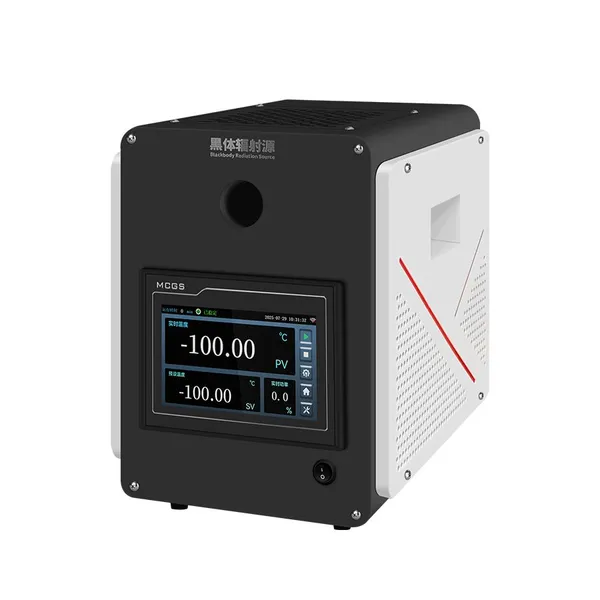

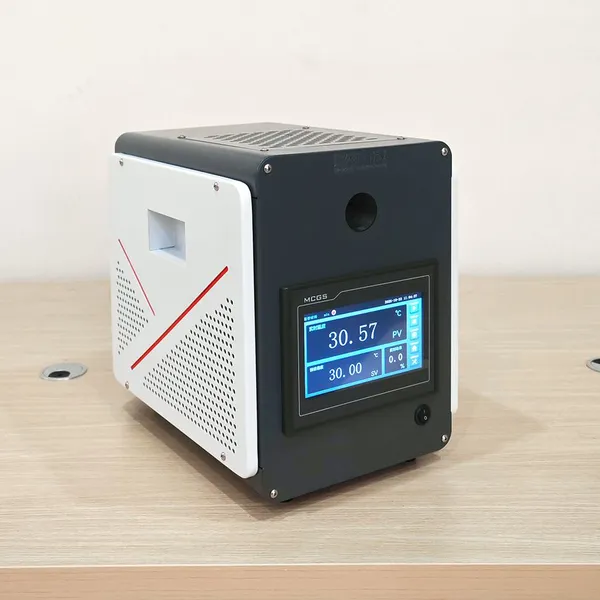

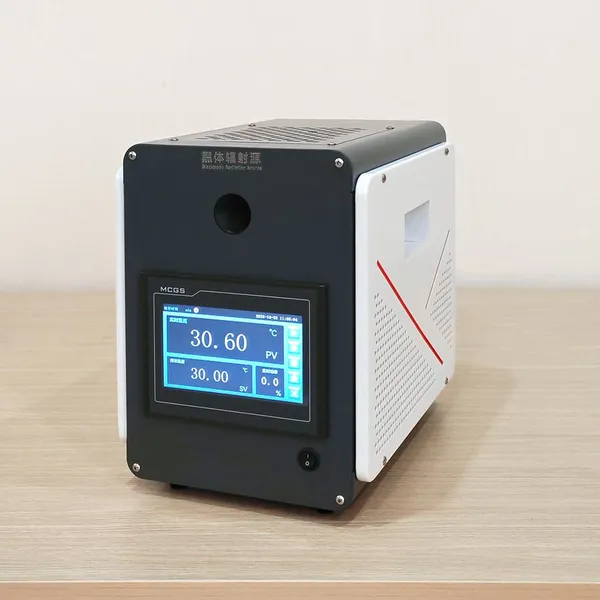

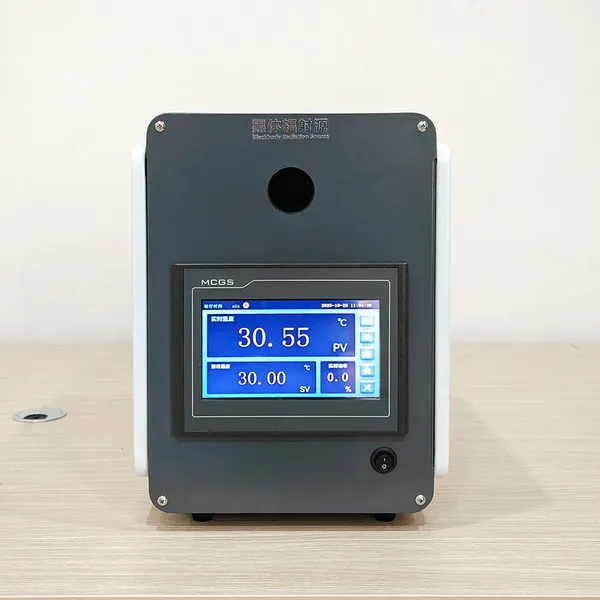

DY-HT1D-100C Ultra-Low Temperature Blackbody Radiation Source



1.Product Introduction

In daily life, we are mostly exposed to temperatures above 0°C, and ordinary blackbody furnaces (ranging from room temperature to high temperatures) are sufficient for our needs, such as calibrating industrial furnace temperature measuring instruments and clinical thermometers. However, in many cutting-edge fields, "low temperature" or even "ultra-low temperature" is the norm, requiring the reliance on cryogenic/ultra-low temperature blackbody furnaces.
For example, spacecraft encounter cryogenic environments in space, and the equipment carried on board must be calibrated on the ground beforehand. Ultra-low temperature blackbody furnaces can simulate the radiation characteristics of these cryogenic environments, ensuring the reliability of measurement data after launch.

2.Product Advantages


1) Easy to use, small size, and lightweight, making it portable and suitable for both laboratory and field calibration.

2) Fast cooling and short stabilization time, suitable for multiple data tests in high and low temperature ranges.

3) Short heating and cooling time; room temperature drops to -100°C in just 40 minutes.

4) Built-in multi-point independent temperature correction function on the screen.

5) Isothermal blackbody cavity with only one cavity opening; cavity opening radiation is uniformly distributed along the spectrum, with an emissivity above 0.995 and a resolution of 0.01.

6) Automatic intelligent adjustment: Includes MH logic intelligent adjustment function and advanced control algorithms with parameter self-tuning function.

7) Programmable control function; the device has 10 different program setting interfaces, one-button operation, convenient and fast, meeting various user testing point requirements and improving user testing efficiency.

8) Customizable communication interface; standard configuration is RS232.


3.Technical parameters

✅Model Name: DY-HT1D-100C
✅Operating Temperature: -100℃ to 40℃
✅Operation Method: Touchscreen Operation
✅Temperature Resolution: 0.01℃/0.1℃
✅Cavity Diameter: Φ40mm (Customizable)
✅Cavity Emissivity: ≥0.995
✅Temperature Stability: ±(0.1-0.2)@30℃, where t is the radiation source temperature (within 10 min)
✅Temperature Uniformity: ±(0.1-0.3)@30℃, where t is the radiation source temperature
✅Power Supply: 220V AC 50/60HZ
✅Power: 800W
