▶ GENERAL DESCRIPTION

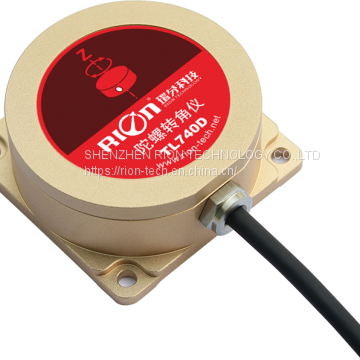

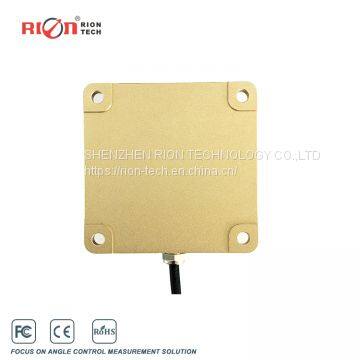

TL740D is RION company newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

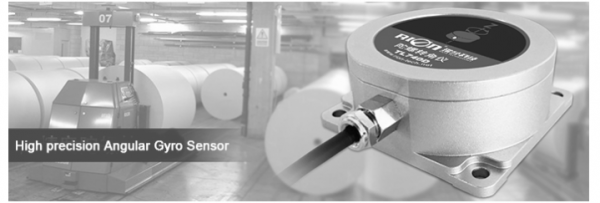

This product is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
▶ KEY FEATURES
● Azimuth angle output ●Strong vibration resistance ●Light weight
●Long life,strong stability ●Cost-effective ●All solid state
●Compact & light design ●RS232/RS485 output optional ●DC9~36V power supply
▶ APPLICATION
●AGV truck ●Car Navigation ●3D virtual reality
●Platform stability ● Auto safety system ●UAV
●Turck-mounted satellite antenna equipment ●Industrial control
● Robot
