10m pneumatic portable lightweight telecommunication mast with tripod
10m pneumatic portable lightweight telecommunication mast with tripod
1.Basic specifications
| Product name | 10m pneumatic portable lightweight telecommunication mast with tripod |
| Material | 6063 aluminum alloy |
| Closed length | 2.6m (Bottom base included) |
| Extended length | 10.00m (Bottom base included) |
| Max.payload | 10kgs |
| Lifting method | pneumatic lifting |
| Color | light brown |
Surface treatment | Phosphoric acid anodizing |
| Section | 5 |
Wind load | 80 km/h |
| Max Working pressure of air compressor | 0.25MPA |
Working temperature | -15--+60℃ |
Lifting time | about 3 mins |
| Air compressor | Power:DC12V 45A pressure:30PSI output volume : about 160L/min |

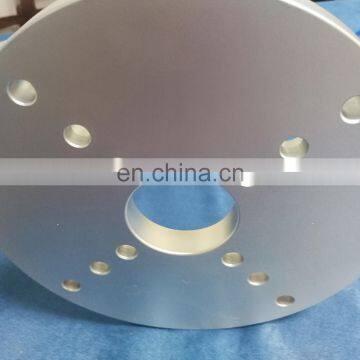

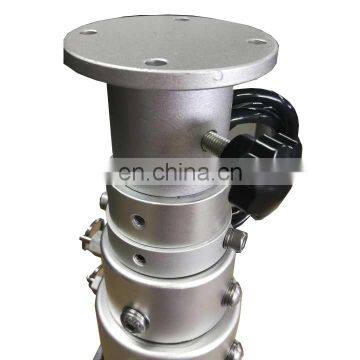

| Diameter of top plate | 150mm, there are four hole diameter 11mm |

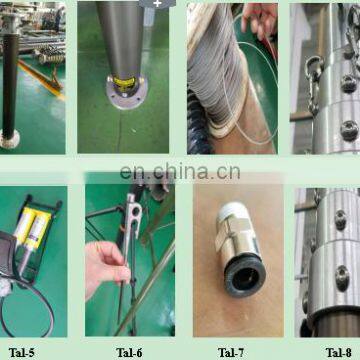

2.Accessories
No | Items | Qty | Total |
1 | 10m Main pole | 1 set | 1 set |
2 | 5m Pu air tube | 1 piece | 1piece |
3 | Car clamp | 1 piece | 1piece |
4 | 12V air compressor | 1 piece | 1 piece |
5 | Top plate | 1 unit | 1 unit |
6 | Guy wire | 6 pieces | 6 pieces |
One unit of pneumatic lightweight mast to be wrapped with Poly tapes then two or one sets packed into a carton, carton inner covered by hard foam
10m pneumatic portable lightweight telecommunication mast with tripod
Installation
A. Fixed mode: achieved by tripod; vehicle mode: fixed by car clamps
B. The telescopic mast should be mounted on a flat and solid foundation. If the mast is tilted or tilted for a long time, its speed will be affected and it will cause damage to the mast itself.
C. The top load of mast should not exceed its conventional bearing so as not to tilt or damage the mast
D. Telescopic mast above 10m or less than 10m (including 10m) carrying more than 5kg must be fitted with pulling cords.
E. And the mast need be fitted with pulling cords when the wind speed exceeds 14m/s.
F. Method for erecting a mast with pulling cord (take a three layer pulling cord mounted on the ground as an example):
a. The telescopic mast should be vertically fixed on the horizontal base.
b. The position selection of ground anchors. The distance between ground anchor and the bottom center of mast is greater than 2/3 of the height of the mast, and nails shall be driven into ground every 120 degrees.
