10m Electric Silver Telescopic Antenna Mast 15kg Load
- Xingang
- T/T Credit Card
You May Like
-
5m Vehicle Mounted Electric Outdoor Telescopic Mast Pole
-
12m 7 Section Aluminium Motorized Crank Telescopic Mast 10kg
-
18m Electric Ground Mounted Telescopic Mast
-
Custom Video Surveillance Cameras Telescopic Mast 6m to 9m
-
3m Inflatable Mast Pole Pneumatic Telescopic Mast With Tripod
-
10m Pneumatic Telescopic Mast Pole Inflatable Pole
Product Details
| Brand Name | Talents 10m electric telescopic antenna mast | Place of Origin | Tianjin, China | |
| Model Number | 11TAL-M10-1.95-15 10m electric telescopic antenna mast |
Product Description

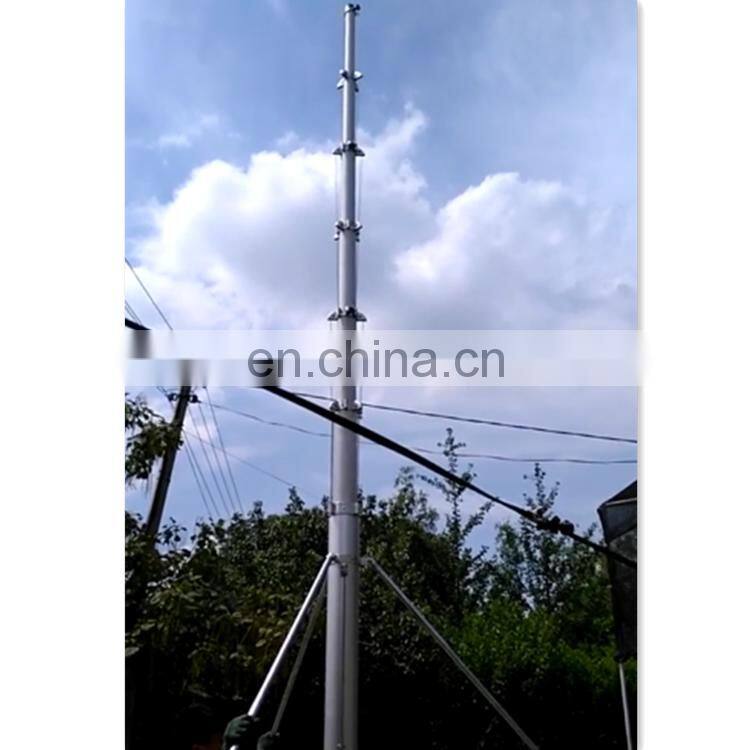

10m electric silver telescopic antenna mast 15kg load

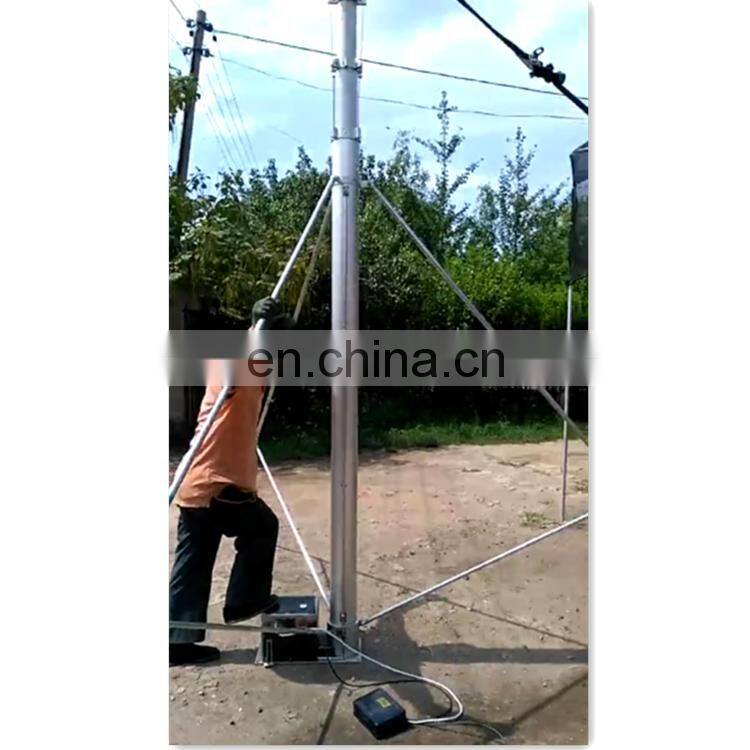

10m electric silver telescopic antenna mast 15kg load
Basic specifications
| Product name | 10m electric silver telescopic antenna mast 15kg load |
| Closed length | 1.95m (Bottom base included) |
| Extended length | 10.0m (Bottom base included) |
| Max.payload | 10kgs |
| Lifting method | motorized |
| OD | 30-90mm |
| Material | aluminum alloy |
| Section | 7 |
Detailed information
(1)Main pole in 7 sections:
Section No. OD Thickness Length
1#: 30mm 2.0mm 1.55m
2#: 40mm 2.0mm 1.55m
3#: 50mm 2.0mm 1.55m
4#: 60mm 2.0mm 1.55m
5#: 70mm 2.0mm 1.55m
6#: 80mm 2.0mm 1.55m
7#: 90mm 2.0mm 1.55m
(2)Bottom base:
Diameter:180mm Thickness: 120mm
(3)Accessories:
Pulling cord box with handle bars------------------3 units
Ground anchor----------------------------------------3 pieces
Handle lifting bar-------------------------------------2 pieces
304 stainless steel stakes----------------------------6 pieces
Top plate------------------------------------------------1 piece
Material:
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: galvanized steel wire(OD:2mm)
Color: the whole unit will be in silver when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.
Color Technology: painting
Accessories
1.Pulling cord box and handle bars
2. Ground anchor 3.Handle lifting bar

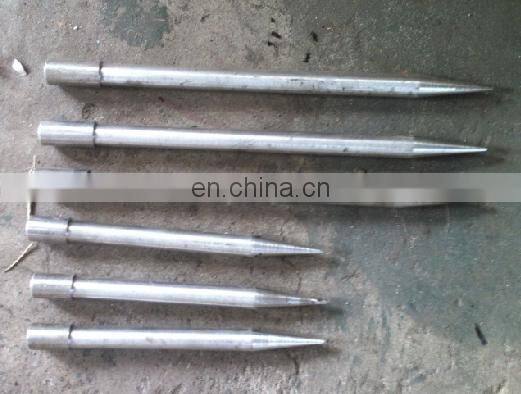

4. 304 stainless steel stakes 5. Motor

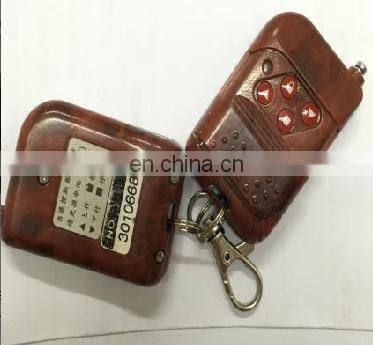

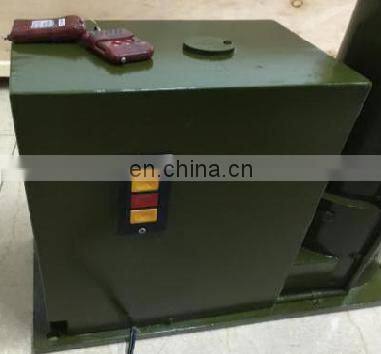

6. Remote controller 7. Control box
One unit of 10m electric telescopic antenna mast to be wrapped with Poly tapes then 2 units to be packed into a plywood case
10m electric silver telescopic antenna mast 15kg load
Installation Method
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
Mast Operation Precautions
l No overloading.
l Ensure the area in which the mast is deployed is free of obstructions and overhead power lines.
l For motorized mast :The crank handle of mast must be disengaged when operated electrically.
l For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the mast quicker, this action removes control over the rate of decent.
l For motorized mast:When operated manually, the motorized telescopic antenna mast must be in a power off state.
l Any abnormal phenomena( such as inflexible or stuck) occurs when lifting. you should stop immediately, identify the reasons, and lift it after cleaning troubles.
l Operating environment requirements:
l working temperature: pneumatic mast -15--+60℃. manual and motorized mast -50--+60℃.
l Wind load: 50-80km/(without Guy rope ), 100-120Km/h( with Guy rope)
l Note: if special request, please confirm with our technician.
Maintenance
l Waterproof and dust proof cover should be put into outdoor storage
l If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
l Regularly check the connection parts in normal condition.
l Change seals easily on regular time can make mast in good using conditions after using 20thousand times.
