15 foot electric security winch antenna telescopic mast

Name: 15 foot electric security winch antenna telescopic mast
Brand: Talents
Availability: InStock

FOB Price

USD $1,000 - $1,200 / Set

1 Set(Min.Order)

Supply Ability 200 Unit / Units per Month
Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	TAL-E4.5-1.7-30

Product Description

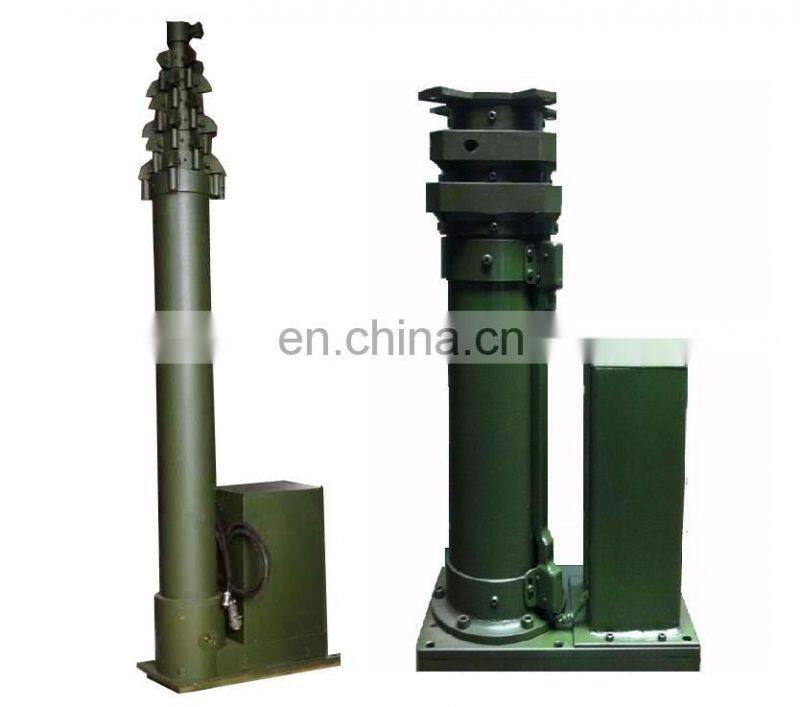

15 foot electric security winch antenna telescopic mast

Closed length:1.6m (Bottom base included)
Extended length: 4.5m (Bottom base included)
Max.payload: 30kg self weight of mast: 30kg
Lifting method: hand lifting and electric motor
(1)Main pole in 4 sections:
Section No. OD Thickness
1#： 50mm 2.0mm
2#： 60mm 2.0mm
3#： 70mm 2.0mm
4#： 80mm 2.0mm
Material:
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: galvanized steel wire(OD:2mm)
Color: the whole unit will be in army green when closed, but when extended,
the main pole will be in origin color of aluminum alloy only with top 4cm
of each pole section in army green color.
Color Technology: painting

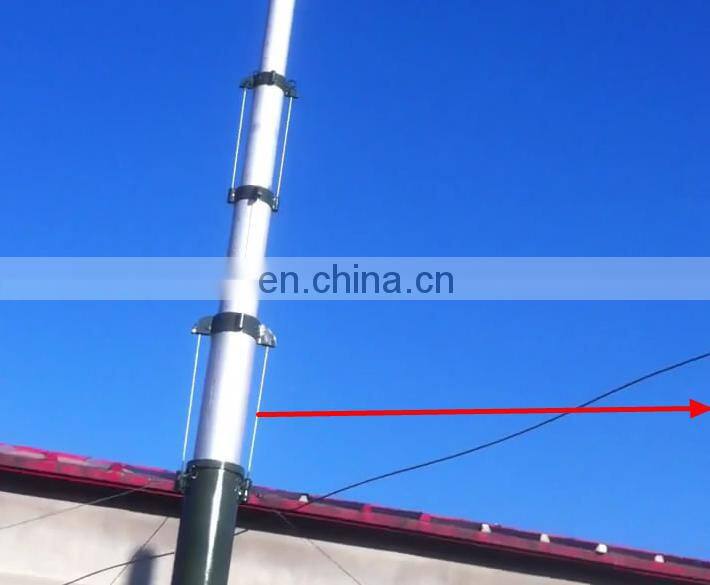

The lines are made of stainless steel 304,
Help with the mast lifting and control the length of each tube

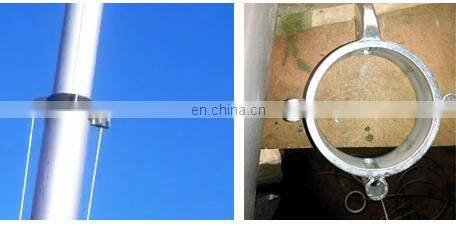

The collar diameter are of 2mm larger
Than tube diameter, height about 3-4cm
There are bearings help with the lines going inside the two wings

accessories

Guy wires-----------------------------------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece

Packing & Delivery

15 foot electric security winch antenna telescopic mast

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1）the manual mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2）the manual mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Detailed Images

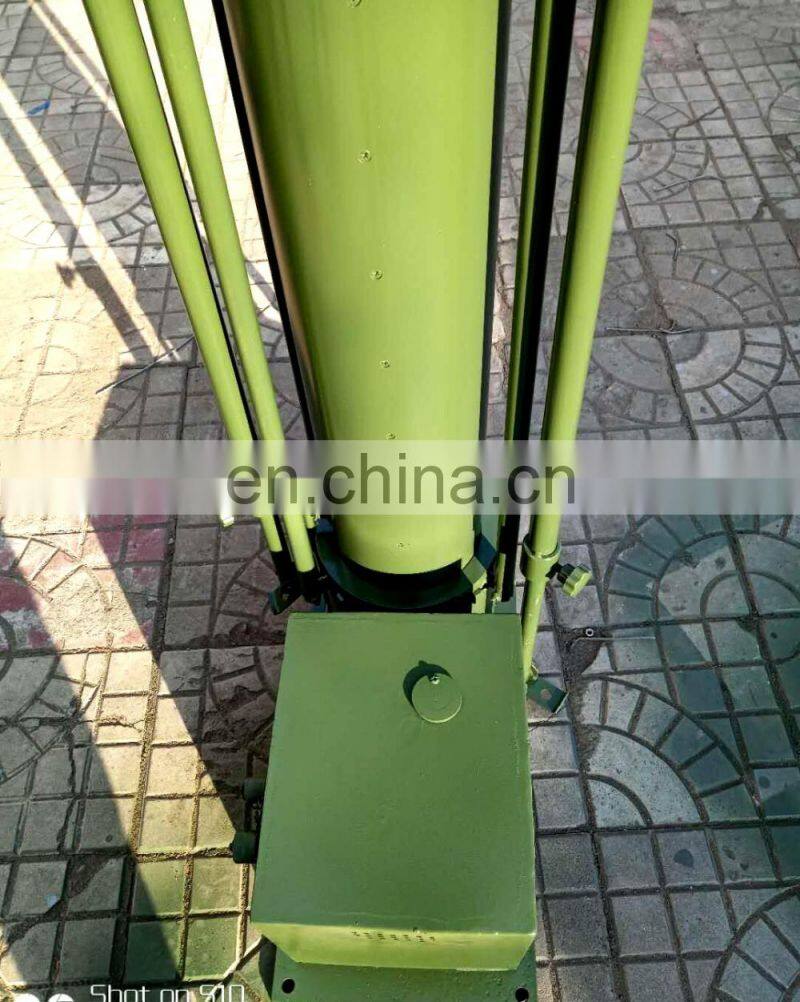

15 foot electric security winch antenna telescopic mast

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade manual mast as follows----payload no more than 10kg

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	14
5	4	1.65	50-80	17
6	5	1.7	50-90	21
8	6	1.8	40-90	24
10	7	1.95	30-90	26
12	7	2.2	30-90	28
15	8	2.45	30-105	33
18	9	2.7	30-130	47
20	9	2.95	30-130	55
22	9	3.15	30-130	58
25	10	3.4	30-150	72
30	10	3.85	30-150	84

Workshop

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293

wechat: 1093812653

if you get interested in our telescopic mast, please contact us at any time for catalog and videos
