6m Electric Tripod Telescoping Light Pole Fast Extending Telescopic Lamp Mast

FOB Price

US$ 2,000 - 2,000 / Unit

2 Units(Min. Order)

Port Xingang
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents 6m telescoping light pole		Place of Origin	Tianjin, China
Model Number	12TAL-6.0-1.7-50 6m telescoping light pole

Product Description

6m electric tripod telescoping light pole fast extending telescopic lamp mast

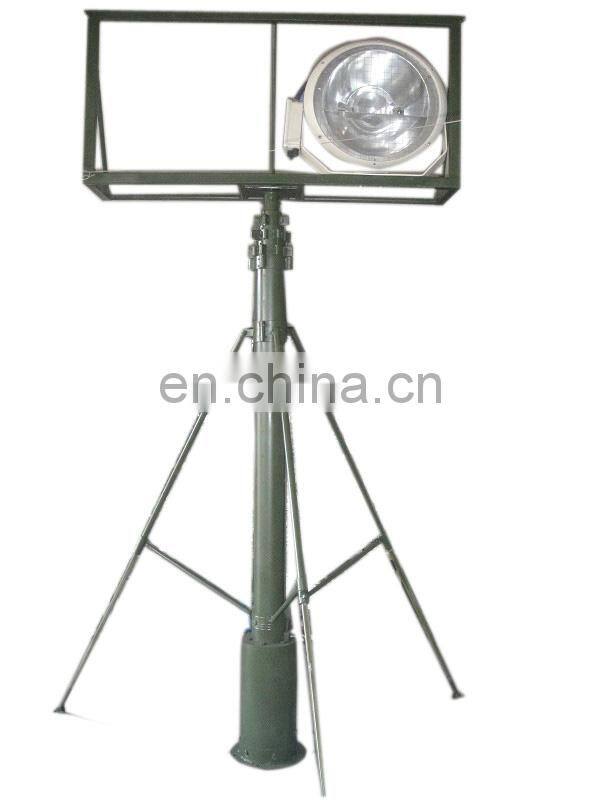

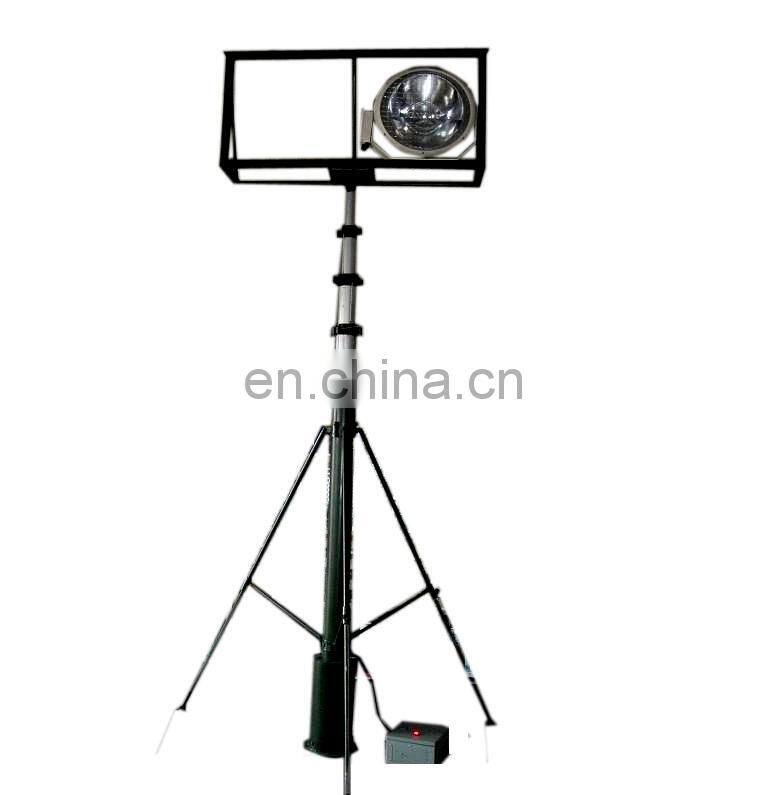

Product Photo

Product Description

6m electric tripod telescoping light pole fast extending telescopic lamp mast

1.Basic specifications

Product name	6m electric tripod telescoping light pole fast extending telescopic lamp mast
Closed length	1.70m (Bottom base included)
Extended length	6.00m (Bottom base included)
Max.payload	50 kgs
Lifting method	motorized lifting
OD	50-90mm
Material	aluminum alloy
Section	5

2.Detailed information

(1) Main pole in 5 sections:

Section No. OD Thickness

1#: 50mm 2.0mm

2#: 60mm 2.0mm

3#: 70mm 2.0mm

4#: 80mm 2.0mm

5#: 90mm 2.0mm

(2) Other parts of the mast body

Top plate Thickness: 10mm Diameter:130mm Screw:4pcs of dia.10mm

Bottom base(include motor): size:220*460mm

(3)Accessories

Motor: (DC12V 400W)------------------------------- 1 set

Guy wire -------------------------------- 3 units

Ground anchor-----------------------------------------3 pieces

Handle lifting bar--------------------------------------1 piece

Motor and control box-------------------- 1 unit

Remote-controller ------------------------- 2 pieces

Bottom plate--------------------------------------------1 unit

Material:

Main Pole: Section 1-5---aluminum alloy

Bottom base and accessories (except the ground anchor): iron steel

Ground anchor: galv stainless steel

Pulling cord: stainless steel wire(OD:2mm)

Color: the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.

Color Technology: painting

3.Accessories

1.Guy wire 2. Ground anchor

3.Control box 4. Romote control

5.Handle lifting bar for lifting the mast 6. Motor

Packaging & Shipping

One unit of 6m telescoping light pole to be wrapped with Poly tapes then to be packed into a plywood case

Specification table of masts

No.	Model	Closed Length	Extended Length	OD	Section	Payload
002	TAL-2M-30	1.0m	2m	40mm~60mm	3	30kg
002	TAL-2M-30	0.75m	2m	40mm~90mm	6	20kg
002	TAL-2M-100	1.2m	2m	105mm~130mm	2	100kg
003	TAL-3M-250	1.75m	3m	90mm~130mm	3	250kg
004	TAL-4M-250	1.8m	4m	90mm~130mm	3	250kg
004	TAL-4M-10	1.55m	4m	40mm~80mm	4	10kg
004	TAL-4M-50	1.2m	4m	60mm~130mm	6	50kg
005	TAL-5M-150	1.4m	5m	60mm~160mm	6	150kg
005	TAL-5M-600	1.6m	5m	60mm~150mm	5	600kg
006	TAL-6M-10	1.7m	6m	40mm~90mm	6	10kg
006	TAL-6M-50	1.7m	6m	50mm~105mm	6	50kg
008	TAL-8M-30	2.2m	8m	40mm~105mm	6	30kg
010	TAL-10M-30	2.45m	10m	40mm~105mm	7	30kg
012	TAL-12M-200	2.45m	12m	70mm~160mm	7	200kg
012	TAL-12M-35	2.3m	12m	40mm~130mm	7	35kg
012	TAL-12M-100	2.7m	12m	50mm~130mm	7	100kg
012	TAL-12M-20	2.4m	12m	40mm~150mm	7	20kg
015	TAL-15M-20	2.8m	15m	40mm~105mm	7	20kg
015	TAL-15M-30	2.8m	15m	50mm~130mm	7	30kg
015	TAL-15M-300	2.7m	15m	60mm~155mm	7	300kg
020	TAL-20M-200	3.7m	20m	70mm~230mm	7	200kg
025	TAL-25M-80	3.4m	25m	60mm~230mm	10	80kg
025	TAL-25M-60	3.4m	25m	60mm~210mm	10	60kg
028	TAL-28M-15	3.7m	28.5m	30mm~130mm	10	15kg
035	TAL-35M-10	3.9m	35m	30mm~180mm	11	10kg

Workshop

Installation Method

1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,

2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.

3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Mast Operation Precautions

l No overloading.

l Ensure the area in which the mast is deployed is free of obstructions and overhead power lines.

l For motorized mast :The crank handle of mast must be disengaged when operated electrically.

l For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the mast quicker, this action removes control over the rate of decent.

l For motorized mast:When operated manually, the motorized telescopic antenna mast must be in a power off state.

l Any abnormal phenomena( such as inflexible or stuck) occurs when lifting. you should stop immediately, identify the reasons, and lift it after cleaning troubles.

l Operating environment requirements:

l working temperature: pneumatic mast -15--+60℃. manual and motorized mast -50--+60℃.

l Wind load: 50-80km/(without Guy rope ), 100-120Km/h( with Guy rope)

l Note: if special request, please confirm with our technician.

Maintenance

l Waterproof and dust proof cover should be put into outdoor storage

l If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating

oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

l Regularly check the connection parts in normal condition.

l Change seals easily on regular time can make mast in good using conditions after using 20thousand times.
