Heavy Payload 3m Electrical Telescopic Manual Winch Mast for Sale

Name: Heavy Payload 3m Electrical Telescopic Manual Winch Mast for Sale
Brand: Talents
Availability: InStock

FOB Price

US$ 500 - 1,000 / Unit

1 Unit(Min. Order)

Port Tianjin port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Talents		Place of Origin	Tianjin, China
Model Number	04-Tal-3m electrical telescopic mast

Product Description

Detailed Images

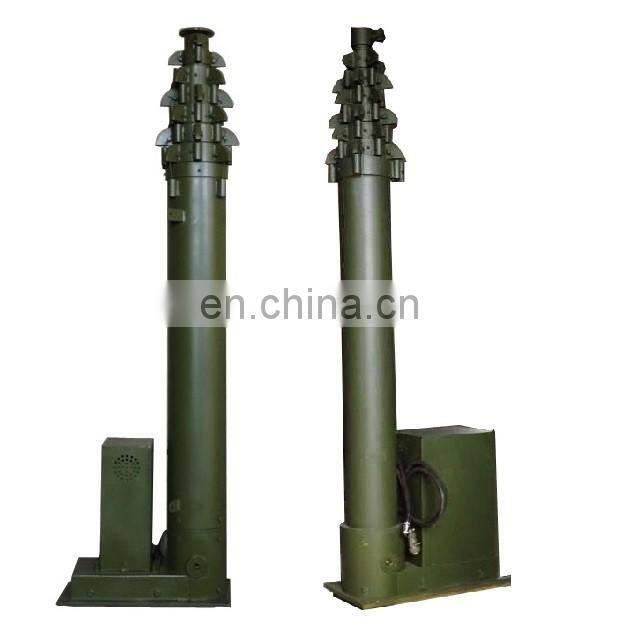

Heavy payload 3m electrical telescopic Manual winch mast for sale

Motor and remote controller

The remote controller can control lifting remotely

Hand winch

It can be operated manually by using a hand winch

Bottom plate

Product Description

Heavy payload 3m electrical telescopic Manual winch mast for sale

technical data
main spec.	Closed length:1.5m (Bottom base included) Extended length: 3m (Bottom base included) Self weight:around 45kg Max loading:180kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections	Section No. OD Thickness Length 1# 90mm 2.0mm 1.3m 2# 105mm 2.5mm 1.3m 3# 130mm 5.0mm 1.3m
Bottom base	lengthwidth:450210mm Thickness: 10mm
Accessories	Motor: (AC220v 300w)---------------------------------1 piece Handle lifting bar----------------------------------------1 piece Electrical equipment control box---------------------1 unit Remote-controller----------------------------------------2 pieces
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

accessories

Motor: (AC220V 250W)-------------------------------1 set
Pulling cord box with handle bars-------------------3 units
Ground anchor-------------------------------------------3 pieces
Handle lifting bar----------------------------------------1 piece
Electrical equipment control box---------------------1 unit
Remote-controller ---------------------------------------2 pieces
Clamp-------------------------------------------------------1 unit

Packing & Delivery

Heavy payload 3m electrical telescopic Manual winch mast for sale

package
carton packed	normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
plywood packed	normal package is plywood case for extended height more than 10m, weight more than 70kg mast

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

it’s better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:0086 18222428293

wechat: 1093812653

if you get interested in our telescopic mast, please contact us at any time for catalog and videos
