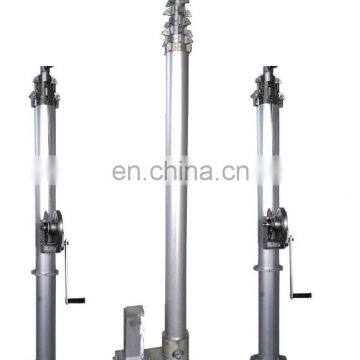

4.5m motorized tower electro screw tripod telescopic motor and manual telescoping light mast

Name: 4.5m motorized tower electro screw tripod telescopic motor and manual telescoping light mast
Brand: TALENTS
Availability: InStock

FOB Price

US$ 1,700 - 1,900 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TALENTS		Place of Origin	Tianjin, China
Model Number	TAL-E17

4.5m motorized tower electro screw tripod telescopic motor and manual telescoping light mast

Specification list

Article number:	TAL-E10-2.2-30
Max top payload:	30kgs
Closed length:	2200mm
Extended length:	10000mm
Main poles' sections:	7 sections
sec.1#(OD/ID/thickness):	105/100/2.5mm
sec.2#(OD/ID/thickness):	90/86/2.0mm
sec.3#(OD/ID/thickness):	80/76/2.0mm
sec.4#(OD/ID/thickness):	70/66/2.0mm
sec.5#(OD/ID/thickness):	60/56/2.0mm
sec.6#(OD/ID/thickness):	50/46/2.0mm
sec.7#(OD/ID/thickness):	40/36/2.0mm
Bottom base size (L/W/thickness):	600/220/12mm
Top plate size (dia./thickness):	160mm/10mm
Working temperature:	-40--+50C
Mortor power:	DC12v/370w
Wind load:	100km/h to 120km/h
Pulling cord's OD:	2mm
Material for main pole:	aluminum alloy 6063B and 2A12T4
Material for bottom base:	iron steel
Material for accessories:	iron steel
Material for pulling cord:	stainless steel
Material for other asscessaires	iron steel

Packing list:

Mian pole in 3 sections:	1 set
Mortor(DC12v/370w):	1 set
Handle lifting bar:	1 piece
Electrical equipment control box:	1 set
Remote controller:	2 pieces
Bottom base:	1 piece
top plate:	1 piece
Pulling cord box with handle bars:	3 sets
Ground anchor:	3 pieces
Clamp:	1 piece
tripal:	1 set
Surface color Technology:	Painting in army green, the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of the aluminum alloy only with top 4cm of each section in army green color.
Packing method:	the main pole and the accessories are wrapped with foamed membrane and then to be packed into a polywood case

4.5m motorized tower electro screw tripod telescopic motor and manual telescoping light mast

1. The telescopic mast is made of aluminum alloy or stainless steel tube.

2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

photography, meteorological measurement equipments rise and drop to a certain

height after its work.

3. It can be mounted on the vehicle or stand on the ground with tripod.

4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m

and closed length to 1.3m.

5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.

Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting

telescopic masts available for supply as follows, please refer to the catalogue attached below:

Mortorized lifting telescopic mast
