3m to 12m electric power extendable camera mast

FOB Price

USD $800 - $1,500 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TALENTS		Place of Origin	Tianjin, China
Model Number	TAL-E2-E30

Product Description

About us

3m to 12m electric power extendable camera mast

we develop and manufacture telescopic masts,

material is aluminum alloy 6063B/T5 or 2A14T4 or steel,

for nearly unlimited applications.masts used in radio facilities,

for monitoring and illumination systems in public works and military installations, for radio amateurs, in metrology and other fields. In addition, we are able to offer special solutions for non-standard applications.

Product Description

3m to 12m electric power extendable camera mast

main technical data
work type	operated automatically by controller or manually by hand crank
wind load resistance	120km/h with guy wires fixed
extended height	2m to 35m
input voltage	AC220V/110V, DC12V/24V
lifting speed	3m/mins
self weight	34kg to 170kg
control distance	100m with remote
feature	any height self locking

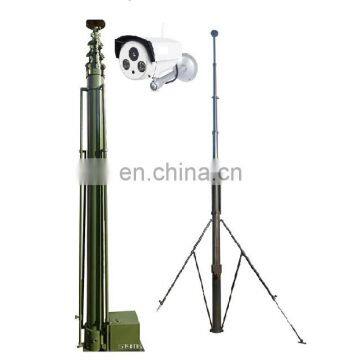

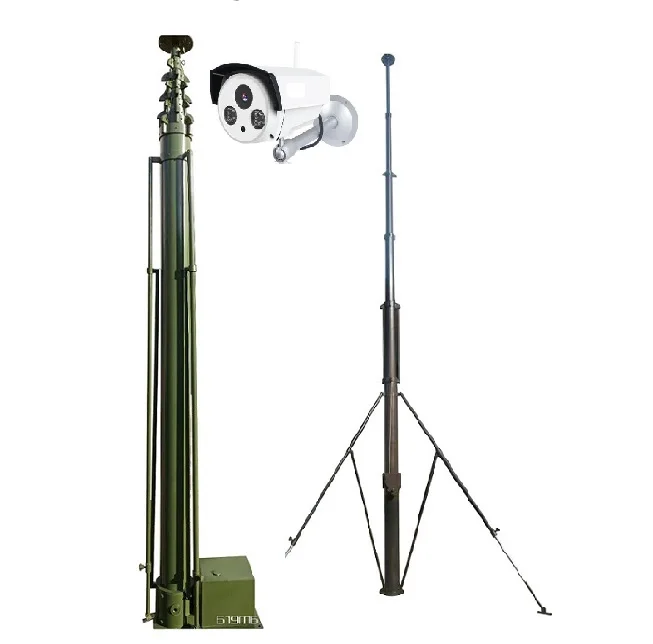

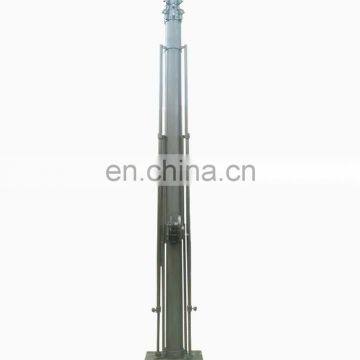

Product picture

3m to 12m electric power extendable camera mast

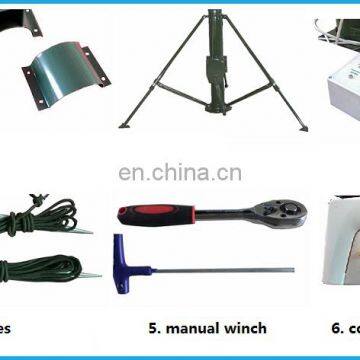

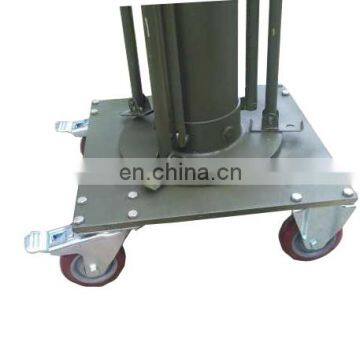

Accessories example

3m to 12m electric power extendable camera mast

Packing & Delivery

package
plywood packed	one set mast with accessories wrapped by polyester tapes, then packed into a plywood case

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade motorized mast as follows

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	34
5	4	1.65	50-80	38
6	5	1.7	50-90	42
8	6	1.8	40-90	54
10	7	1.95	30-90	58
12	7	2.2	30-90	65
15	8	2.45	30-105	78
18	9	2.7	30-130	102
20	9	2.95	30-130	110
22	9	3.15	30-130	130
25	10	3.4	30-150	154
30	10	3.85	30-150	170

After-sale service

Mast with guy wires fixed for ground use Mast with guy wires fixed for vehicle use

A. 1 year warranty

B. Installation Instructions:
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast

C. Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.

it's better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.

Welcome to contact

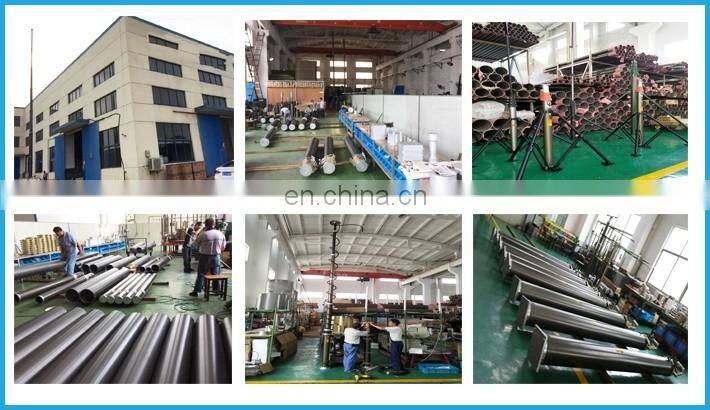

Company profile
