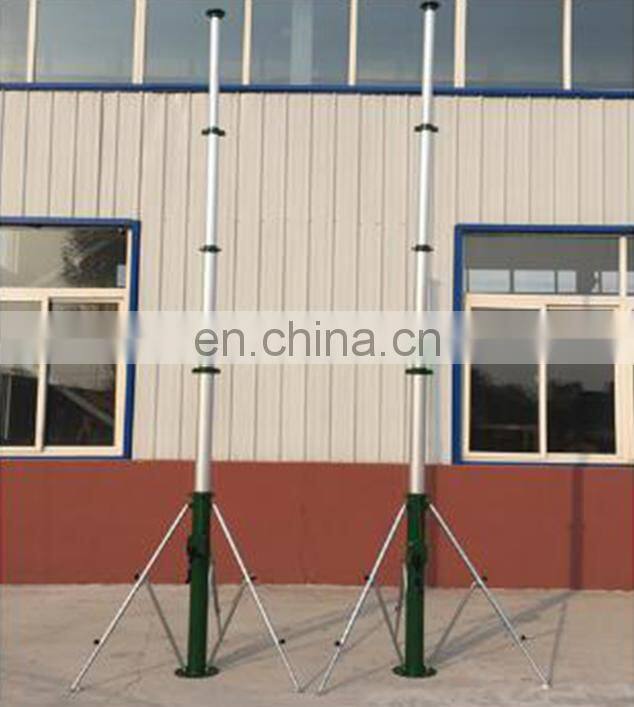

5m tripod hand lifting telescopic mast
5m tripod hand lifting telescopic mast
5m tripod hand lifting telescopic mast
Basic specifications
| Product name | 5m tripod hand lifting telescopic mast |
| Closed length | 1.20m (Bottom base included) |
| Extended length | 5.00m (Bottom base included) |
| Max.payload | 10kgs |
| Lifting method | hand lifting |
| OD | 30-70mm |
| Material | aluminum alloy |
| Section | 5 |
Detailed information
(1)Main pole in 4 sections:
Section No. OD Thickness Length
1#: 30mm 2.0mm 1.55m
2#: 40mm 2.0mm 1.55m
3#: 50mm 2.0mm 1.55m
4#: 60mm 2.0mm 1.55m
5#: 70mm 2.0mm 1.55m
(2)Bottom base:
Diameter:180mm Thickness: 12mm
(3)Accessories:
Pulling cord box with handle bars------------------3 units
Ground anchor----------------------------------------3 pieces
Handle lifting bar-------------------------------------2 pieces
304 stainless steel stakes----------------------------6 pieces
Tripod --------------------------------------------------1 piece
Top plate------------------------------------------------1 piece
Material:
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: galvanized steel wire(OD:2mm)

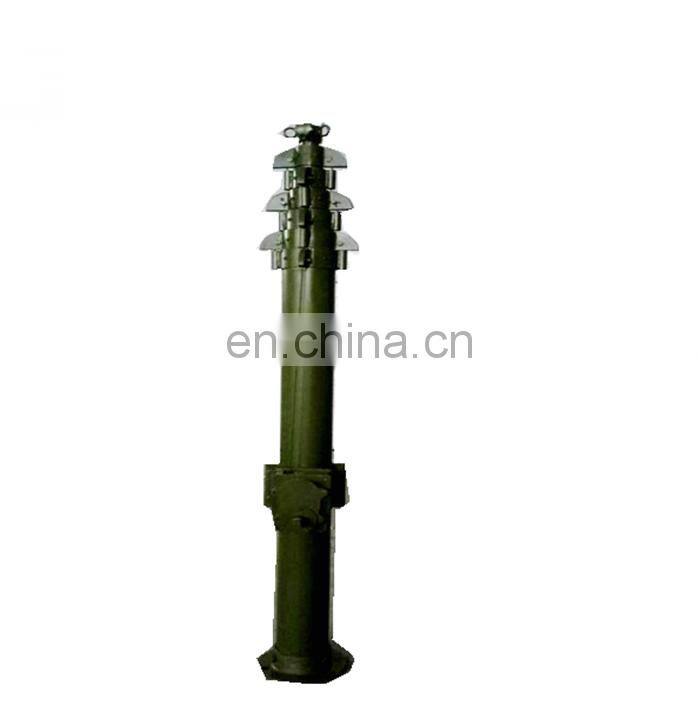

Color: the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.
Color Technology: painting
Accessories
1.Pulling cord box and handle bars
3.Handle lifting bar
4. 304 stainless steel stakes
One unit of hand lifting telescopic mast to be wrapped with Poly tapes then 2 units to be packed into a plywood case
Installation
A. Fixed mode: achieved by tripod; vehicle mode: fixed by car clamps
B. The telescopic mast should be mounted on a flat and solid foundation. If the mast is tilted or tilted for a long time, its speed will be affected and it will cause damage to the mast itself.
C. The top load of mast should not exceed its conventional bearing so as not to tilt or damage the mast
D. Telescopic mast above 10m or less than 10m (including 10m) carrying more than 5kg must be fitted with pulling cords.
E. And the mast need be fitted with pulling cords when the wind speed exceeds 14m/s.
F. Method for erecting a mast with pulling cord (take a three layer pulling cord mounted on the ground as an example):
a. The telescopic mast should be vertically fixed on the horizontal base.
b. The position selection of ground anchors. The distance between ground anchor and the bottom center of mast is greater than 2/3 of the height of the mast, and nails shall be driven into ground every 120 degrees.
