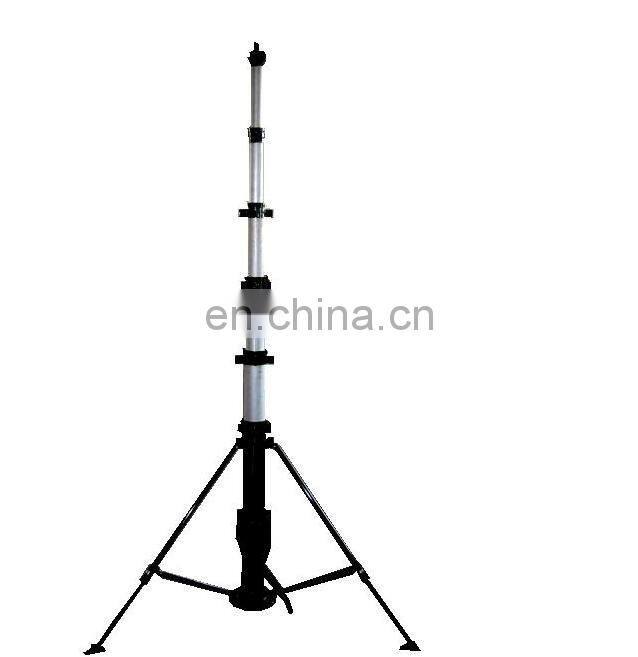

4m steel trailer mounted manual mechanical telescopic mast
Product Description
null
technical data
main spec.
Closed length: 1.65m (Bottom base included)
Extended length: 4m (Bottom base included)
Max loading:10kg
Temperature: working temp:-45--+50℃ Storage Temp:-55--+70℃
main pole in sections
Section No.                OD                         Thickness
1#:                                50mm                  2.0mm
2#:                               60mm                  2.0mm
3#:                                70mm                  2.0mm
4#:                                80mm                 2.0mm
Bottom base
diameter: 180mm Thickness: 12mm
Accessories
Guy rope--------------------------------------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
accessories

Pulling cord box with handle bars------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece

Packing & Delivery
4m steel trailer mounted manual mechanical telescopic mast
Workshop
why choose our masts

1.all masts include 1 year limited warranty

2.this type masts are extendable manually, no pumps, no complex extension devices,

no power sources required.

pletely maintenance-free

4.deliveried ready to use

5.we ship worldwide

Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade manual mast as follows----payload no more than 10kg
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
self weight
(kg)
4
3
1.6
60-80
14
5
4
1.65
50-80
17
6
5
1.7
50-90
21
8
6
1.8
40-90
24
10
7
1.95
30-90
26
12
7
2.2
30-90
28
15
8
2.45
30-105
33
18
9
2.7
30-130
47
20
9
2.95
30-130
55
22
9
3.15
30-130
58
25
10
3.4
30-150
72
30
10
3.85
30-150
84
