Vehicle 9m Military Crank up Manual Mast Pole With Rotation 360 Degree Whirling

Name: Vehicle 9m Military Crank up Manual Mast Pole With Rotation 360 Degree Whirling
Brand: talents
Availability: InStock

FOB Price

US$ 850 - 980 / Set

1 Set(Min. Order)

Port Port of Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-M9-1.9-15

Product Description

vehicle 9m military crank up manual mast pole with rotation 360 degree

Specification list

Article number:	TAL-M9-1.9-15
Max top payload:	15kgs
Closed length:	1900mm
Extended length:	9000mm
Main poles' sections:	7 sections
sec.1#(OD/ID/thickness):	30/26/2mm
sec.2#(OD/ID/thickness):	40/36/2mm
sec.3#(OD/ID/thickness):	50/46/2mm
sec.4#(OD/ID/thickness):	60/56/2mm
sec.5#(OD/ID/thickness):	70/66/2mm
sec.6#(OD/ID/thickness):	80/76/2mm
sec.7#(OD/ID/thickness):	90/86/2mm
Bottom base size (dia.thickness):	150mm/10mm
Top plate size (dia./thickness):	130mm/10mm
Working temperature:	-40--+50C
Lifting method:	manual listing
Wind load:	80km/h
Pulling cord's OD:	2mm
Material for main pole:	aluminum alloy 6063B
Material for bottom base:	iron steel
Material for accessories:	iron steel
Material for pulling cord:	stainless steel
Material for other asscessaires	iron steel

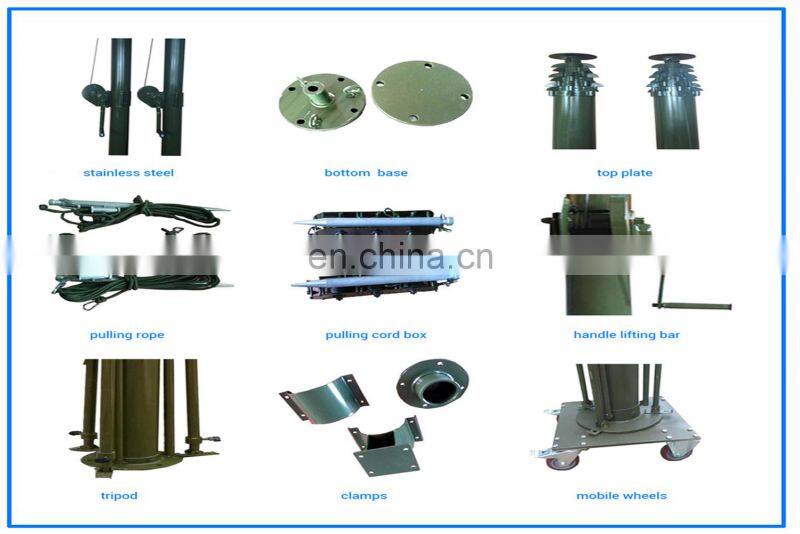

Packing list:

Mian pole in 7 sections:	1 set
Handle lifting bar:	2 piece
Bottom base:	1 piece
top plate:	1 piece
Pulling cord box with handle bars:	3 sets
Ground anchor:	3 pieces
Clamp:	1 piece
tripal:	1 set
Surface color Technology:	Painting in army green, the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of the aluminum alloy only with top 4cm of each section in army green color.
Packing method:	the main pole and the accessories are wrapped with foamed membrane and then to be packed into a polywood case

vehicle 9m military crank up manual mast pole with rotation 360 degree

1. The telescopic mast is made of aluminum alloy or stainless steel tube.

2. It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

photography, meteorological measurement equipments rise and drop to a certain

height after its work.

3. It can be mounted on the vehicle or stand on the ground with tripod.

4. It has manual, motorized and pneumatic lifting method, the extended length up to 35m

and closed length to 1.3m.

5. The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60℃.

Except the manual lifting telescopic mast, we still have motorized lifting and pneumatic lifting

telescopic masts available for supply as follows, please refer to the catalogue attached below:

Manual lifting telescopic mast

Article No.	Retracted height (mm)	Extended height (mm)	Diameter range (mm)	Section No.s	top payload (kgs)
TAL-M3-1-20	1000	3000	70-90	3	20
TAL-M4-1.5-30	1500	4000	50-80	3	30
TAL-M4-1-20	1000	4000	70-90	3	20
TAL-M4-1.6-10	1600	4000	60-80	3	10
TAL-M5-1.65-10	1650	5000	50-80	4	10
TAL-M5-1.2-15	1200	5000	40-90	5	15
TAL-M5-1.5-60	1500	5000	50-90	5	60
TAL-M5-1.7-100	1700	5000	60-130	6	100
TAL-M6-1.7-10	1700	6000	50-90	5	10
TAL-M6-1.5-100	1500	6000	60-130	6	100
TAL-M6-1.3-60	1300	6000	40-130	7	60
TAL-M7-1.8-30	1800	7000	40-105	7	30
TAL-M8-1.5-20	1500	8000	40-130	8	20
TAL-M9-1.8-40	1800	9000	40-105	7	40
TAL-M9-1.8-30	1800	9000	40-105	7	30
TAL-M9-1.8-100	1800	9000	60-160	7	100
TAL-M9-1.9-5	1900	9000	30-90	7	5
TAL-M10-1.95-10	1950	10000	30-90	7	10
TAL-M10-2-40	2000	10000	30-105	7	40
TAL-M12-2.2-10	2200	12000	30-90	7	10
TAL-M12-2.1-15	2100	12000	30-90	7	15
TAL-M12-2-40	2000	12000	40-130	8	40
TAL-M15-2.45-10	2450	15000	30-105	8	10
TAL-M15-2.6-35	2600	15000	30-130	9	35
TAL-M15-2.5-200	2500	15000	70-200	7	200
TAL-M16-2.6-10	2600	16000	30-105	8	10
TAL-M18-2.7-10	2700	18000	30-130	9	10
TAL-M18-3.2-30	3200	18000	30-130	9	30
TAL-M18-3.7-100	3700	18000	50-130	7	100
TAL-M20-2.95-10	2950	20000	30-130	9	10
TAL-M22-3.15-10	3150	22000	30-130	9	10
TAL-M25-3.4-10	3400	25000	30-150	10	10
TAL-M25-3.5-250	3500	25000	80-280	10	250
TAL-M25-3.6-20	3600	25000	40-150	9	20
TAL-M-30-3.85-10	3850	30000	30-150	10	10
TAL-M35-4.5-25	4500	35000	40-180	10	25
