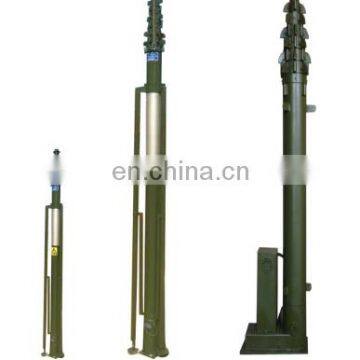

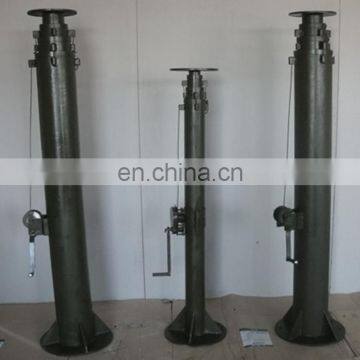

10m Aluminum Mobile Antenna Telescopic Mast China

                                          10m aluminum mobile antenna telescopic mast China

Application

It can help lamplight, camera, Antenna, mobile and other equipments rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field. Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect.

Color:

the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color. Technology: painting
Material:
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel

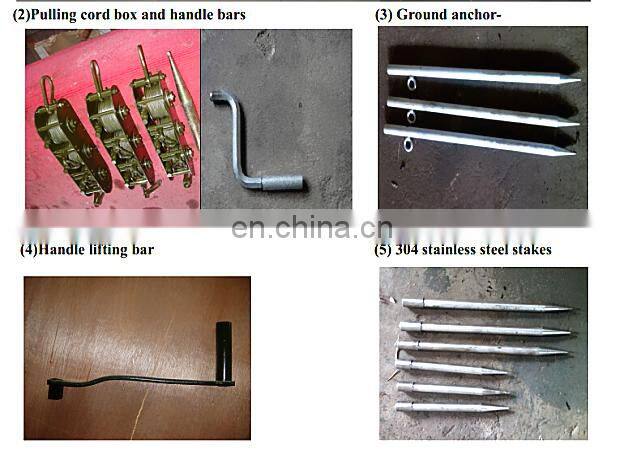

Pulling cord: stainless steel wire(OD:2mm)

Specifications of mobile antenna telescopic mast

Closed length:         1.95m (Bottom base included)
Extended length:    10m (Bottom base included)

Wind load:                 working rate:25m/s Max rate:35m/s
Temperature:            working temp:-40--+50C

                                       Storage Temp:-55--+70C

PACKING:

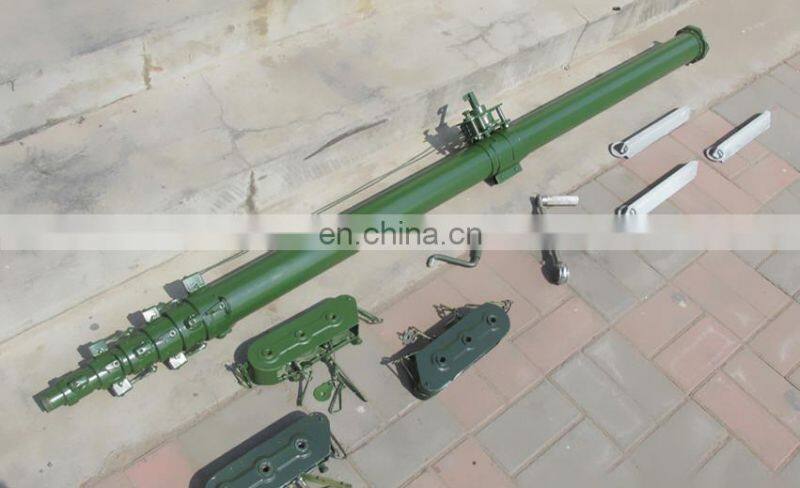

One unit of mobile antenna telescopic mast (main pole and all accessories) to be wrapped with Poly tapes and  then into a plywood case with metal belts reinforced.

Installation Instructions:

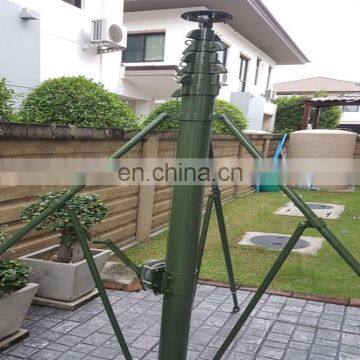

1)The mobile antenna telescopic mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the telescopic antenna mast tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The mobile antenna telescopic mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile.  At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.
