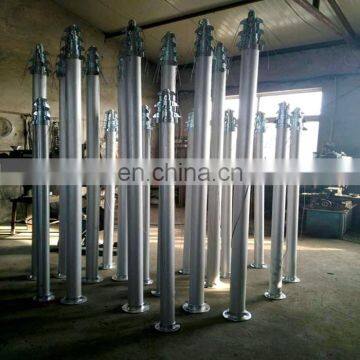

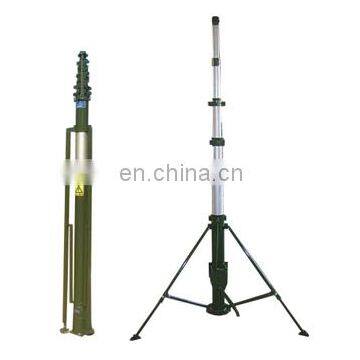

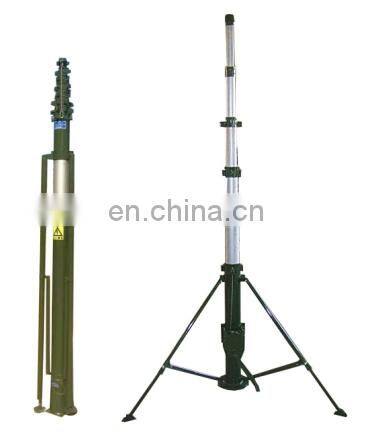

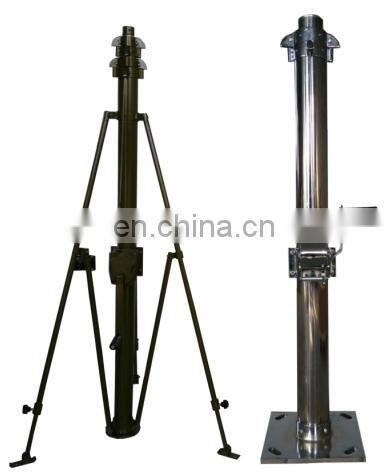

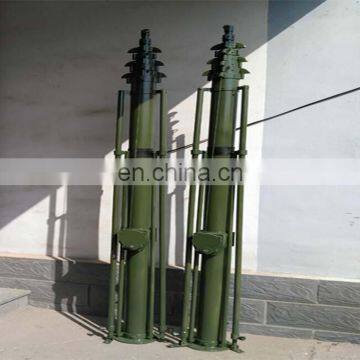

Economical Tripod Practical Telescopic Mast

                                                           Economical tripod practical telescopic mast

Overview

Economical tripod telescopic mast is elevated equipment carrier, suitable for car, ship or land. It can be fast, reliable and secure communications antennas, lighting, lightning protection, light transmission and camera and other equipment to rise to a predetermined height. After the work is completed, it can be fast, reliable and secure these devices drop to a predetermined height. The company's manual lifting rod products using high-strength aluminum alloy, corrosion resistance, light weight, load, low noise, fast lifting, shock resistance, smooth and so on.

   Able to meet the different areas' needs, and the demand for different occasions. In addition, the company's products are also widely used in golf, soccer stadium lighting at night.

Material:

Main Pole: aluminum alloy
Bottom base and accessories

(except the stakes): iron steel
Pulling cord: stainless steel wire

(OD:2mm)

Color:

painting into any color, or original Galv

color/aluminum color.
Depends on final buyer's confirmation

Note:

Power connecting method:original

plug-without wire

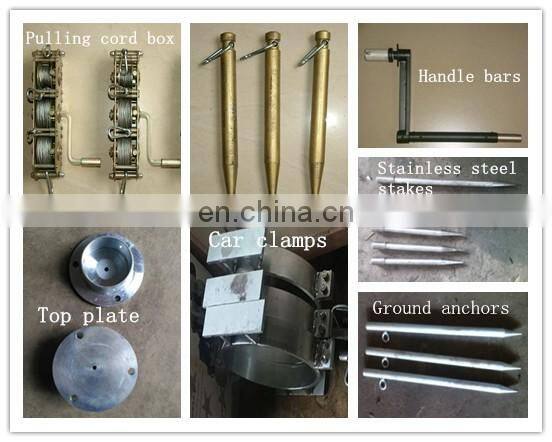

Accessories of tripod telescopic mast

Specifications:

PACKING:

    Each unit of tripod telescopic mast(main pole and all accessories)to be wrapped with Poly tapes and then into a wooden case. The Control box to be packed into a separate wooden case.

Installation Instructions:

1. Vertical use:   tripod telescopic mast can be installed on the ground, it can also be installed on the vehicle. No matter where installed, it must be perpendicular to the ground to ensure that the lift rod to use. If the lift lever is tilted, it will affect the rise and fall of the lift lever effect; if the lift rod severe or prolonged tilt, can also cause damage to the lift rod and dangerous.

2. Pull Fixed:  tripod telescopic mast needs to be installed on a fixed object, and it cannot shake, such as walls, car body, the base pile. At least two fixed points, one point in the lift club member, the distance between two points is father than 2/3 the height of the lift rod to secure the connection reliable.

warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.
